Rear Door: Components

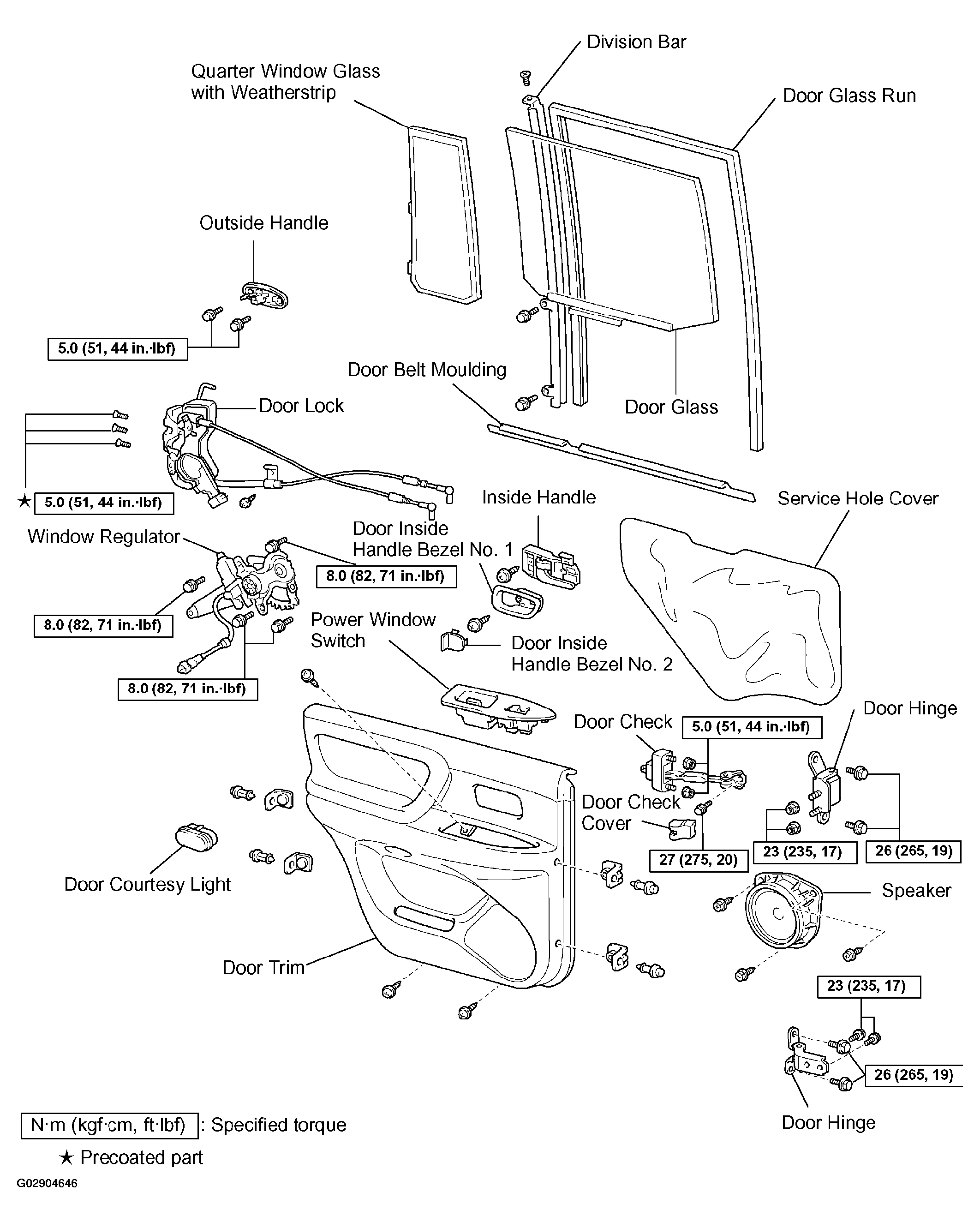

Fig 1: Locating Rear Door Components

G02904646

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
