Overhead Junction Block: Components

Fig 1: Locating Overhead J/B Components
G02827731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

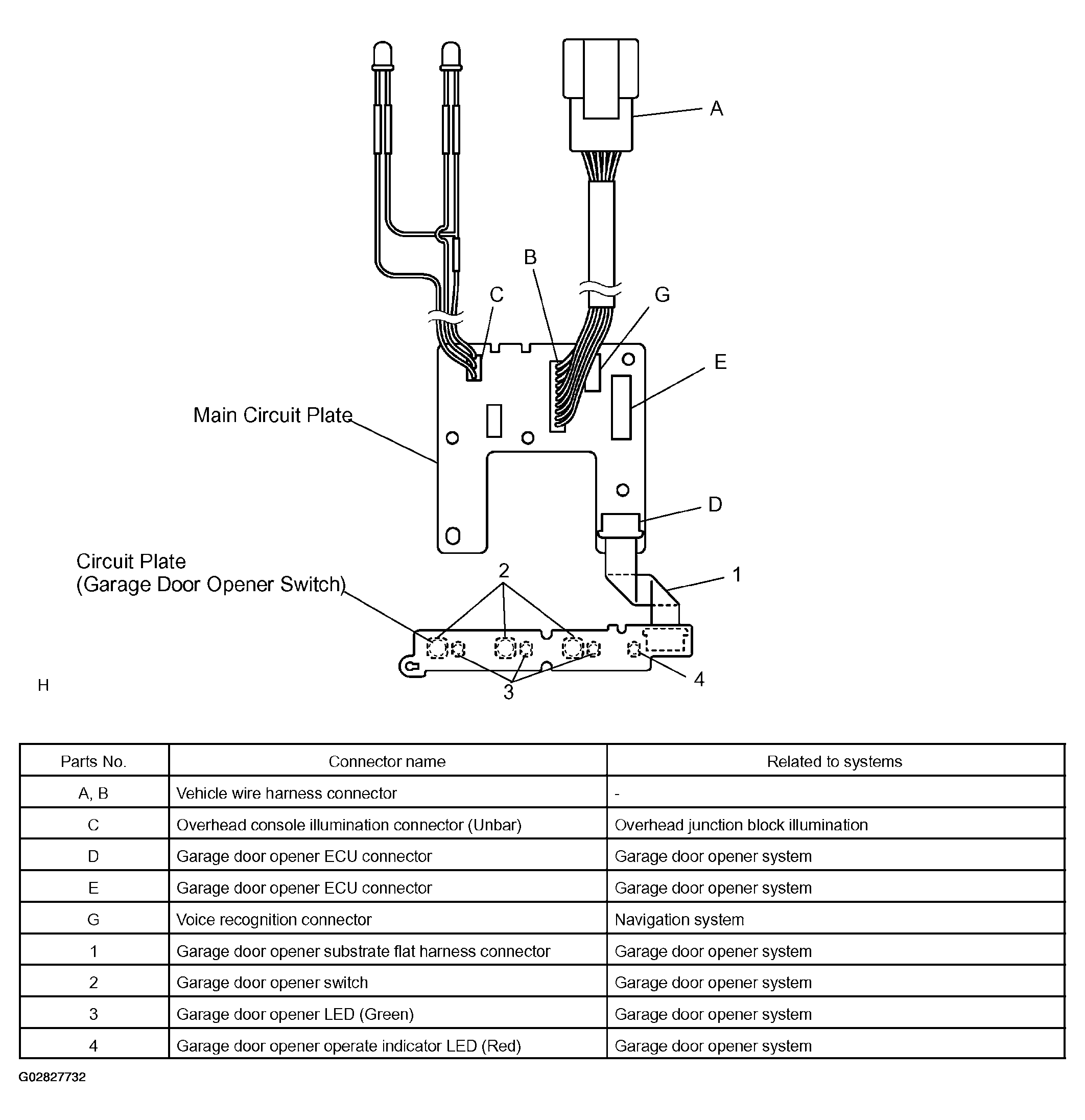

Fig 2: Identifying Main Circuit Plate
G02827732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
