Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|

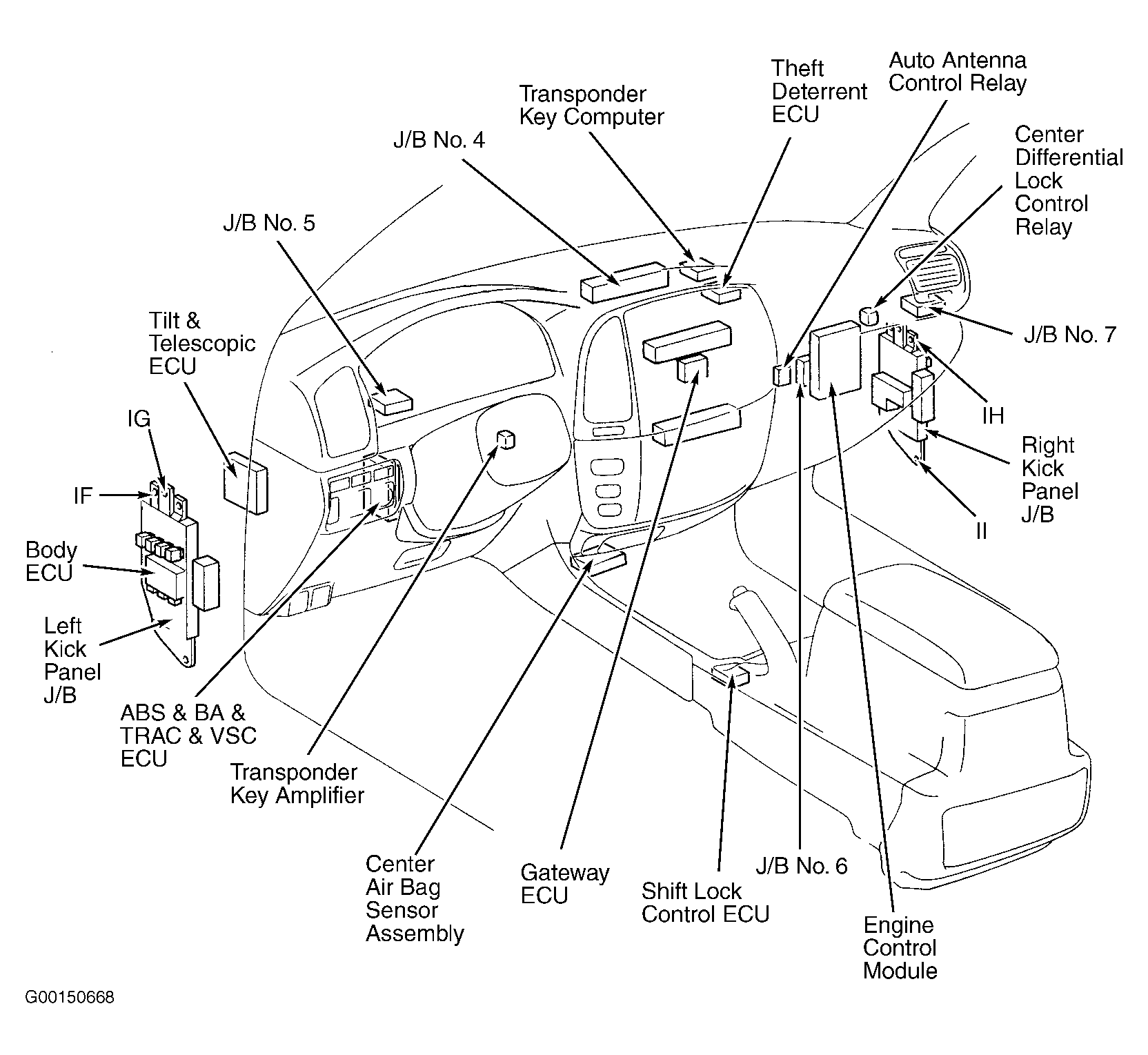

| ABS & BA & TRAC & VSC ECU | Behind left side of dash. See Figure. |

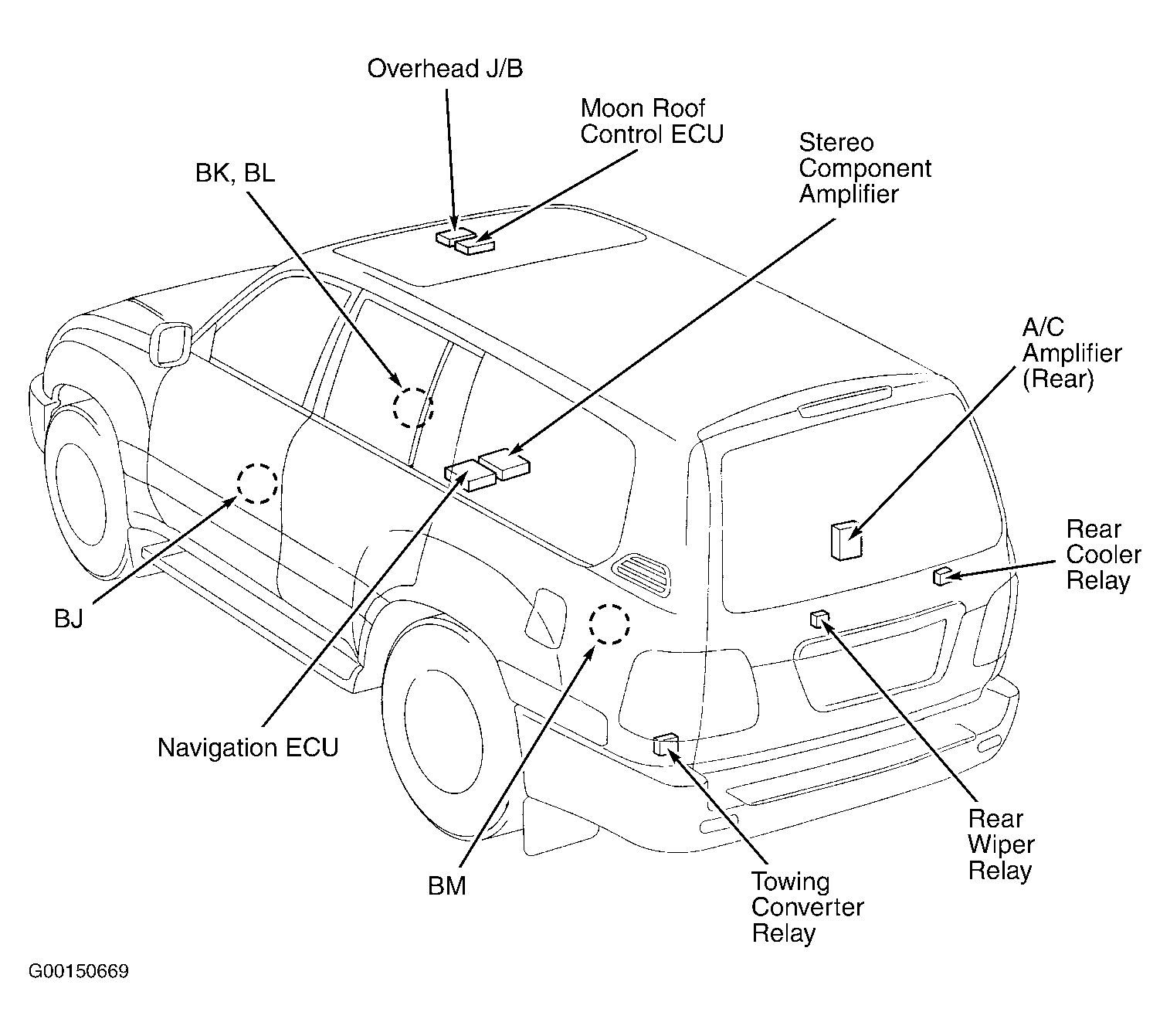

| A/C Amplifier (Rear) | On right side of cargo area. See Figure. |
| Blower Motor Controller | Behind right side of dash. |
| Body ECU | On left kick panel J/B. See Figure. |
| Center Air Bag Sensor Assembly | Under front of center console. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |
| Gateway ECU | Behind center of dash. See Figure. |
| Moon Roof Control ECU | On roof, in front of moon roof. See Figure. |
| Navigation ECU | Under passenger's front seat. See Figure. |
| Shift Lock Control ECU | Below center console. See Figure. |
| Stereo Component Amplifier | Under passenger's front seat. See Figure. |
| Theft Deterrent ECU | Behind center of dash. See Figure. |
| Tilt & Telescopic ECU | Behind left side of dash. See Figure. |
| Transponder Key Amplifier | In steering column. See Figure. |
