Engine Unit: Components

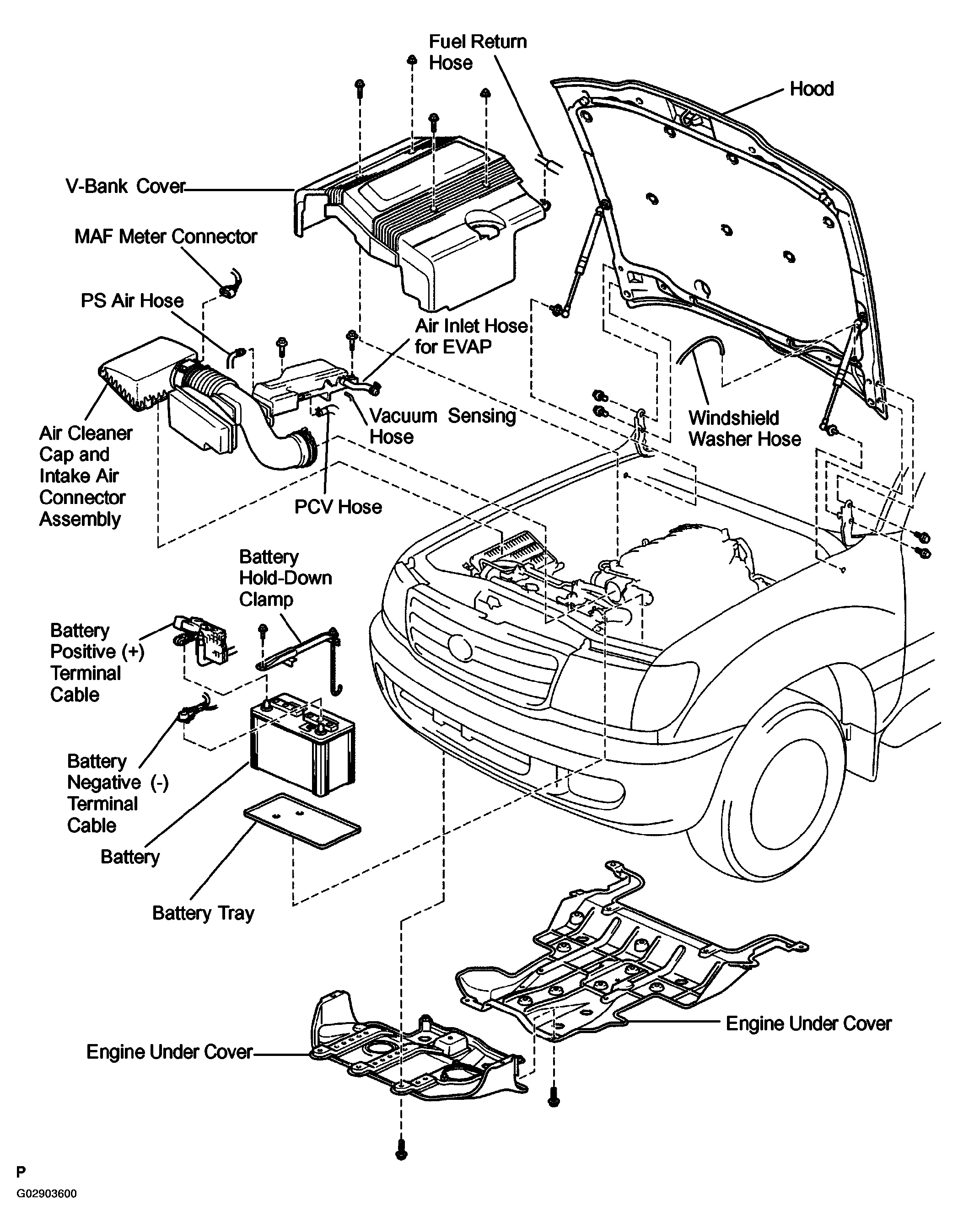

Fig 1: Exploded View Of Engine Unit Components (1 Of 7)
G02903600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

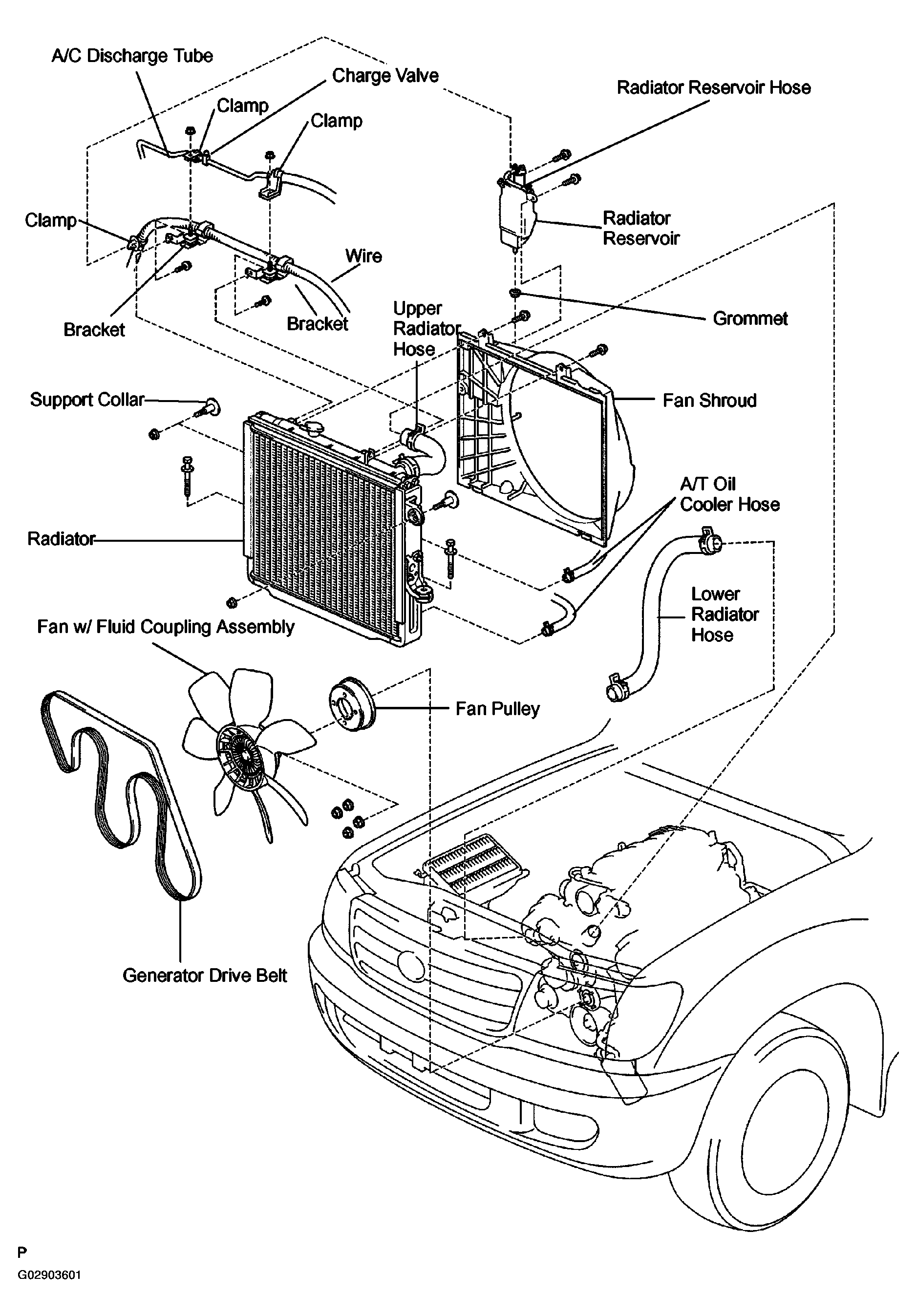

Fig 2: Exploded View Of Engine Unit Components (2 Of 7)
G02903601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

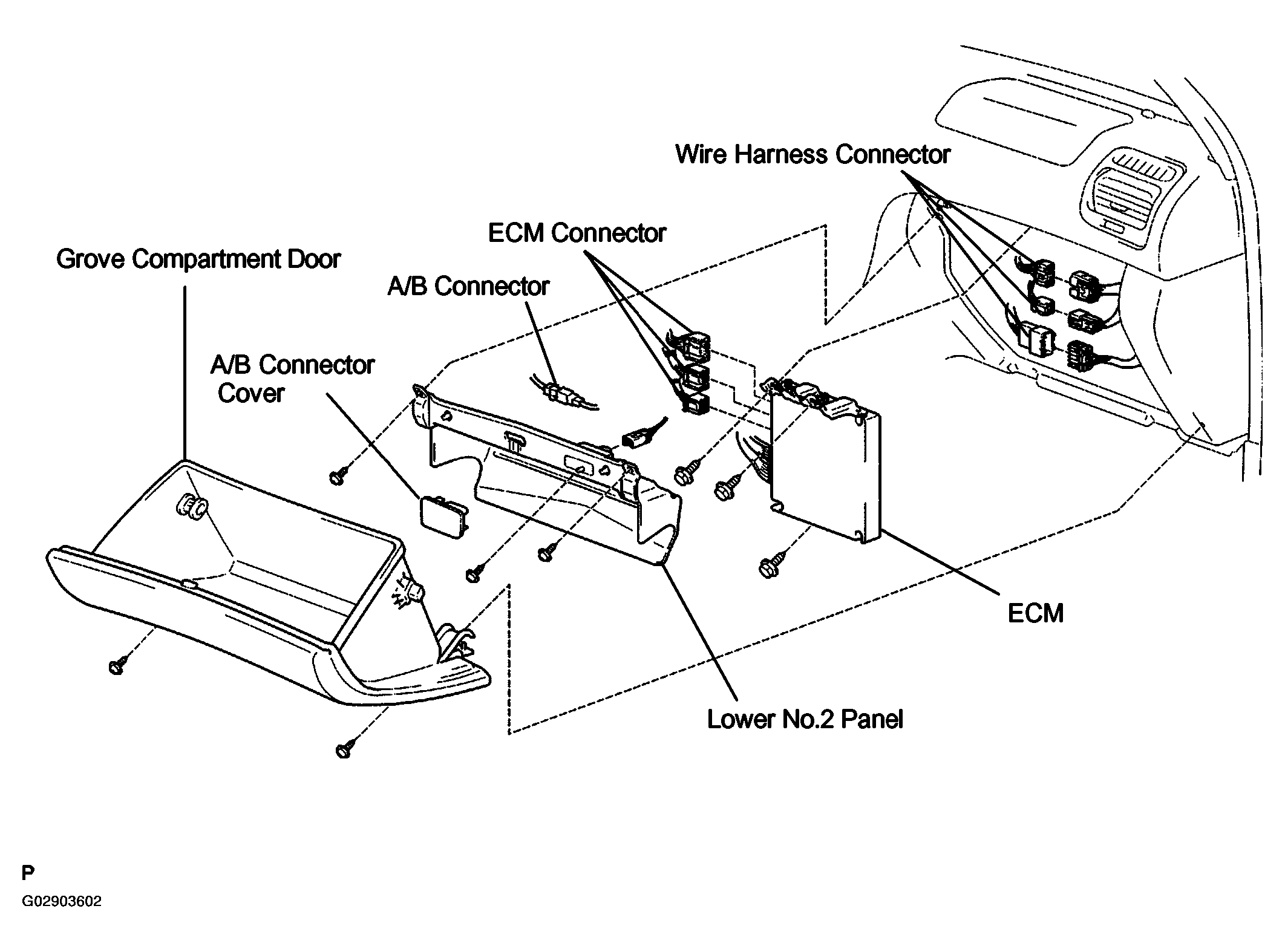

Fig 3: Exploded View Of Engine Unit Components (3 Of 7)
G02903602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Exploded View Of Engine Unit Components (4 Of 7)
G02903603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Exploded View Of Engine Unit Components (5 Of 7)
G02903604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

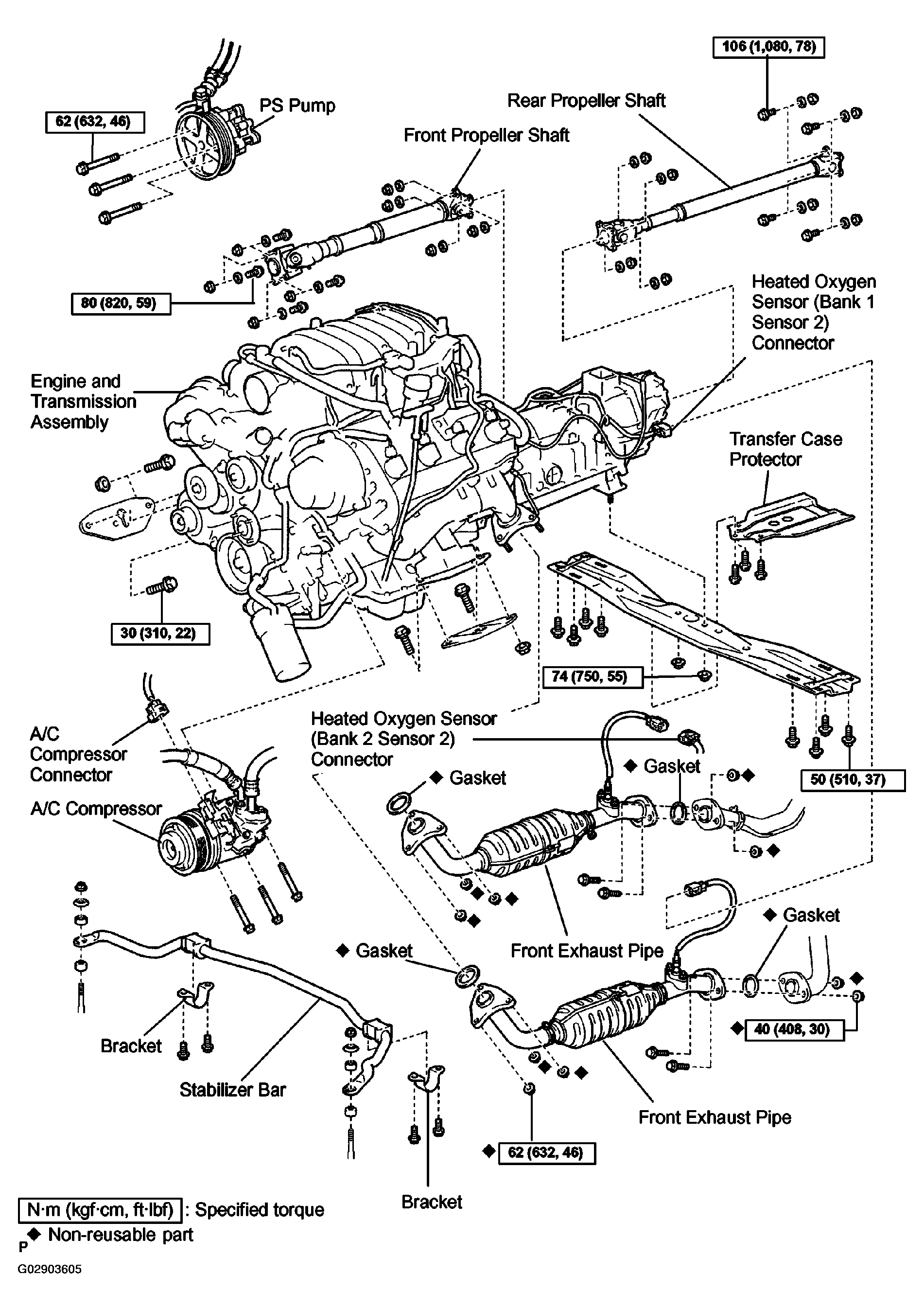

Fig 6: Exploded View Of Engine Unit Components (6 Of 7)
G02903605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

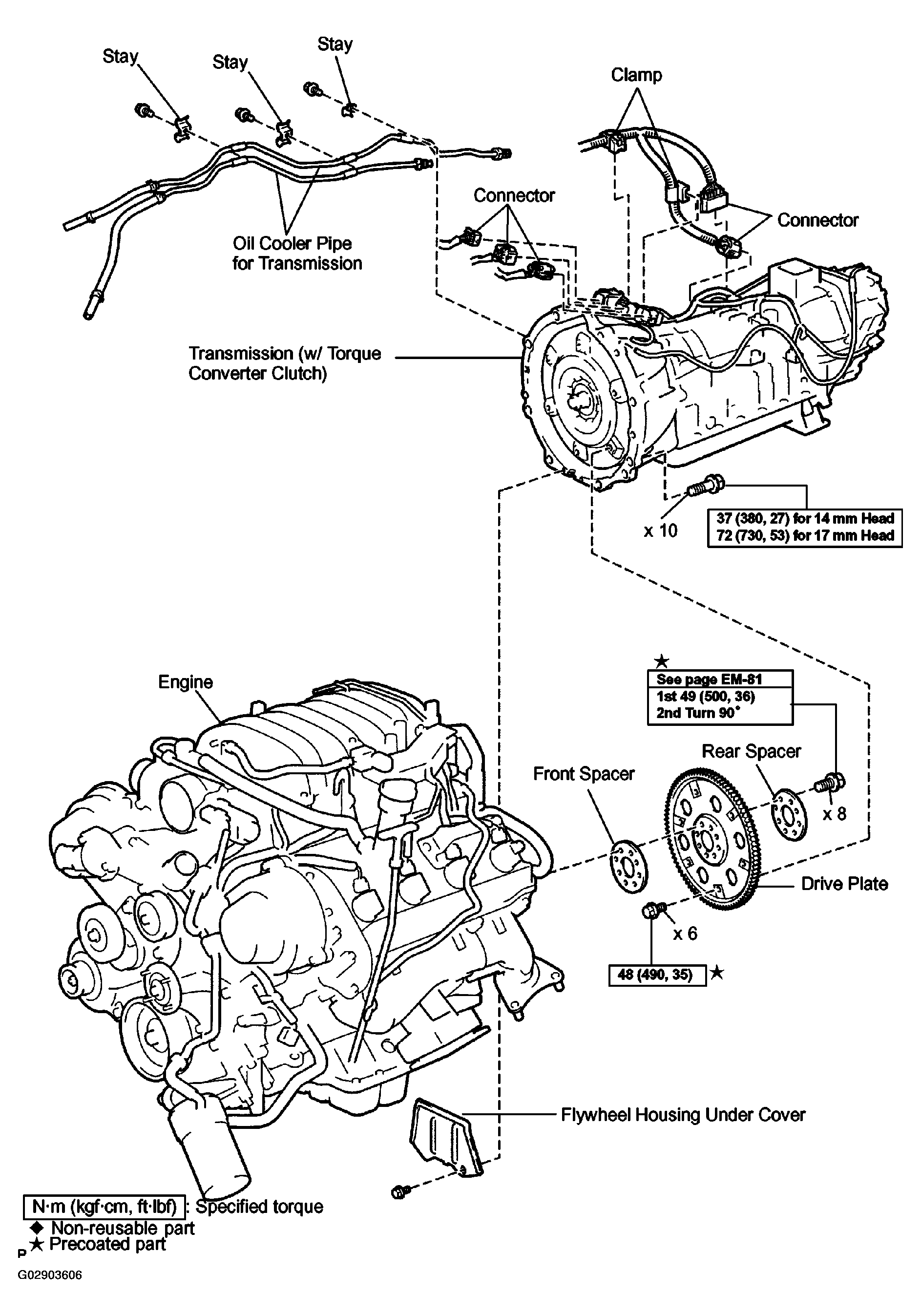

Fig 7: Exploded View Of Engine Unit Components (7 Of 7)
G02903606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
