Land Cruiser

For engine control module power source circuit inspection, see Fig 1-Fig 5 . For circuit identification, see ENGINE PERFORMANCE in appropriate SYSTEM WIRING DIAGRAMS article in ELECTRICAL. Before replacing ECM, check ECM connectors and ground circuits. See ENGINE CONTROL MODULE POWER & GROUND CIRCUITS  under COMPUTERIZED ENGINE CONTROLS. To check ignition switch, see appropriate STEERING COLUMN SWITCHES article in ACCESSORIES & EQUIPMENT. To check EFI main relay, see EFI MAIN RELAY  under MODULES, MOTORS, RELAYS & SOLENOIDS.

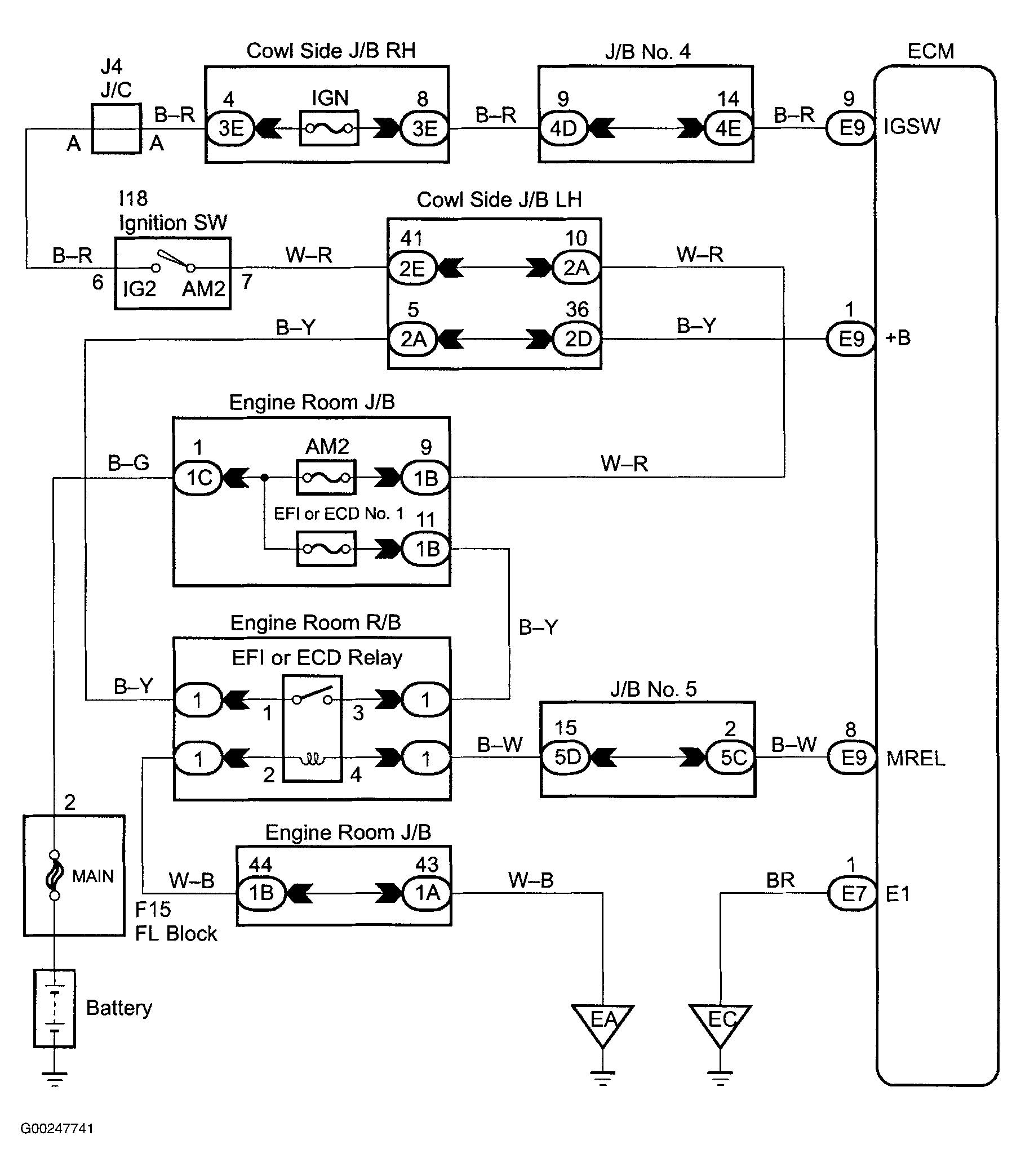

Fig 1: Engine Control Module Power Source Wiring Diagram (Land Cruiser)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

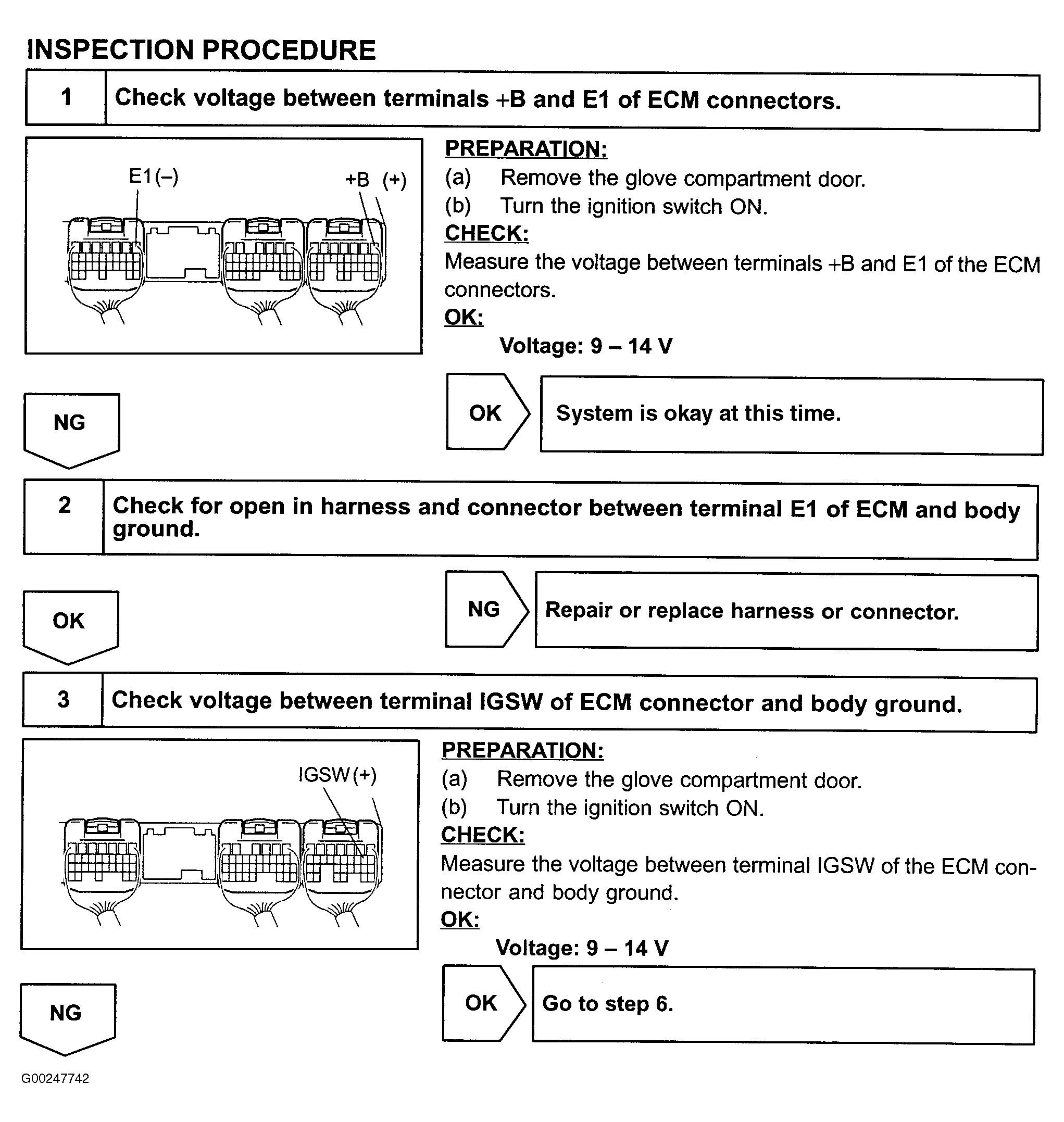

Fig 2: Engine Control Module Power Source Circuit Inspection - Steps 1-3 (Land Cruiser)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

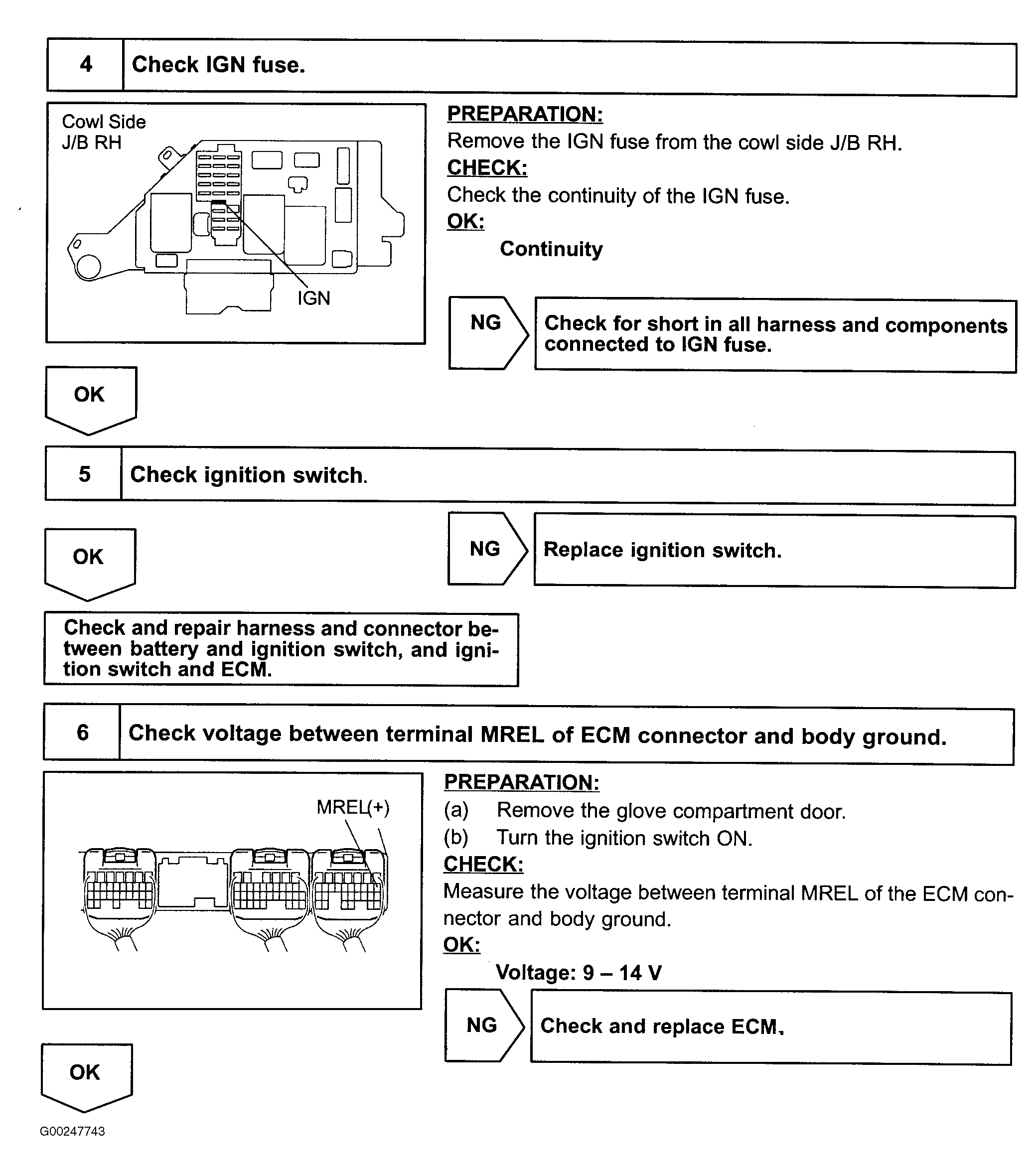

Fig 3: Engine Control Module Power Source Circuit Inspection - Steps 4-6 (Land Cruiser)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

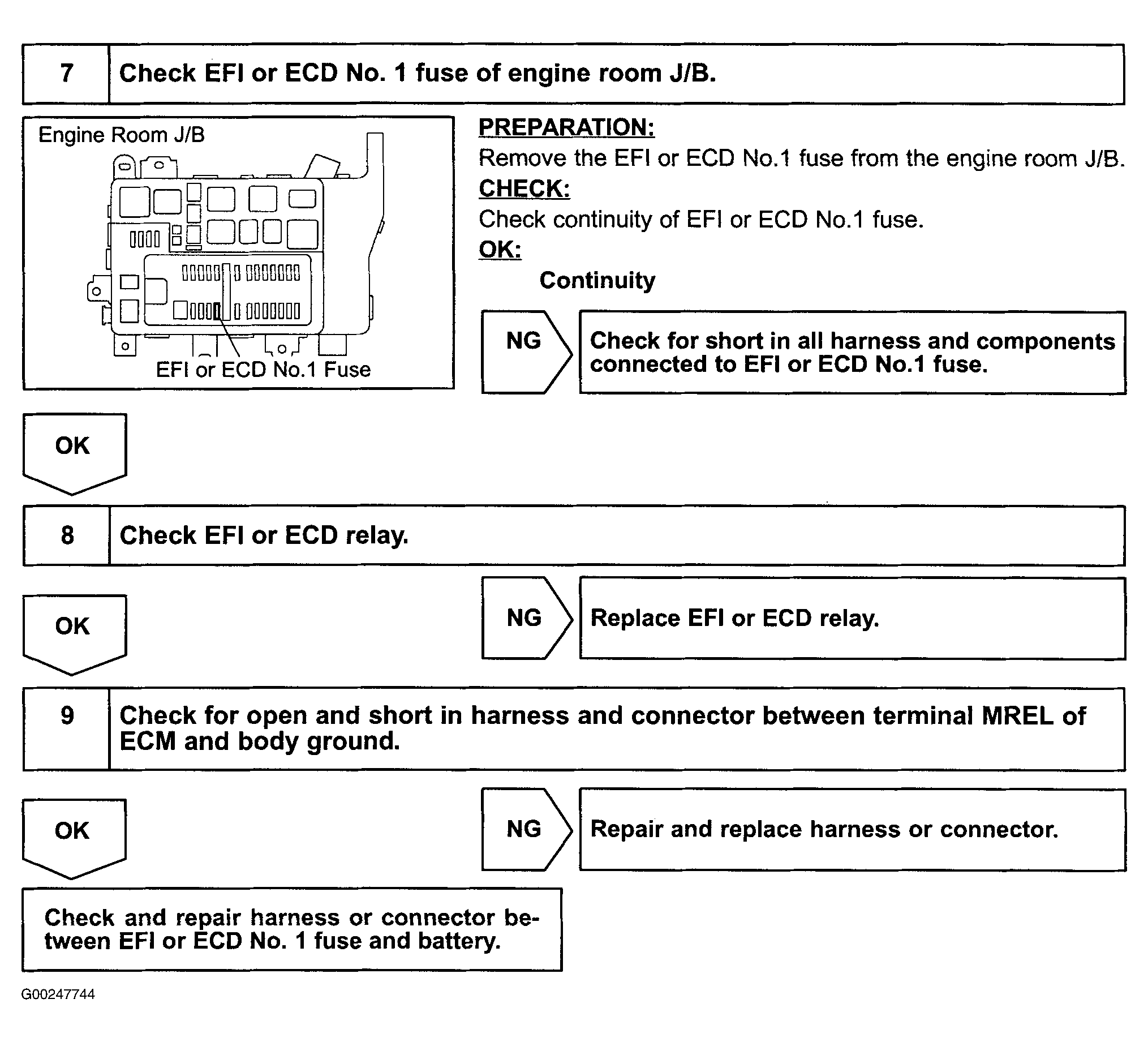

Fig 4: Engine Control Module Power Source Circuit Inspection - Steps 7-9 (Land Cruiser)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Engine Control Module Electrical Connector Terminals (Land Cruiser)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
