Section 363 (Stop Light System): Inspection

WARNING: This page is about a different car, the 2004 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT STOP LIGHT SWITCH CONTINUITY

STOP LIGHT SWITCH CONTINUITY

Switch position	Tester connection	Specified condition
Switch pin free (Pedal depressed)	1-2	Continuity
Switch pin pushed in (Pedal released)	-	No continuity
Switch pin free (Pedal depressed)	-	No continuity
Switch pin pushed in (Pedal released)	3-4	Continuity

If continuity is not as specified, replace the switch.

Fig 1: Checking Continuity Between Terminals

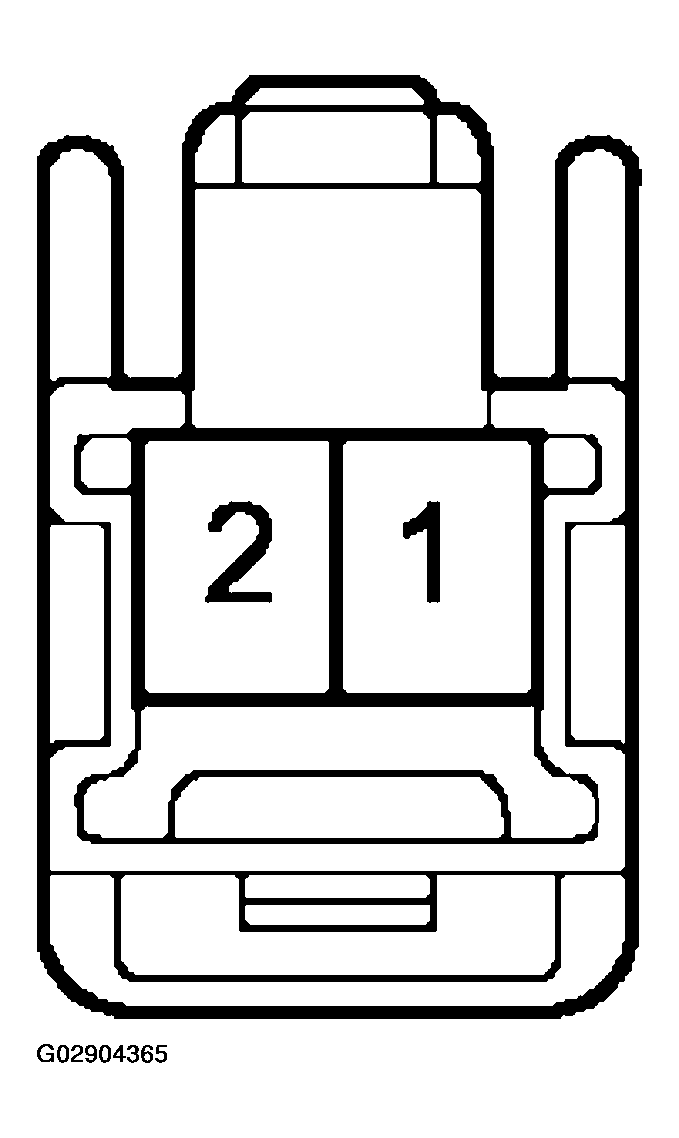

INSPECT HI-MOUNTED STOP LIGHT CONTINUITY
Using an ohmmeter, check that continuity exists between terminals.

If continuity is not as specified, replace the light assembly.
