Section 527 (Starting System): Starter: Components

WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

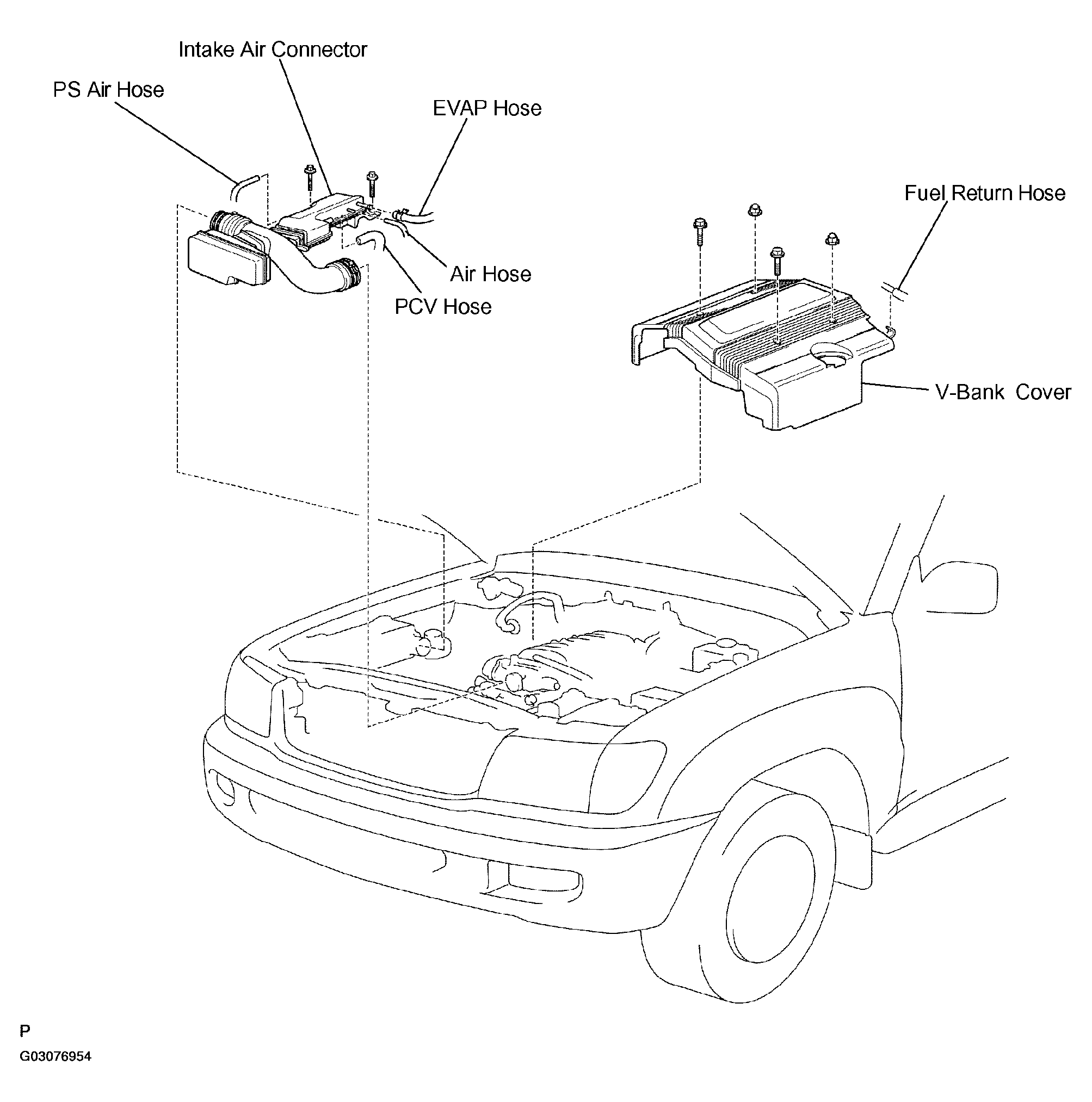

Fig 1: Accessing Starter (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

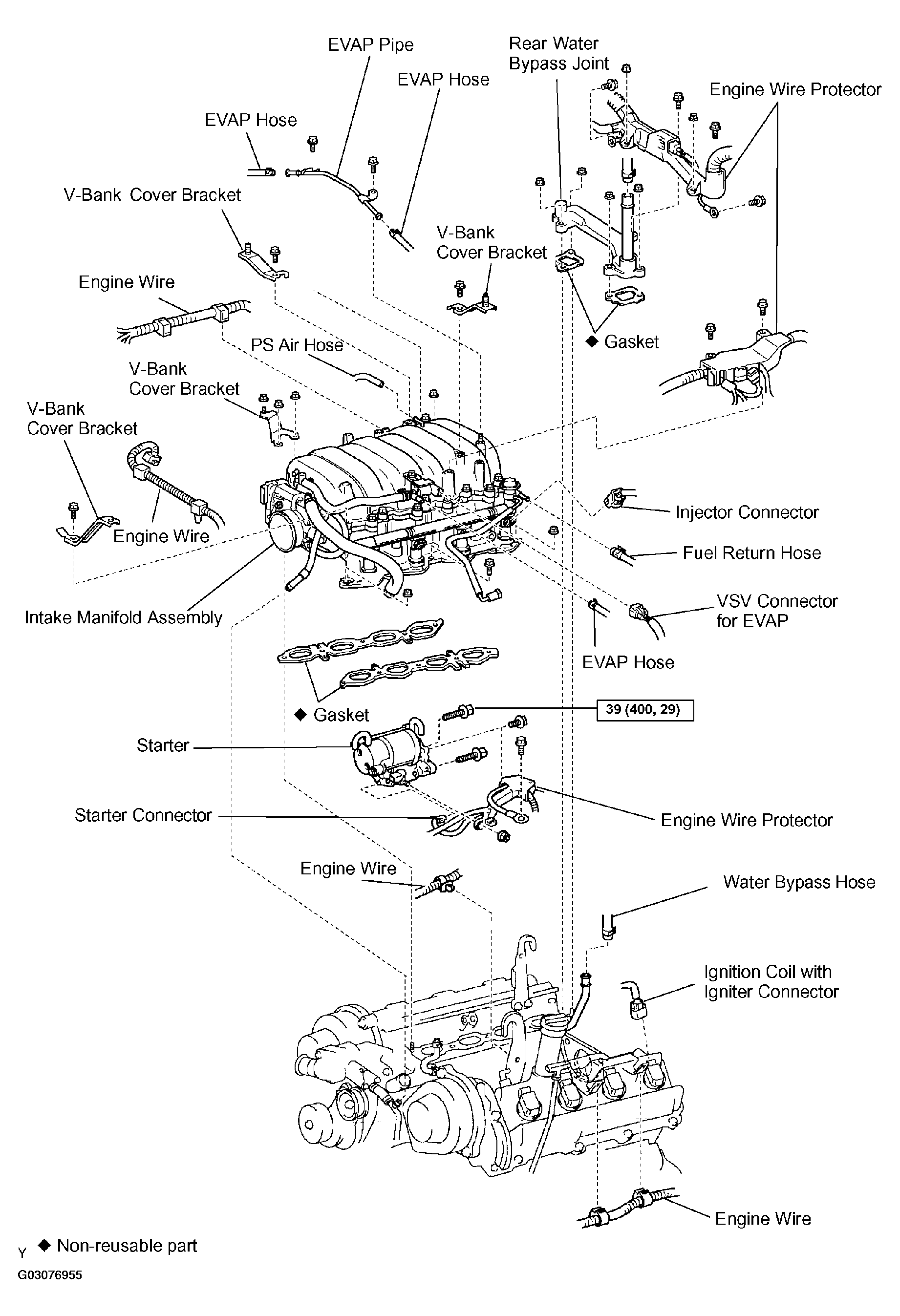

Fig 2: Accessing Starter (2 Of 2) & Torque Specifications

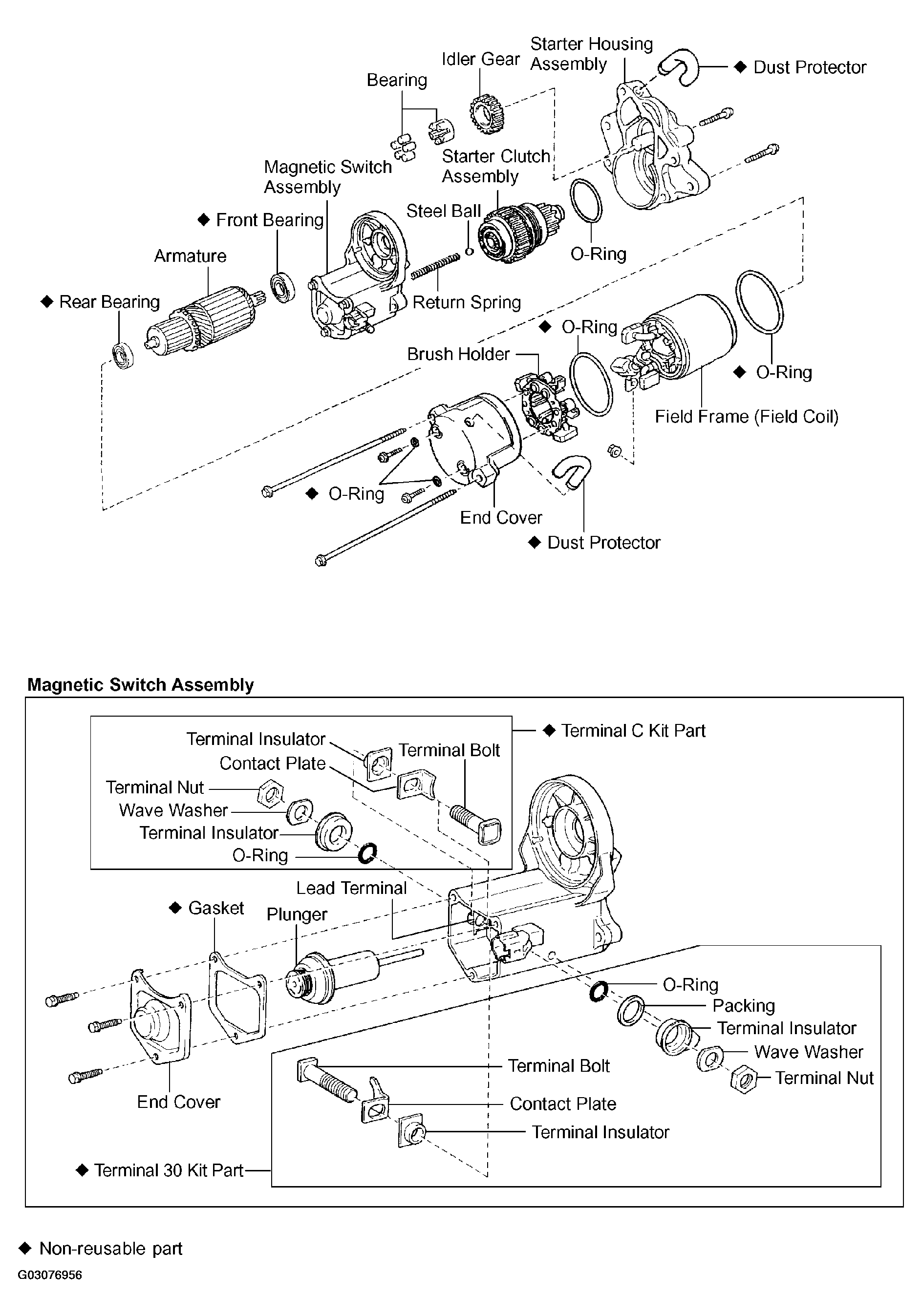

Fig 3: Exploded View Of Starter
