Seat Belt: Components

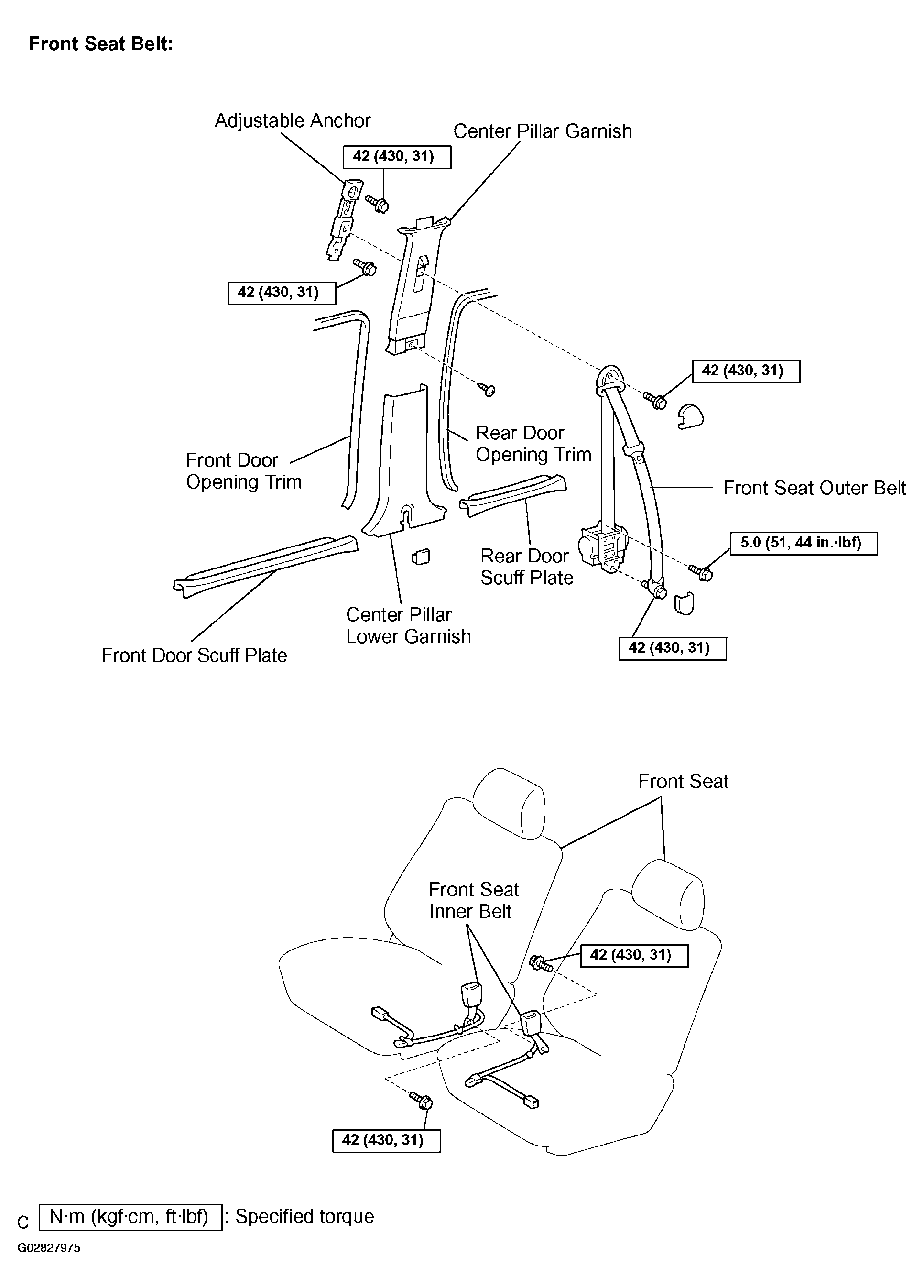

Fig 1: Exploded View Of Front Seat Belt Components
G02827975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

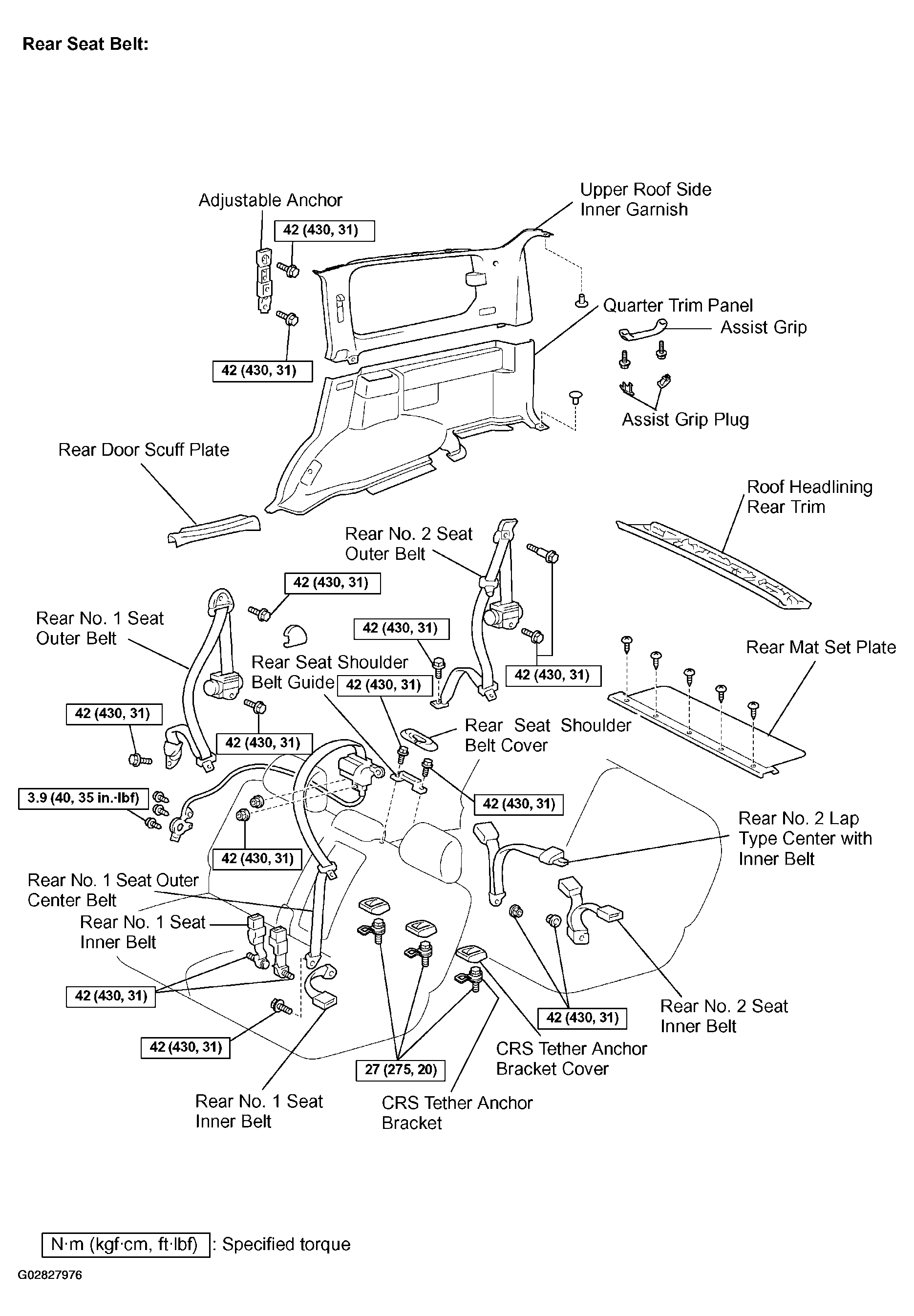

Fig 2: Exploded View Of Rear Seat Belt Components
G02827976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
