Rear Brake Speed Sensor: Components

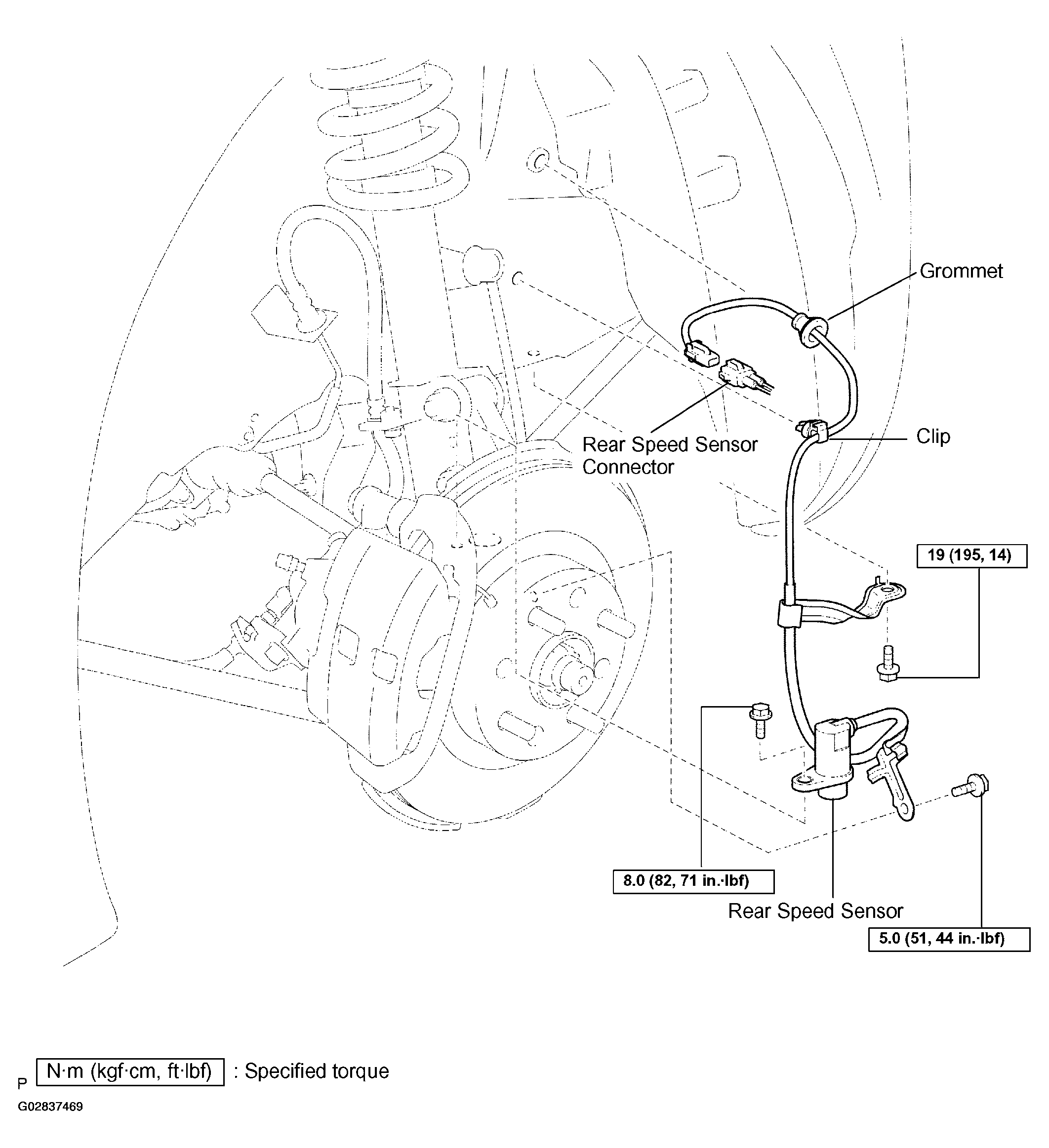

Fig 1: Exploded View Of Rear Speed Sensor Components
G02837469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
