How To Proceed With Troubleshooting

Troubleshoot in accordances with the procedure on the following pages.

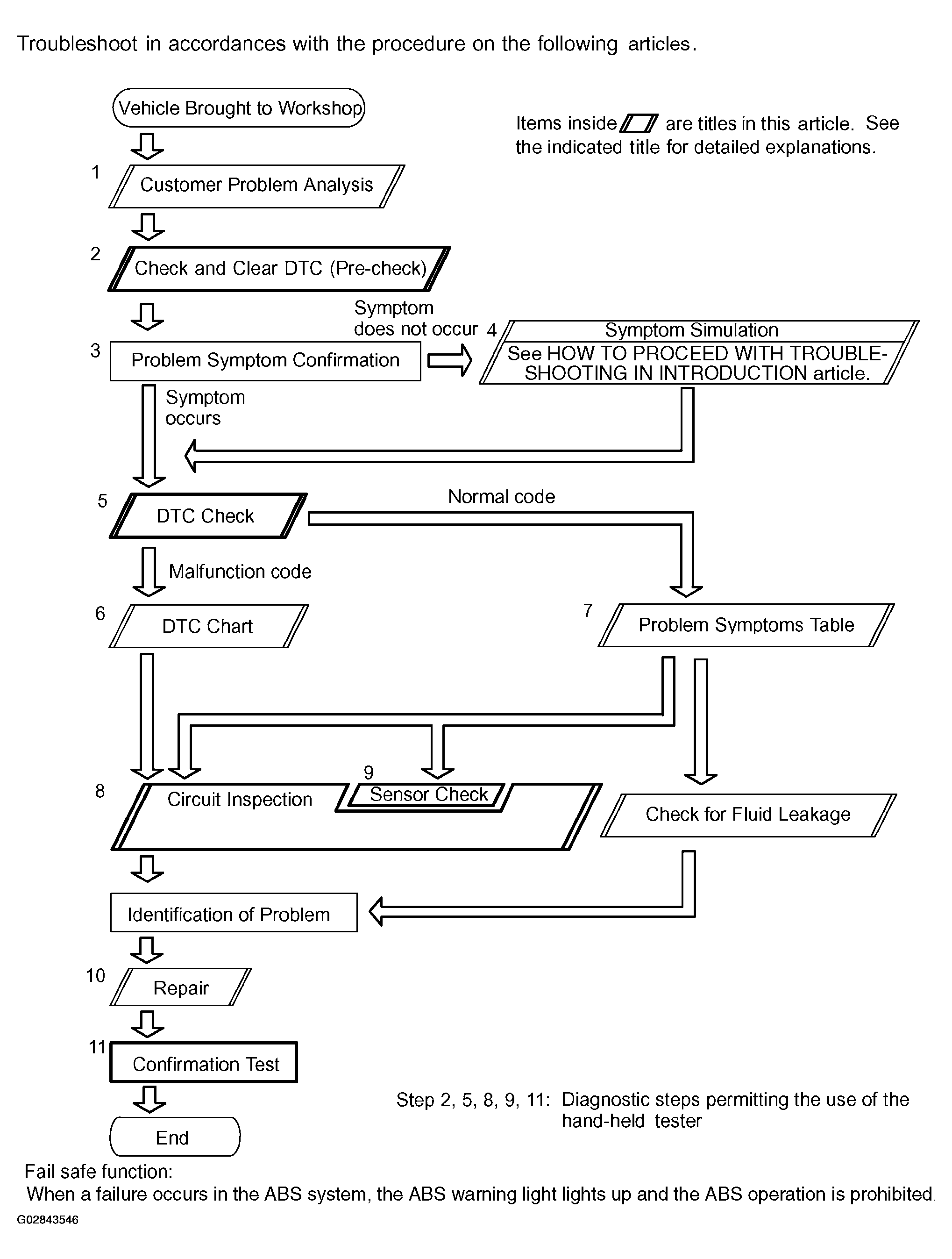

Fig 1: Troubleshooting Chart
G02843546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fail safe function:

When a failure occurs in the ABS system, the ABS warning light up and the ABS operation is prohibited.
