Fuel Tank
Fuel Tank Assy (4WD) Part 1:

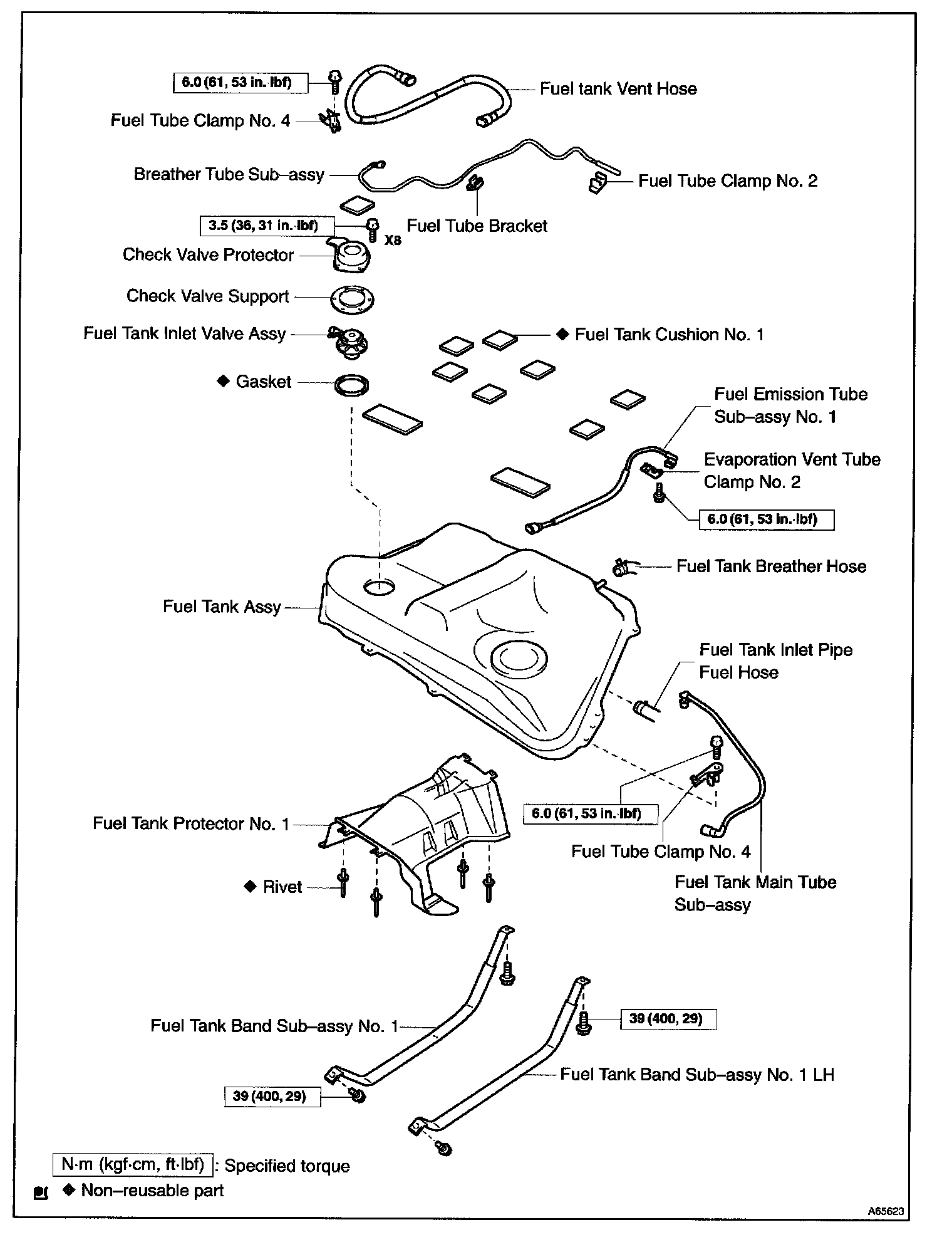

Fuel Tank Assy (4WD) Part 2:

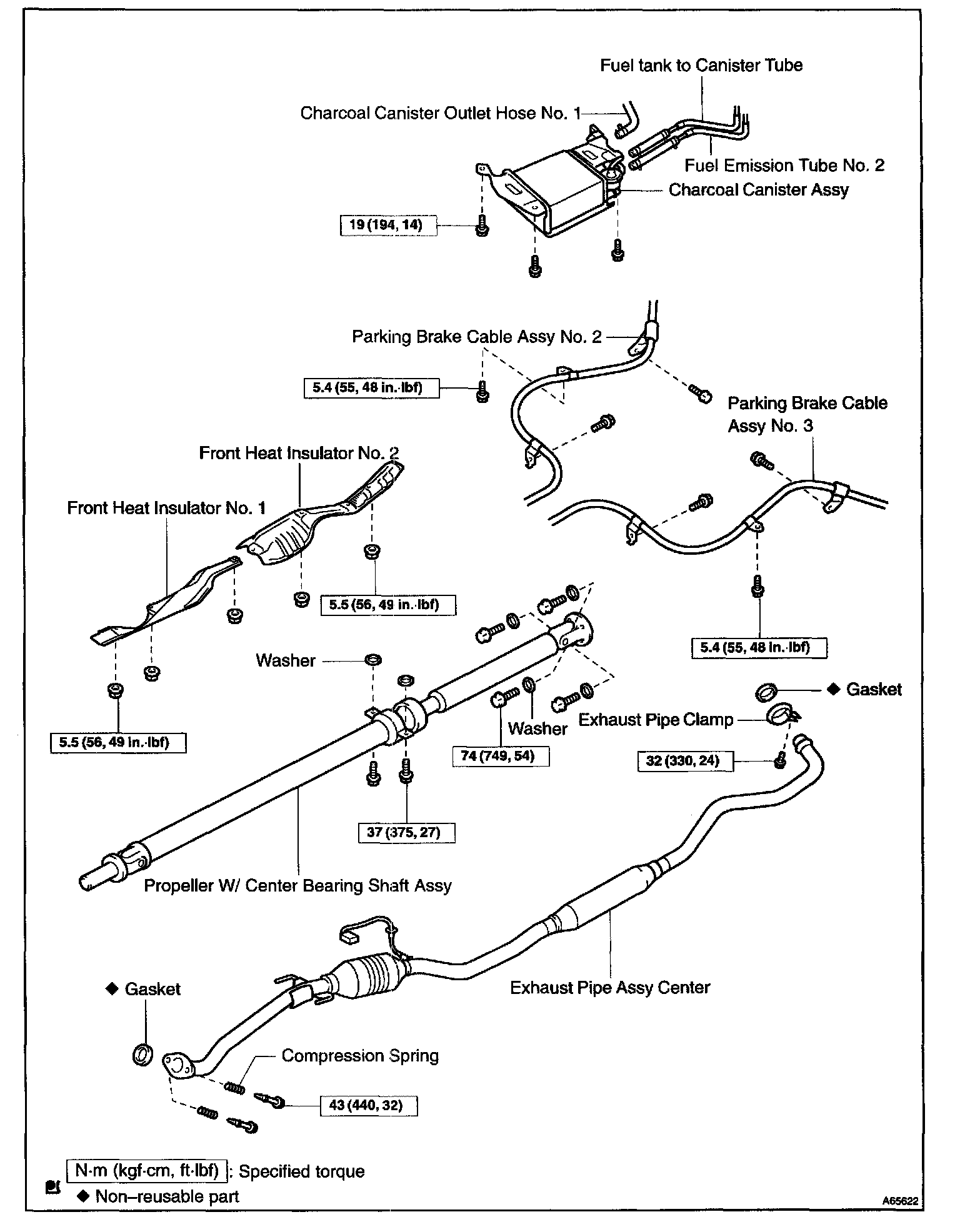

Fuel Tank Assy (4WD) Part 3:

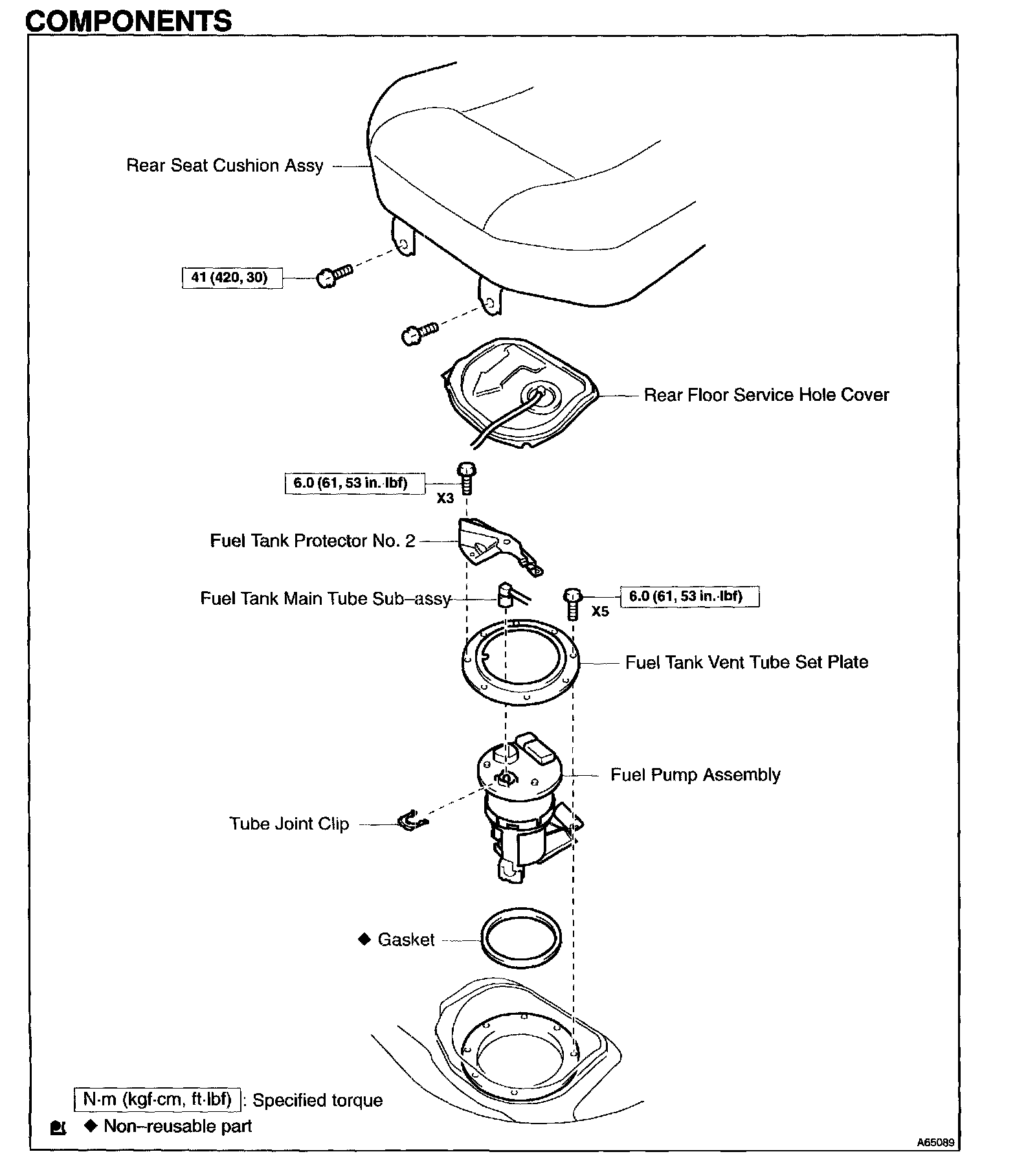

Fuel Tank Assy (4WD) Part 4:
