Sliding Roof: Components

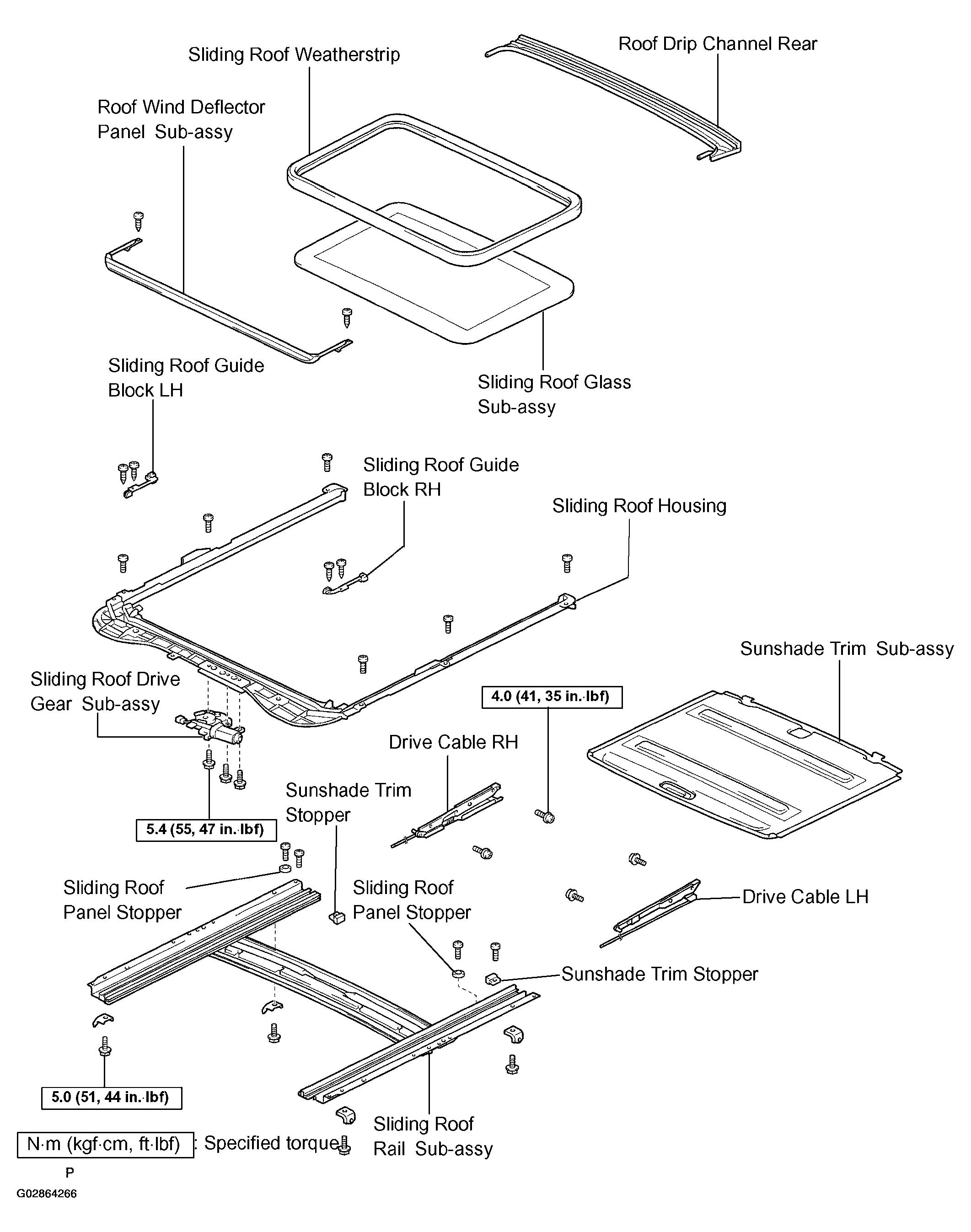

Fig 1: Identifying Sliding Roof Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
