Cigarette Lighter Assembly: Replacement

NOTE: COMPONENTS: See REPLACEMENT )
  1. REMOVE FLOOR SHIFT SHIFT LEVER KNOB SUB-ASSY (M/T TRANSAXLE) (See  REPLACEMENT  )
  2. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CTR (See  REPLACEMENT  )
  3. REMOVE CIGARETTE LIGHTER COVER
    1. Release the 2 fitting claws, remove the cigarette lighter cover.

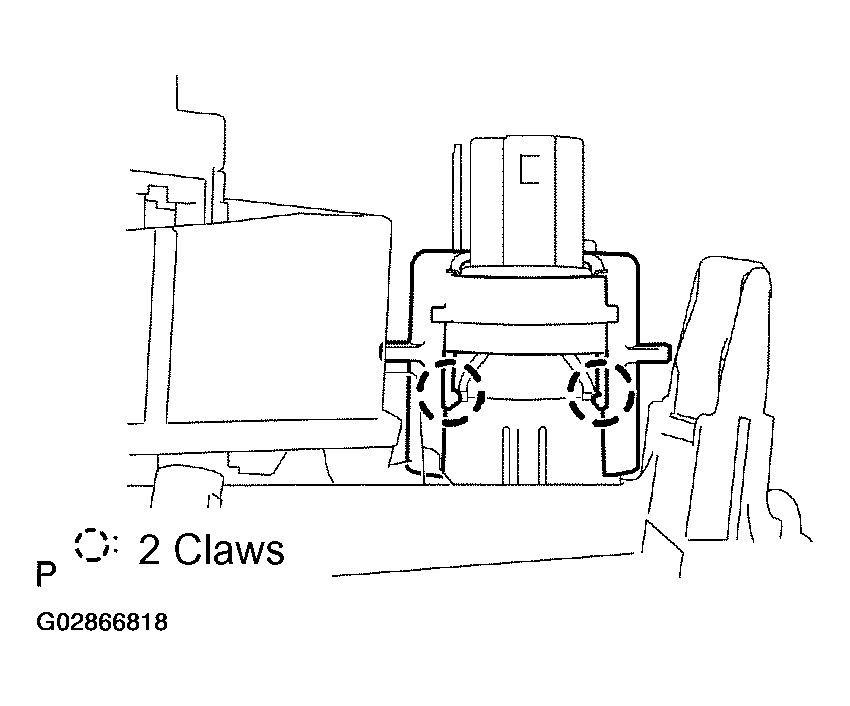

    Fig 1: Releasing Fitting Claws & Cigarette Lighter Cover
    G02866818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE CIGARETTE LIGHTER ASSY
    1. Remove the cigarette lighter knob and element assy.
    2. Turn the socket in the circumference direction as shown in the illustration, disengage the claw between the socket and the cigarette lighter bezel stay, and push out the socket to the room side.

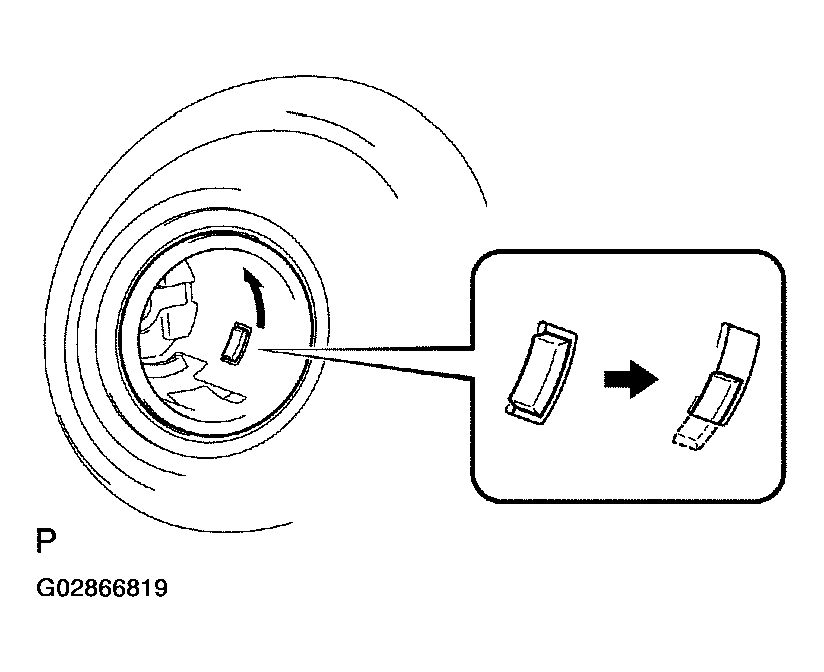

      Fig 2: Turning Socket To Remove
      G02866819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Align the socket with the notch on the cigarette lighter bezel stay, remove the cigarette lighter assy to the room side.
  5. INSTALL CIGARETTE LIGHTER ASSY
    1. Align the socket with the notch on the cigarette lighter bezel stay, push the cigarette lighter assy into as hard as possible and install it.
    2. Install the cigarette lighter knob and element assy.
