Partial Engine Assembly - 1ZZ-FE: Components

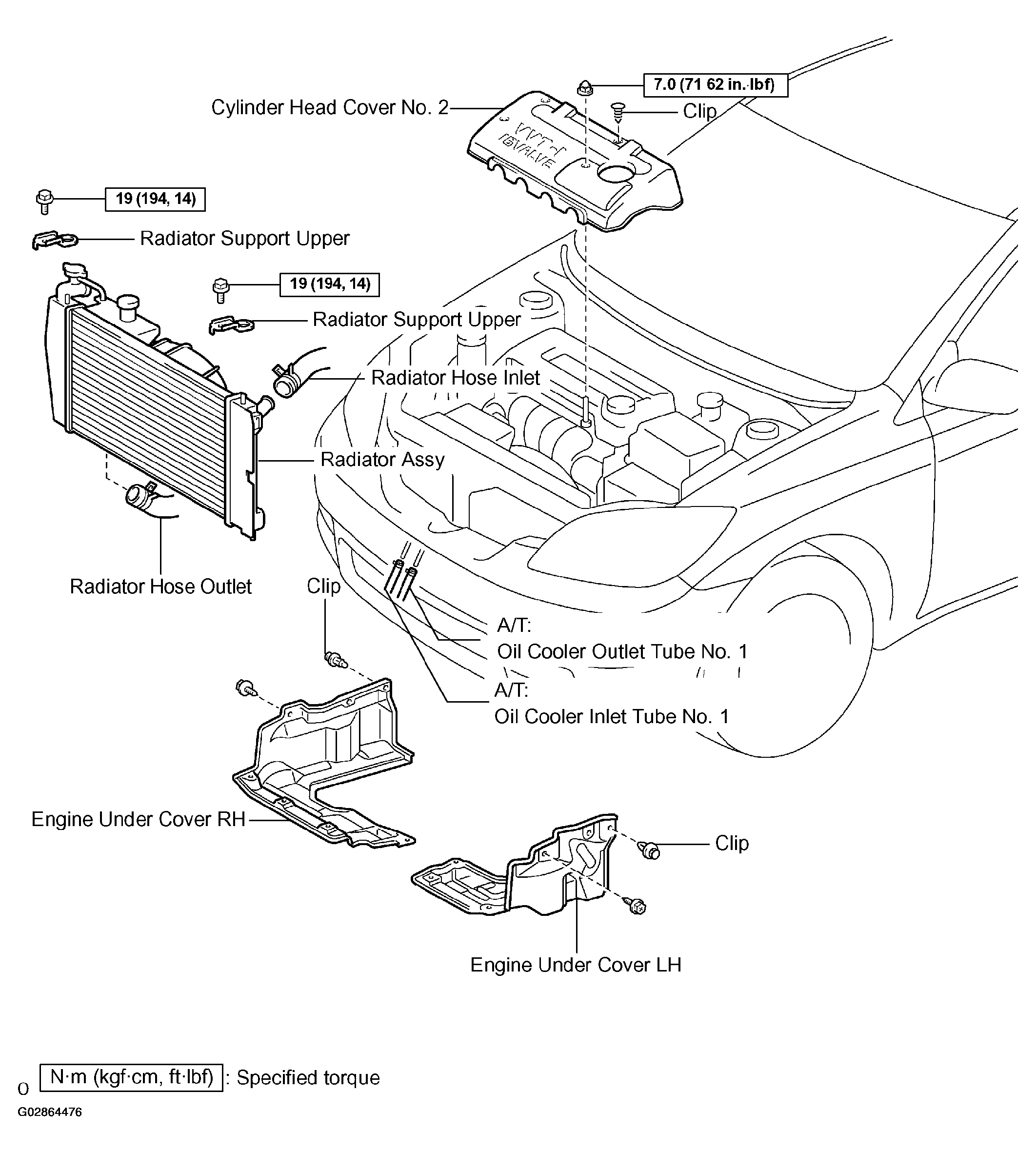

Fig 1: Exploded View Of Radiator Parts
G02864476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

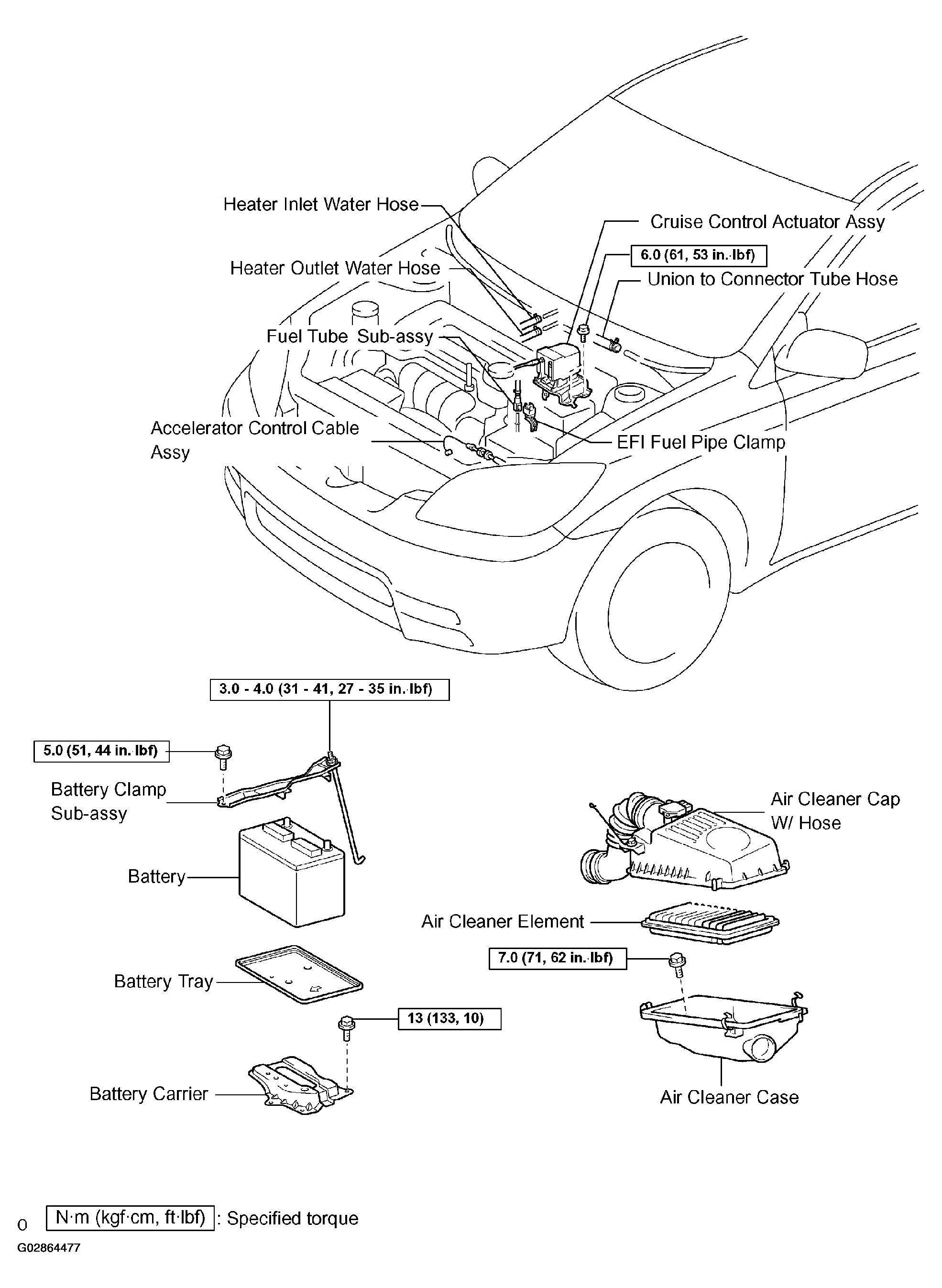

Fig 2: Locating Heater Parts
G02864477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

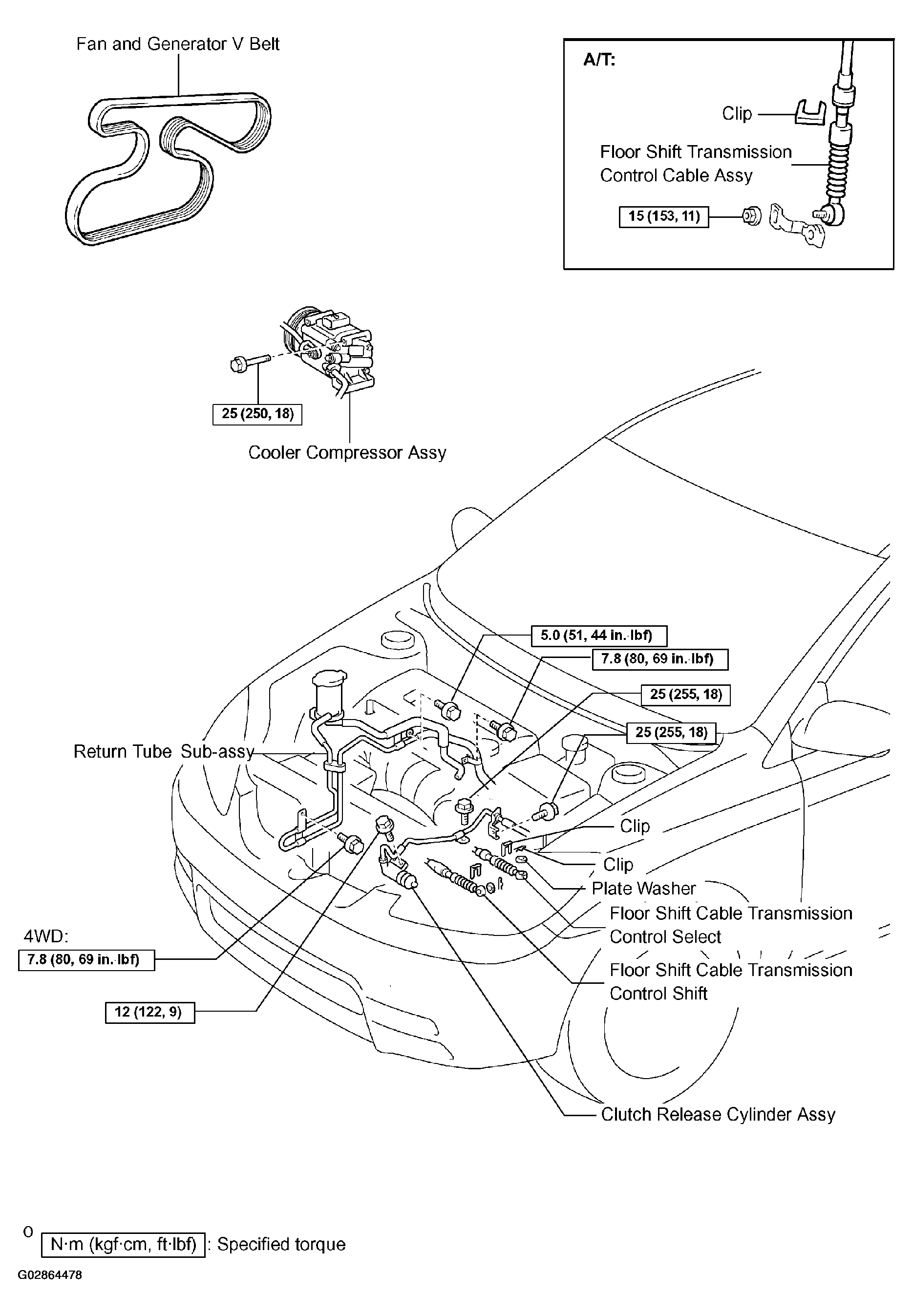

Fig 3: Removing Engine Parts
G02864478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

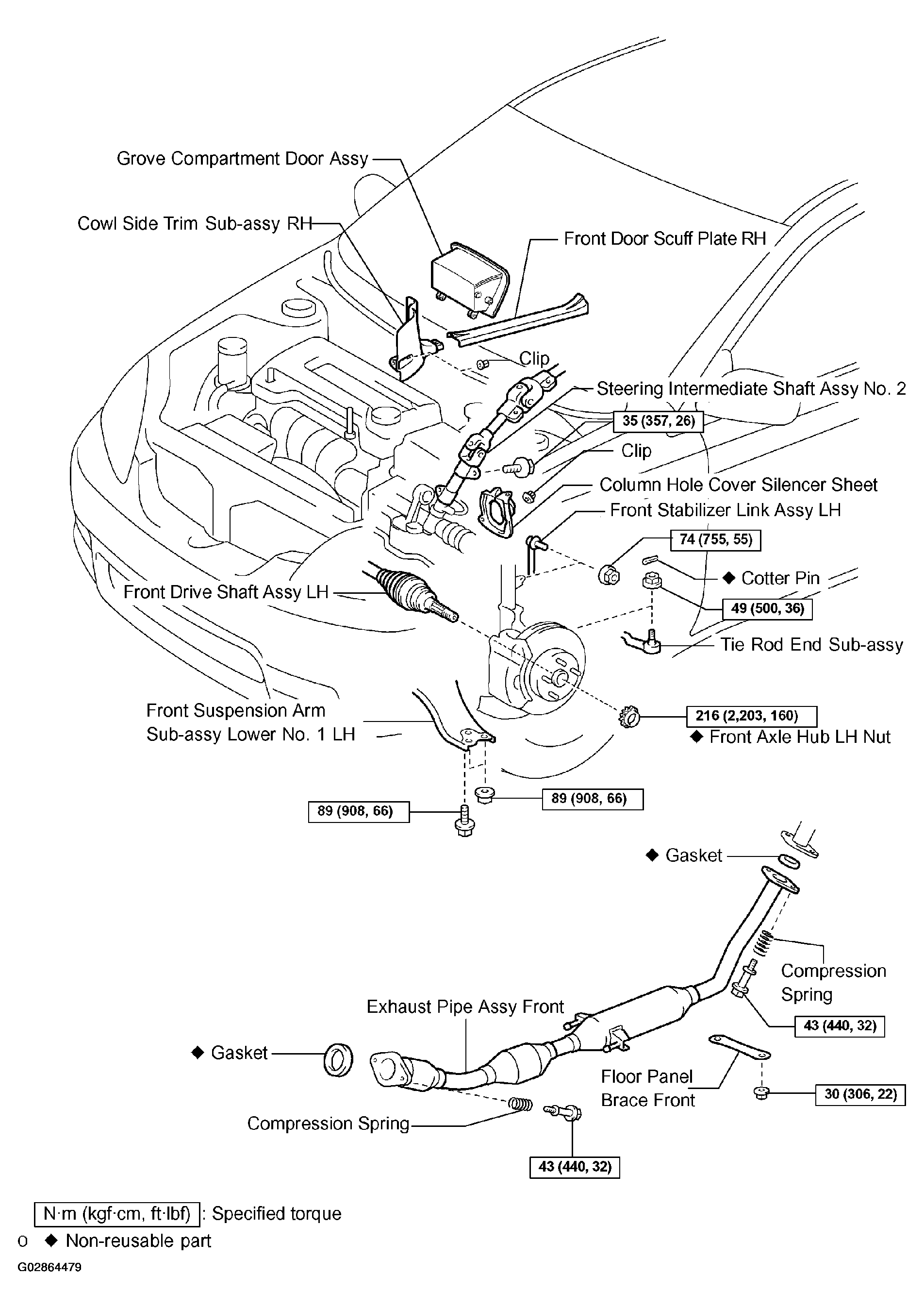

Fig 4: Assembling Exhaust Parts
G02864479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

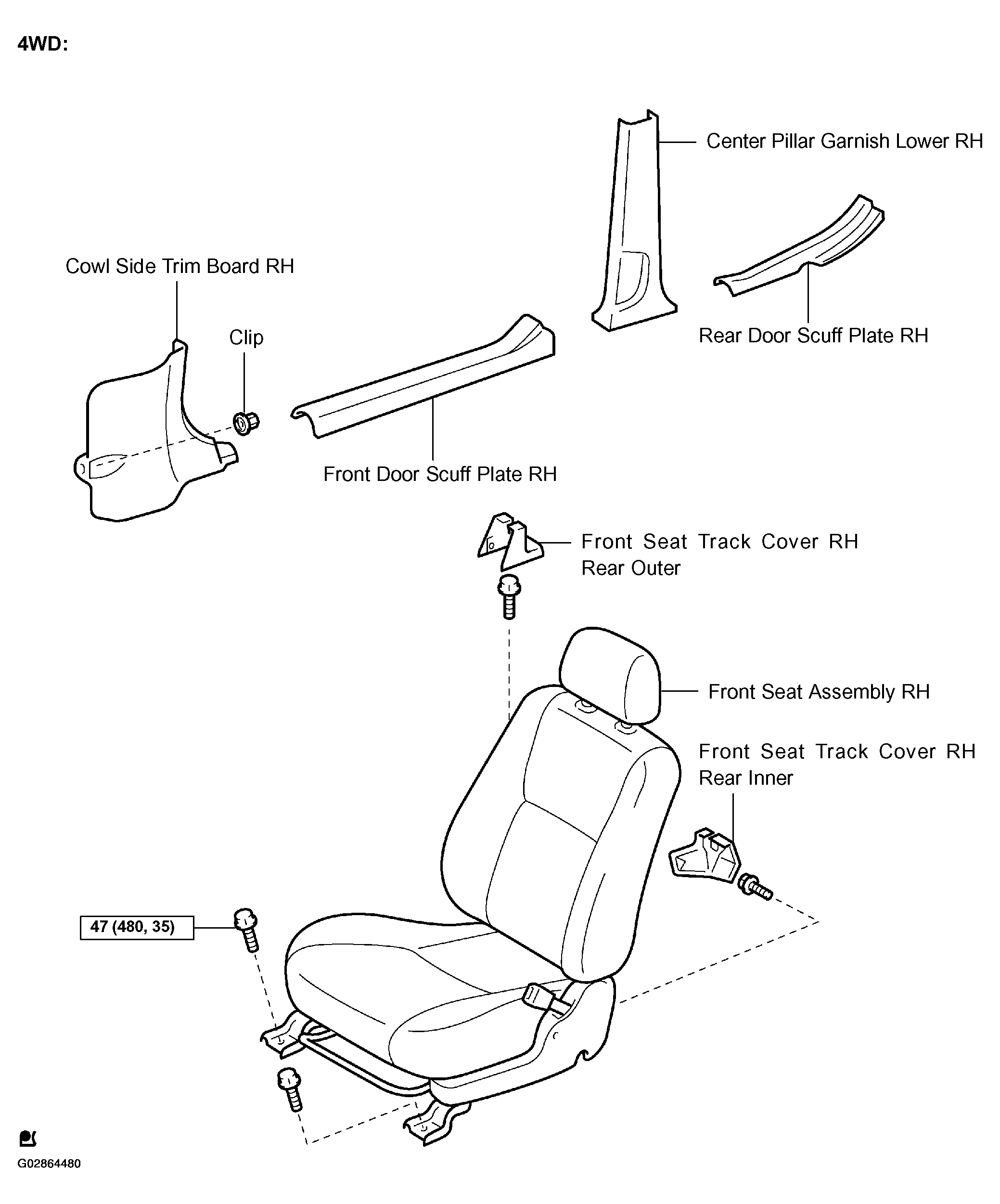

Fig 5: Disassembling Front Seat
G02864480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

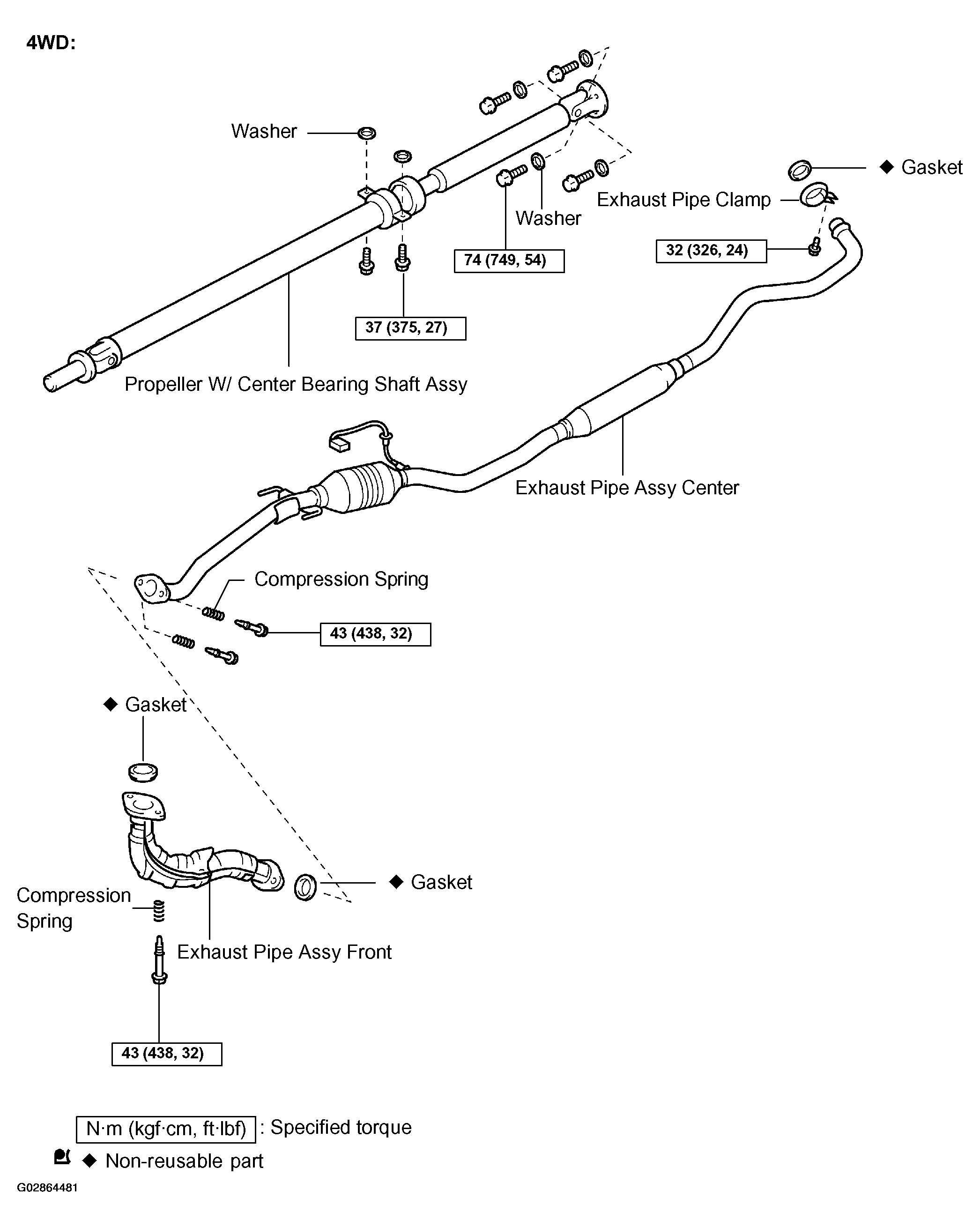

Fig 6: Exploded View Of Exhaust Pipe
G02864481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

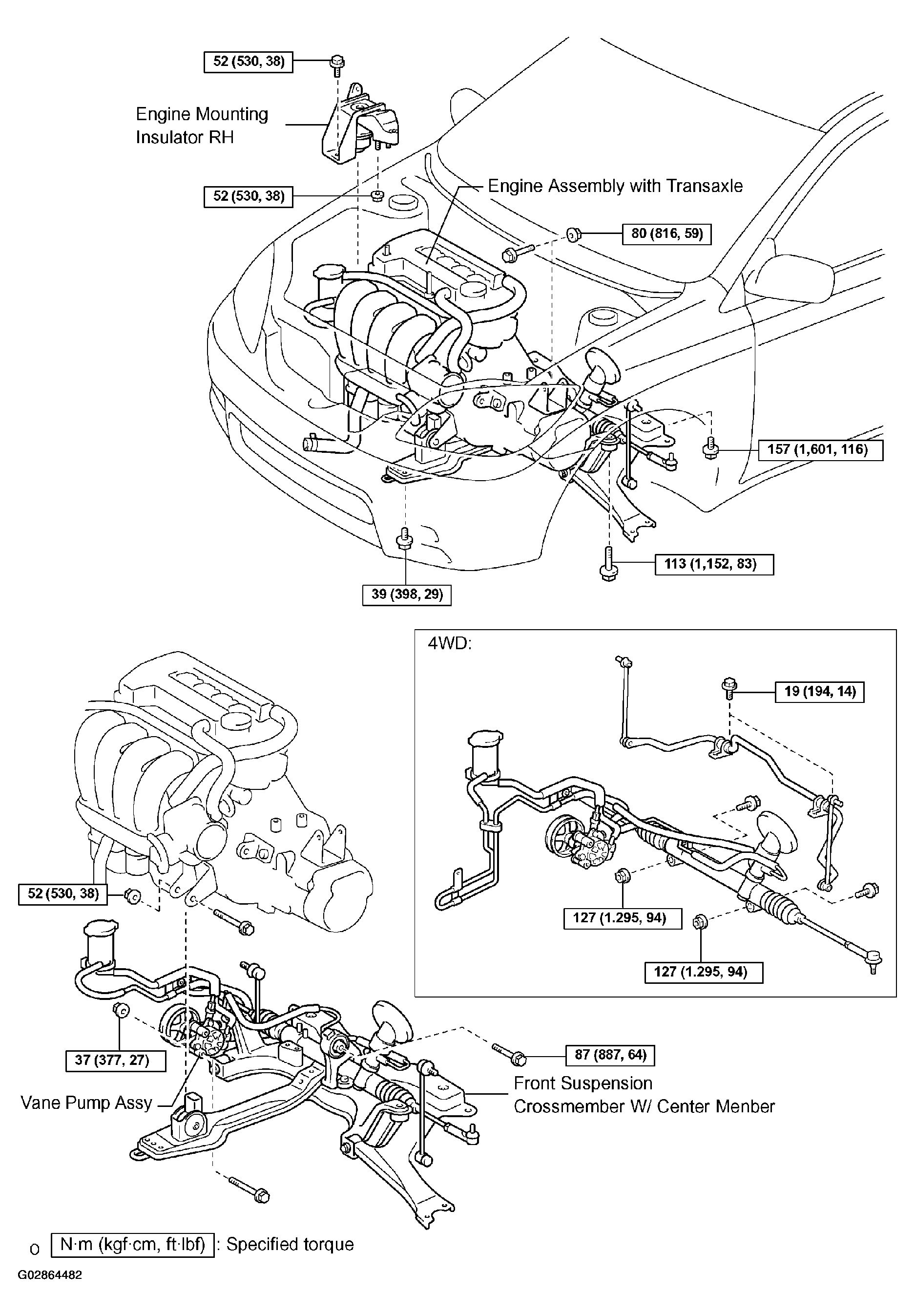

Fig 7: Assembling Engine Parts
G02864482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

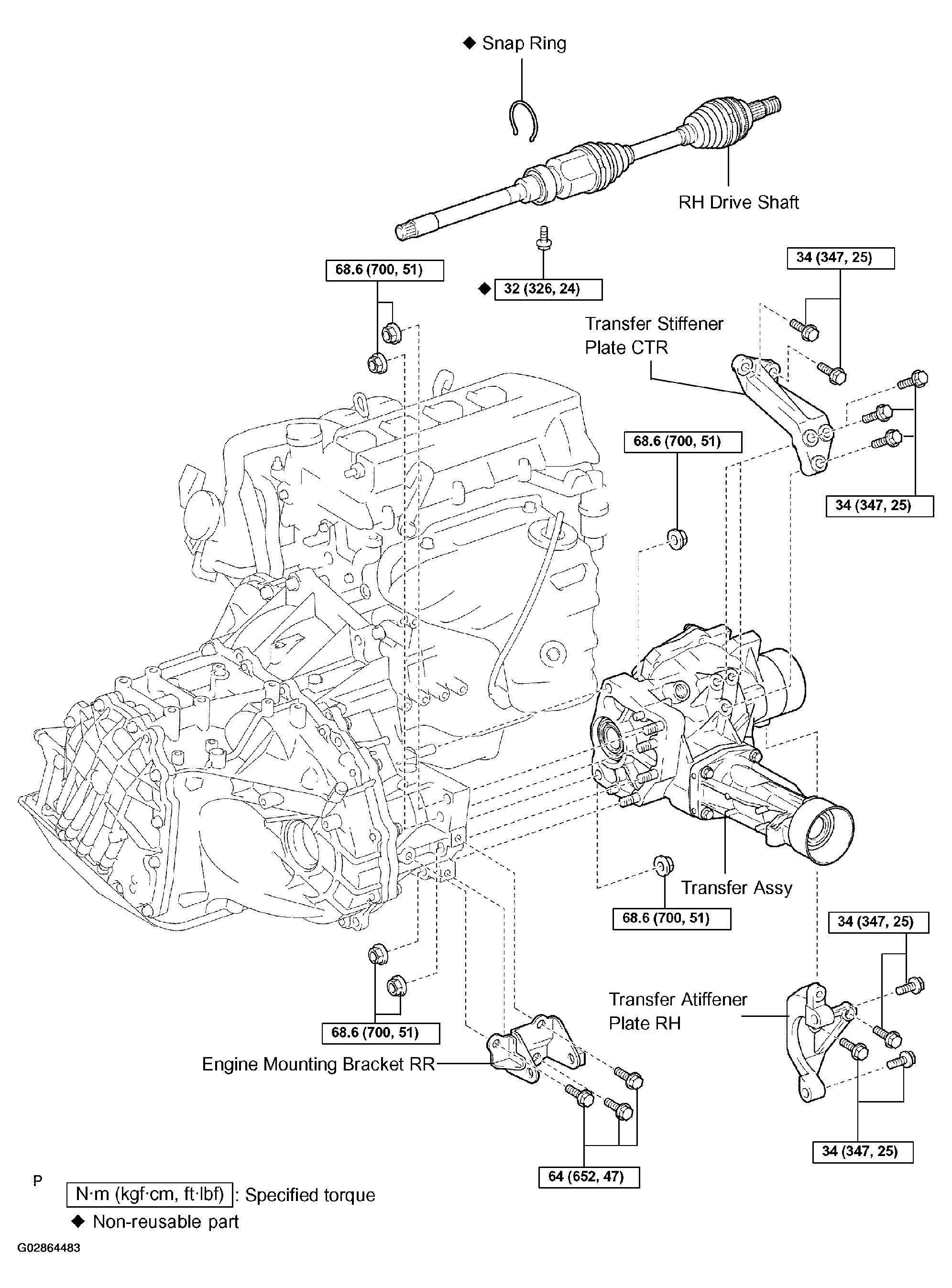

Fig 8: Removing Transfer Assembling
G02864483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

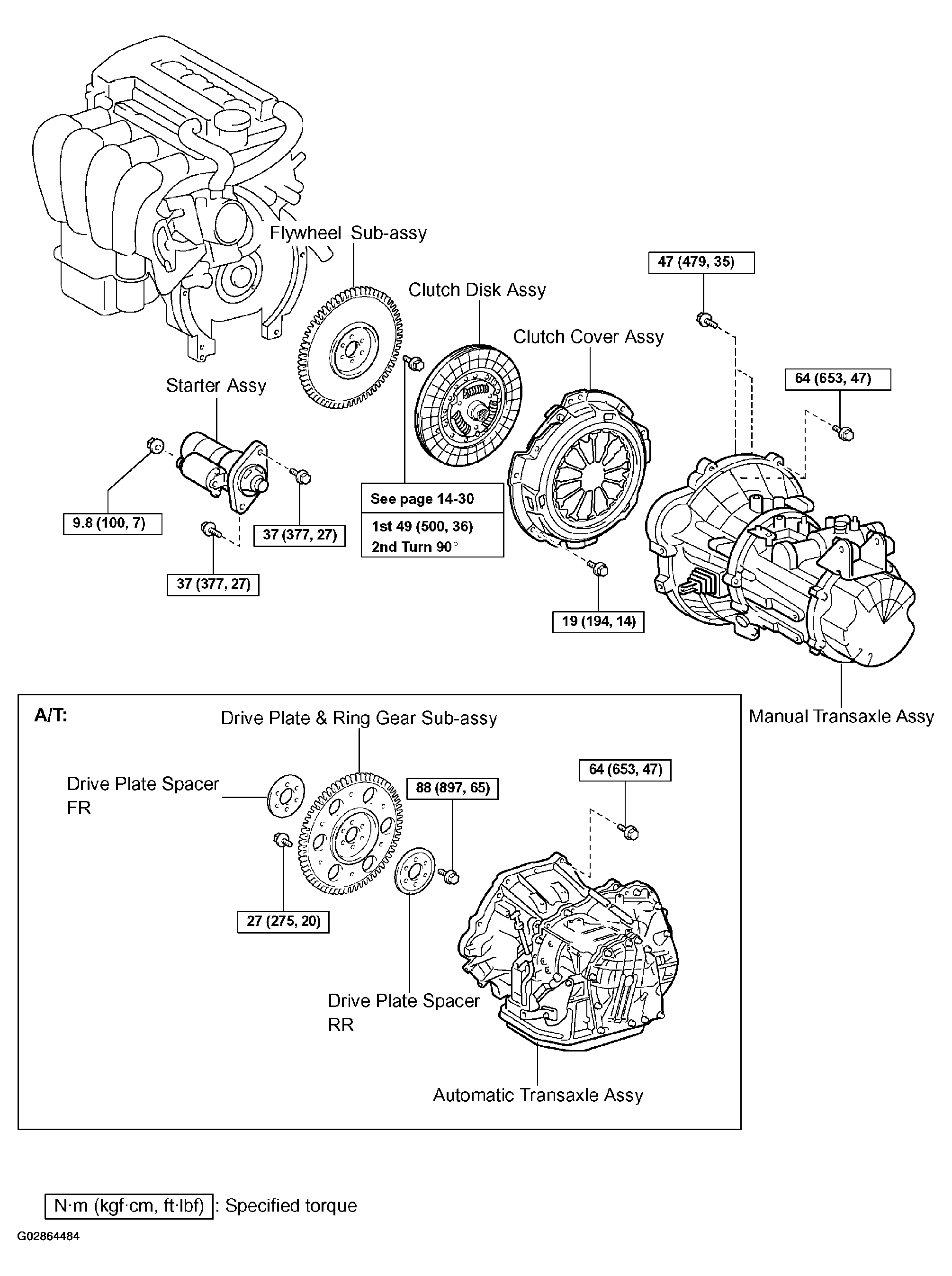

Fig 9: Exploded View Of Transmission System
G02864484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

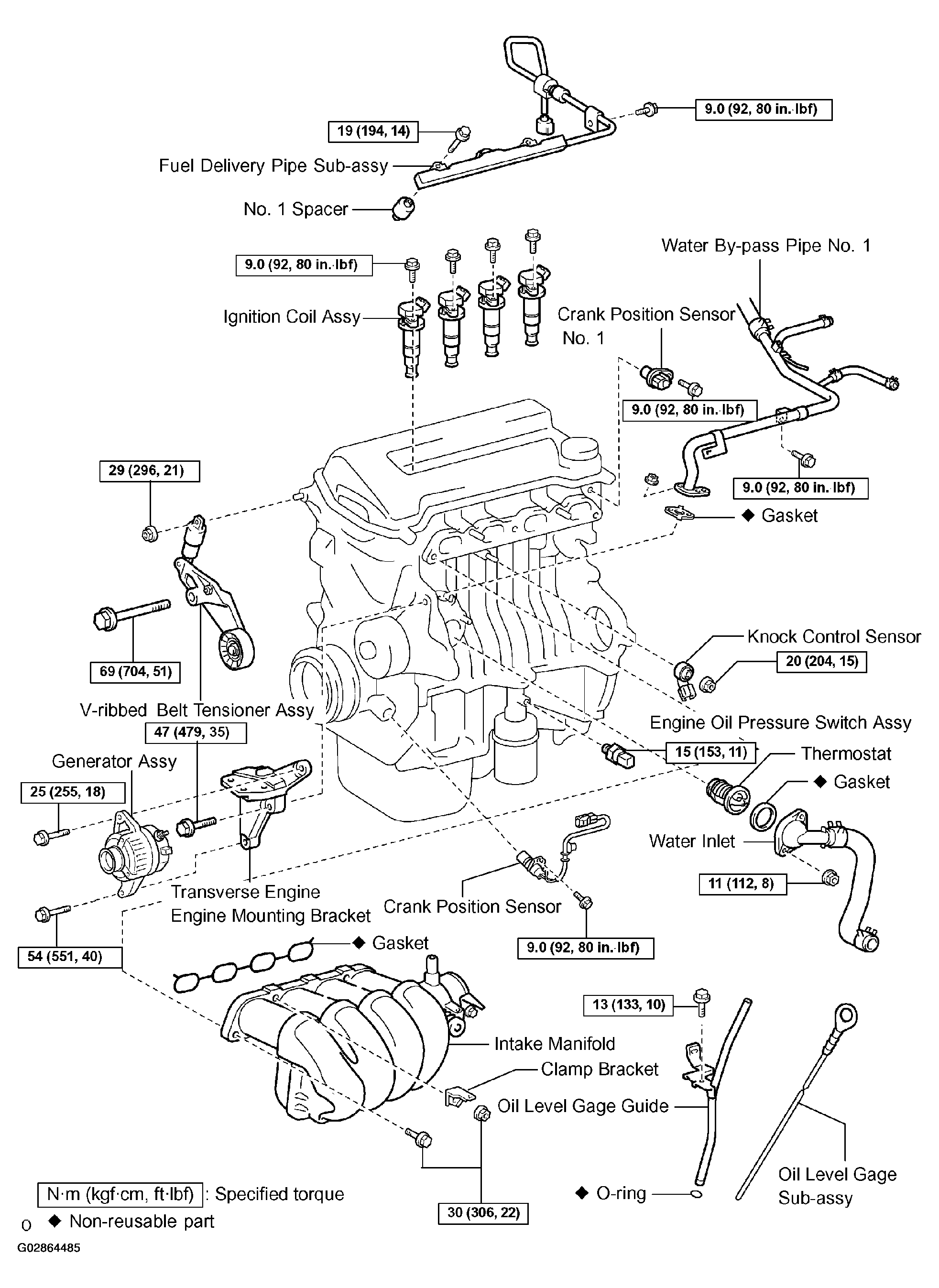

Fig 10: Exploded View Of Ignition & Crank System
G02864485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

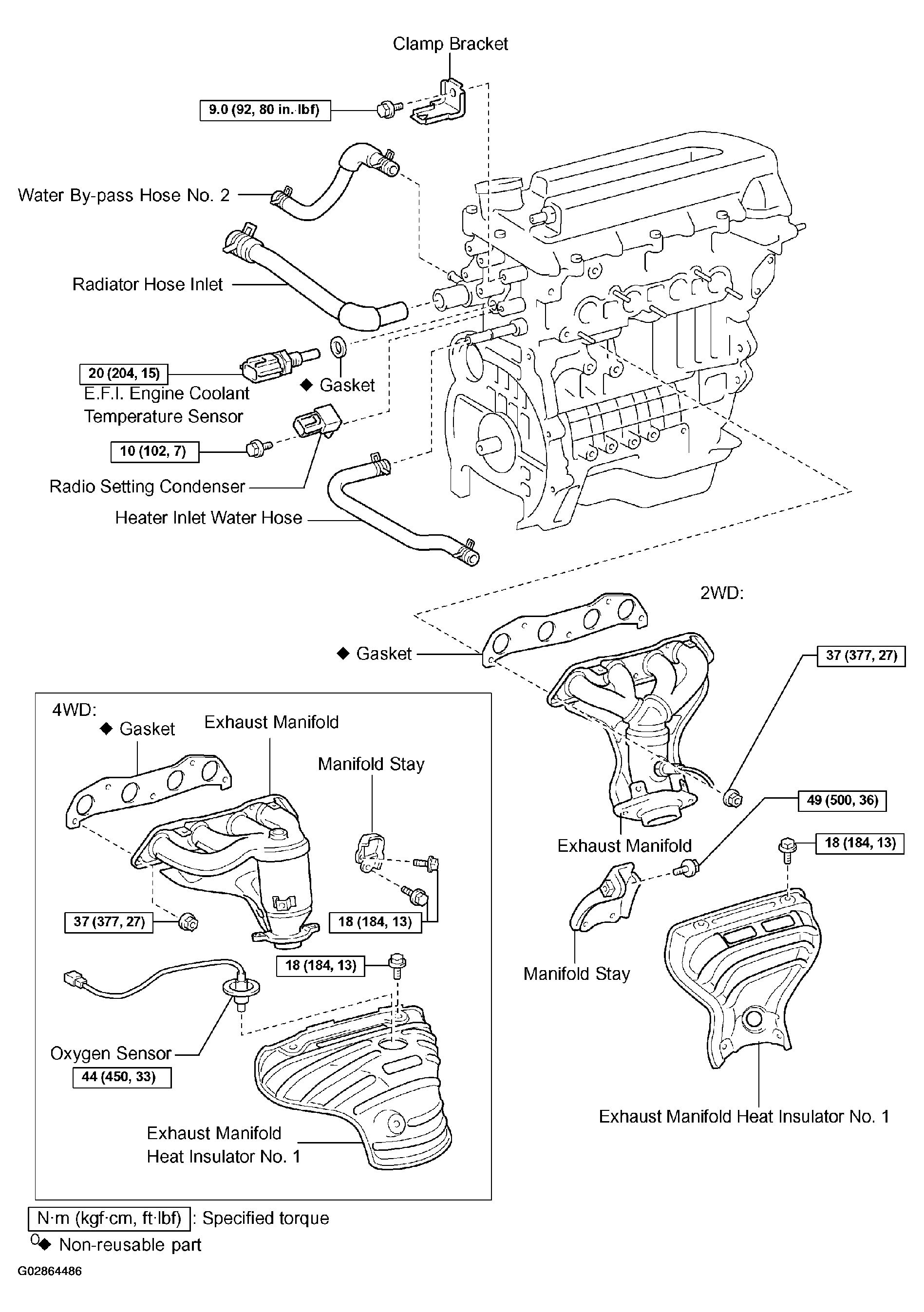

Fig 11: Removing Cooling Parts System
G02864486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

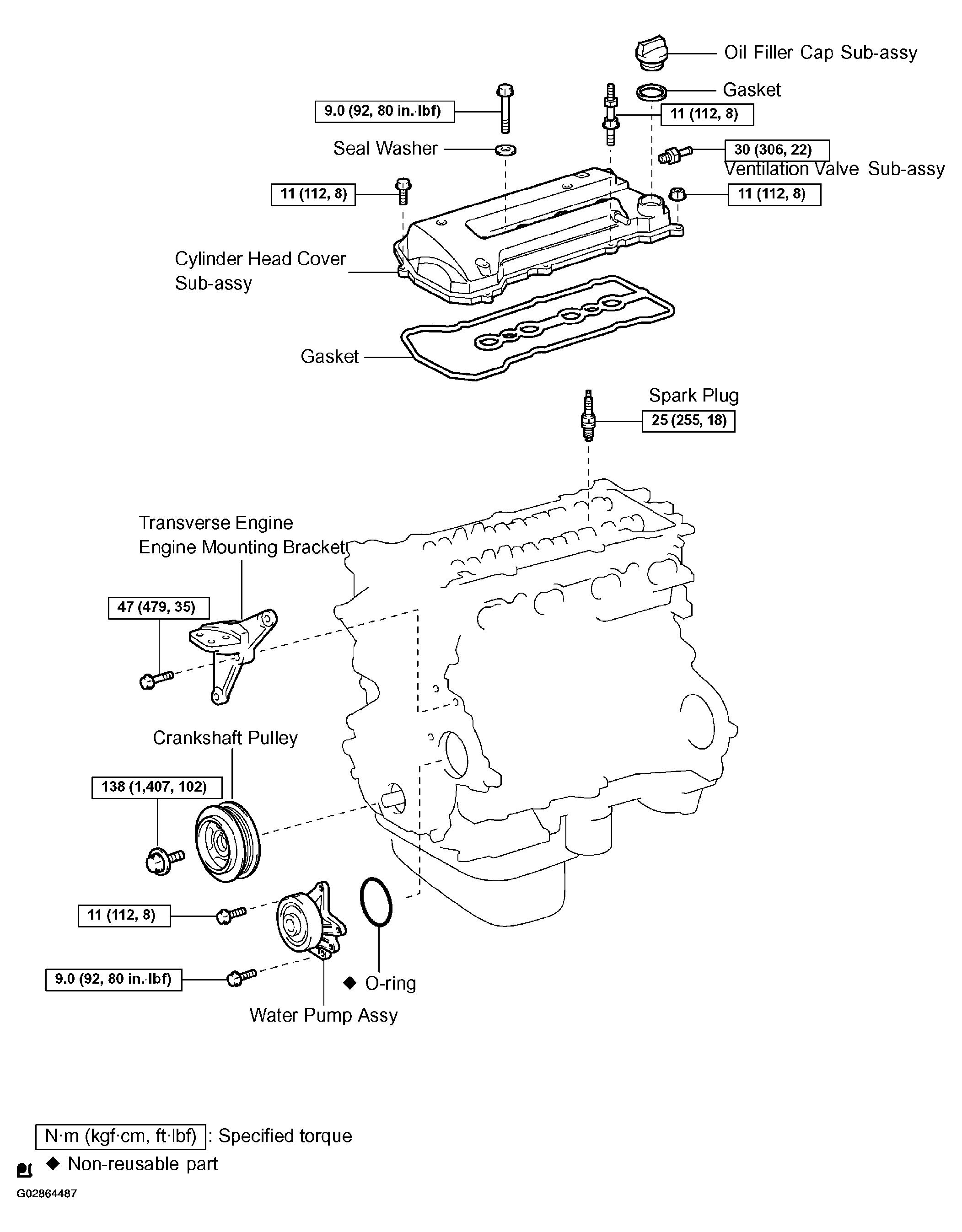

Fig 12: Disassembling Cylinder Head Assy
G02864487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

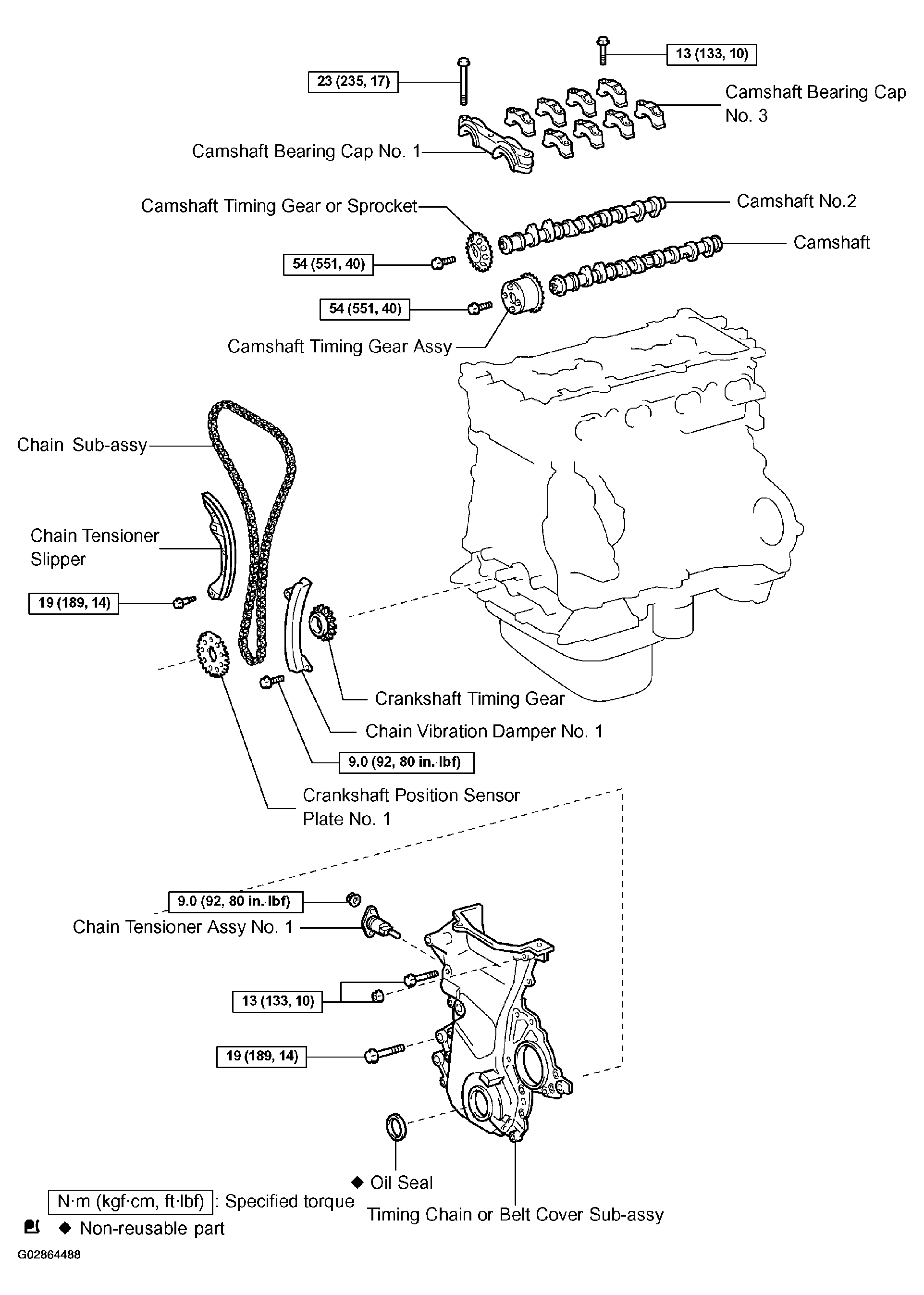

Fig 13: Removing Engine Block System
G02864488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

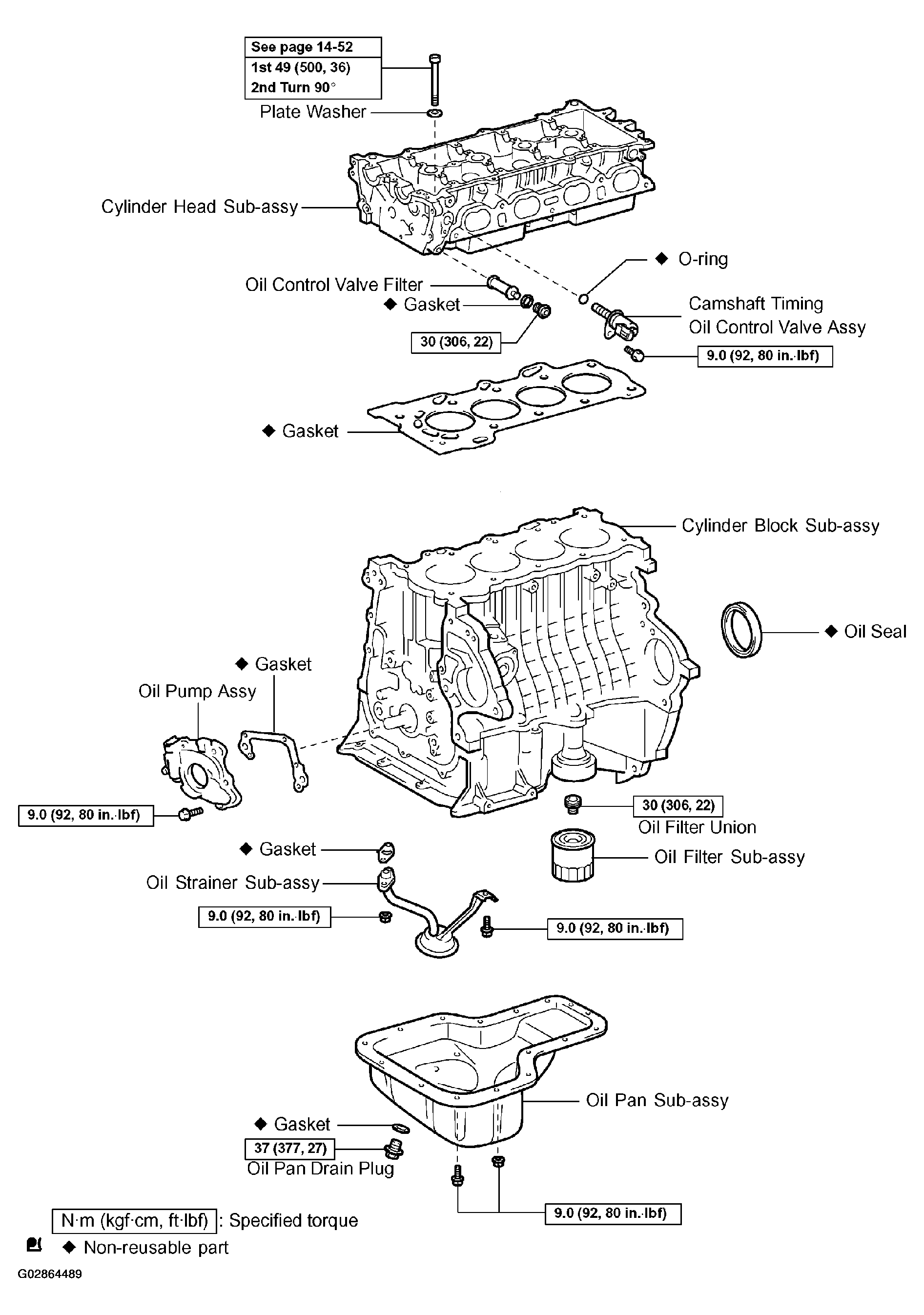

Fig 14: Removing Oil Parts From Engine
G02864489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
