Problem Symptoms Table

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

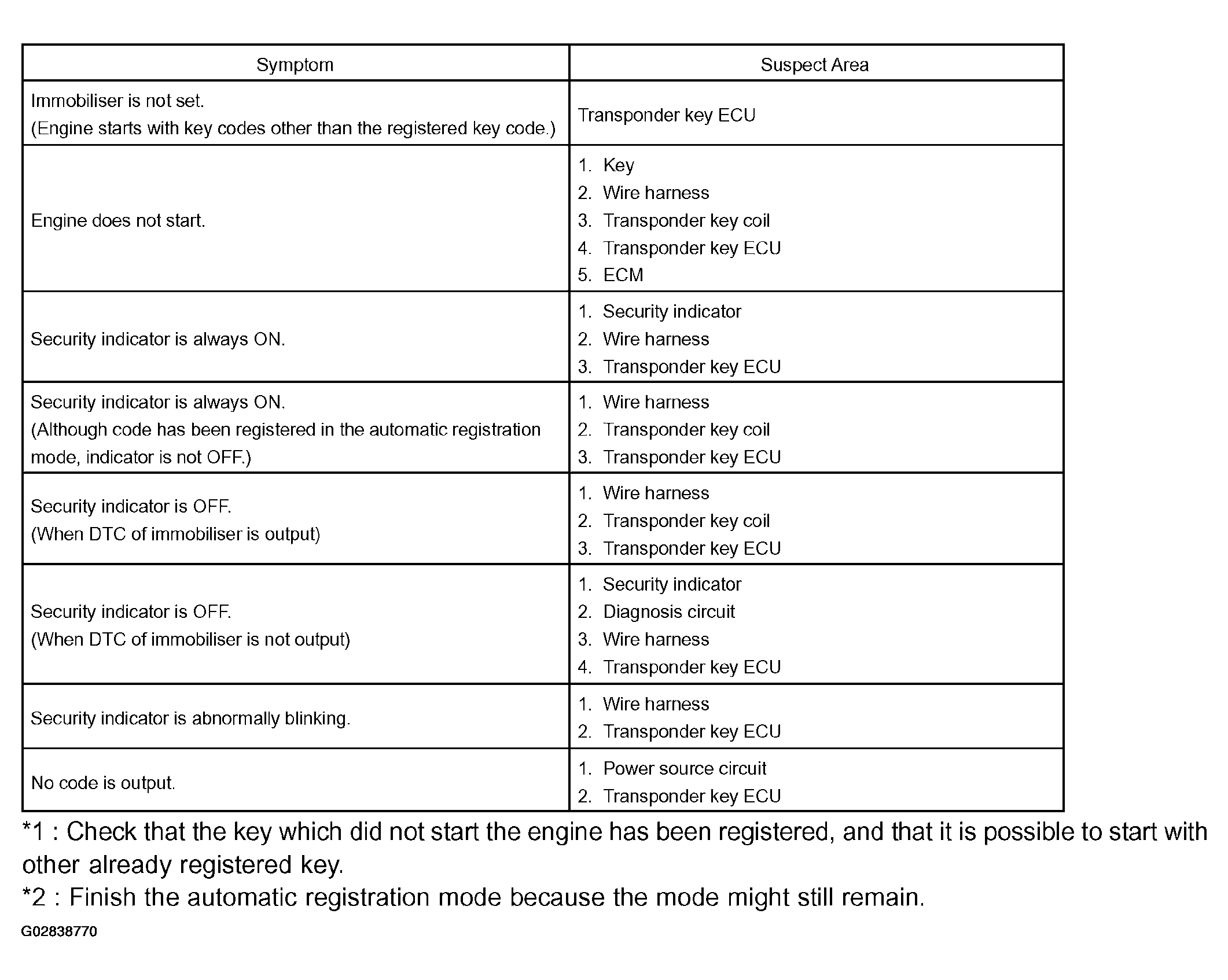

Fig 1: Problem Symptoms Chart
G02838770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
