Section 383 (Theft Deterrent System): Pre-Check

When the theft deterrent system detects any theft, it informs people around by flashing lights and sound.

All initial settings are performed in active mode. It can be switched to passive mode by using TOYOTA hand-held tester (See step  3. CHANGING METHOD OF PASSIVE MODE)

1. (1) Disarmed state
   • When the alarming function does not operate.
   • When theft deterrent function is not performed.
2. (2) Arming preparation
   • Time until transferring to armed state.
   • Theft deterrent function is not performed.
3. (3) Armed state

   When theft deterrent function is possible.

4. (4) Alarm sounding:

   In this condition, once the system detects a theft, it informs using light and sound to people around the vehicle.

   Refer to the table for alarming method or time.

   Fig 1: Alarming Method Or Time Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Alarming output for hazard is same as the one for the hazard on the vehicle.

   In the arming condition when any of doors are unlocked not by the key or wireless remote, force lock signal is output.

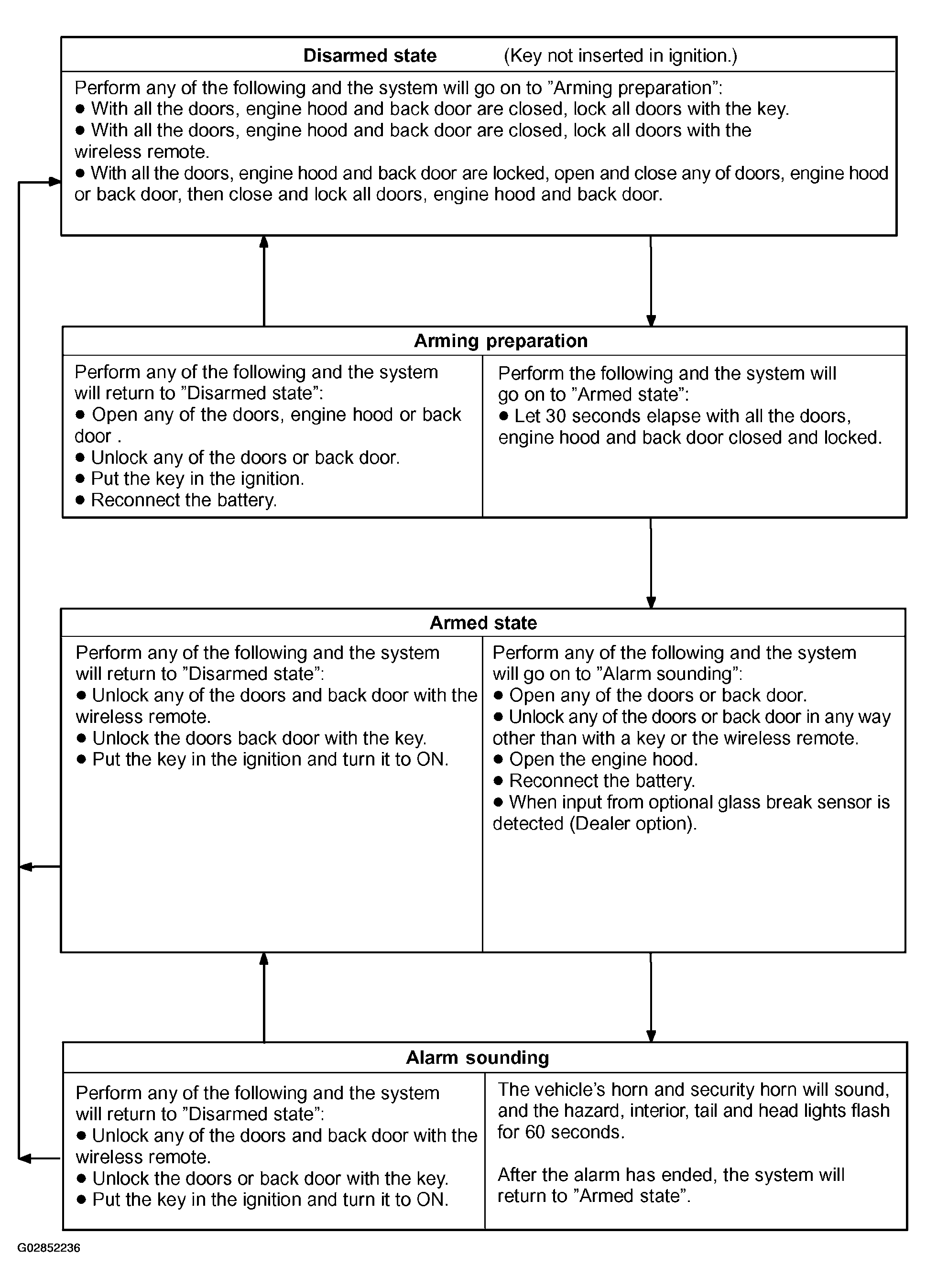

Fig 2: Active Arming Mode

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Indicator light output:

Flashing frequency:

0.2 seconds (ON)

1.8 seconds (OFF)

• This mode can be switched by C-BEST customizing function.
• All initially set modes (when shipped from factory) are active mode. (No passive mode)
  Fig 3: Passive Arming Mode

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

During this time, the mode transfers to disarmed state when the condition described above * is met.

When the condition is not met, the system judges theft occurs, the mode transfers to alarm sounding.

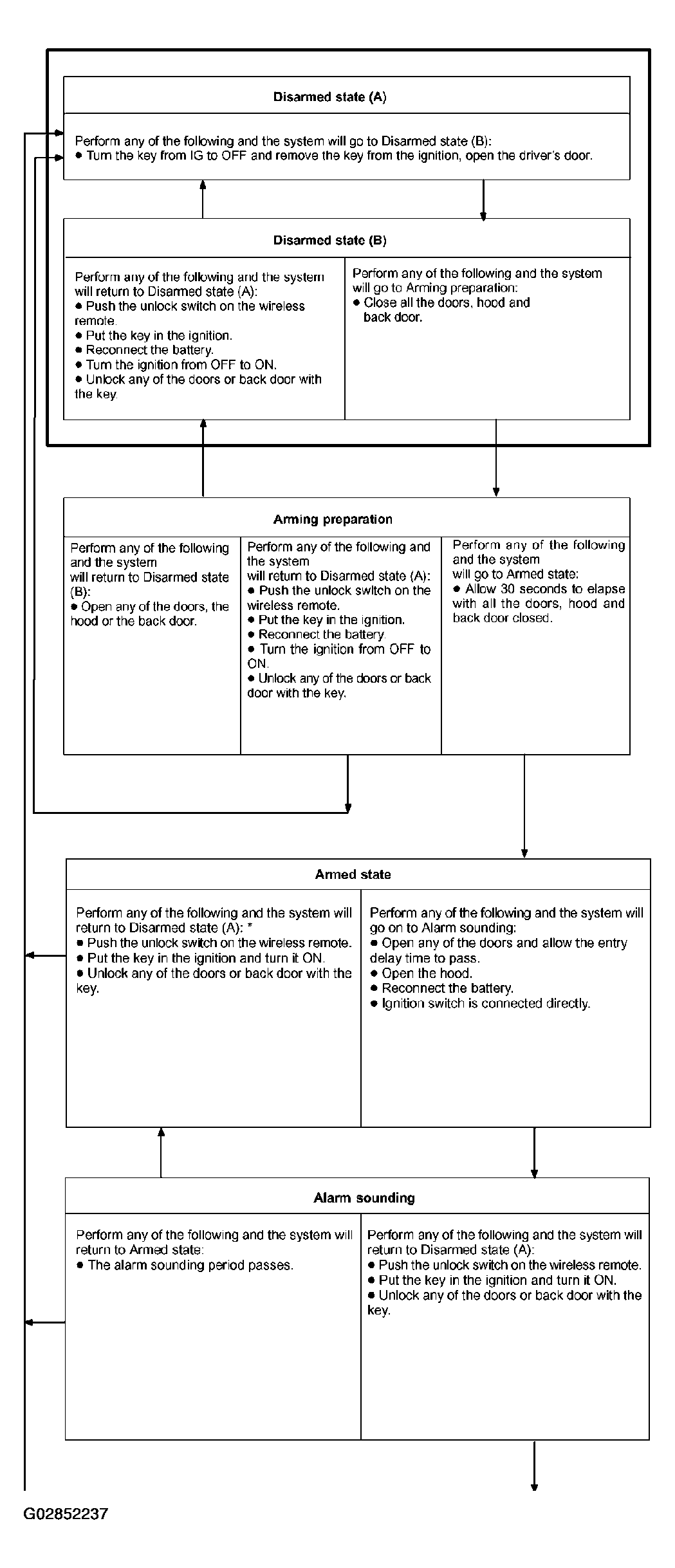

Fig 4: Armed State Alarm Sounding Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Indicator light output:

Flashing frequency:

0.2 seconds (ON)

1.8 seconds (OFF)

1. Transfer to active mode:

   In each passive mode, when "disarmed state of active mode --> arming preparation transfer condition" is met, the active mode transfers to each condition. In this case, active mode continues till it become disarmed state.

   ACTIVE MODE TRANSFER CONDITION



   Passive Mode When Transfer Condition Is Met.	Active Mode Transfer Condition
   Disarmed State	Arming Preparation Condition
   Arming Preparation Condition	Arming Preparation Condition
   Armed State (During Entry Delay Time)	Arming Condition (After Alarming Time Has Elapsed, Arming Condition)
   Alarm Sounding	After Alarming Time Has Elapsed, Arming Condition

2. Answer back:

   The buzzer and taillights as answer back under the following conditions.

   1. (1) When the system is set.

      When arming preparation is set from disarmed state using the wireless door lock, the buzzer and tail-lights.

   2. (2) When the system is released.

      When disarmed state is set from either arming preparation, armed state or alarm sounding using the wireless door lock, the buzzer and taillights.
