Heater Control Assembly: Components

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

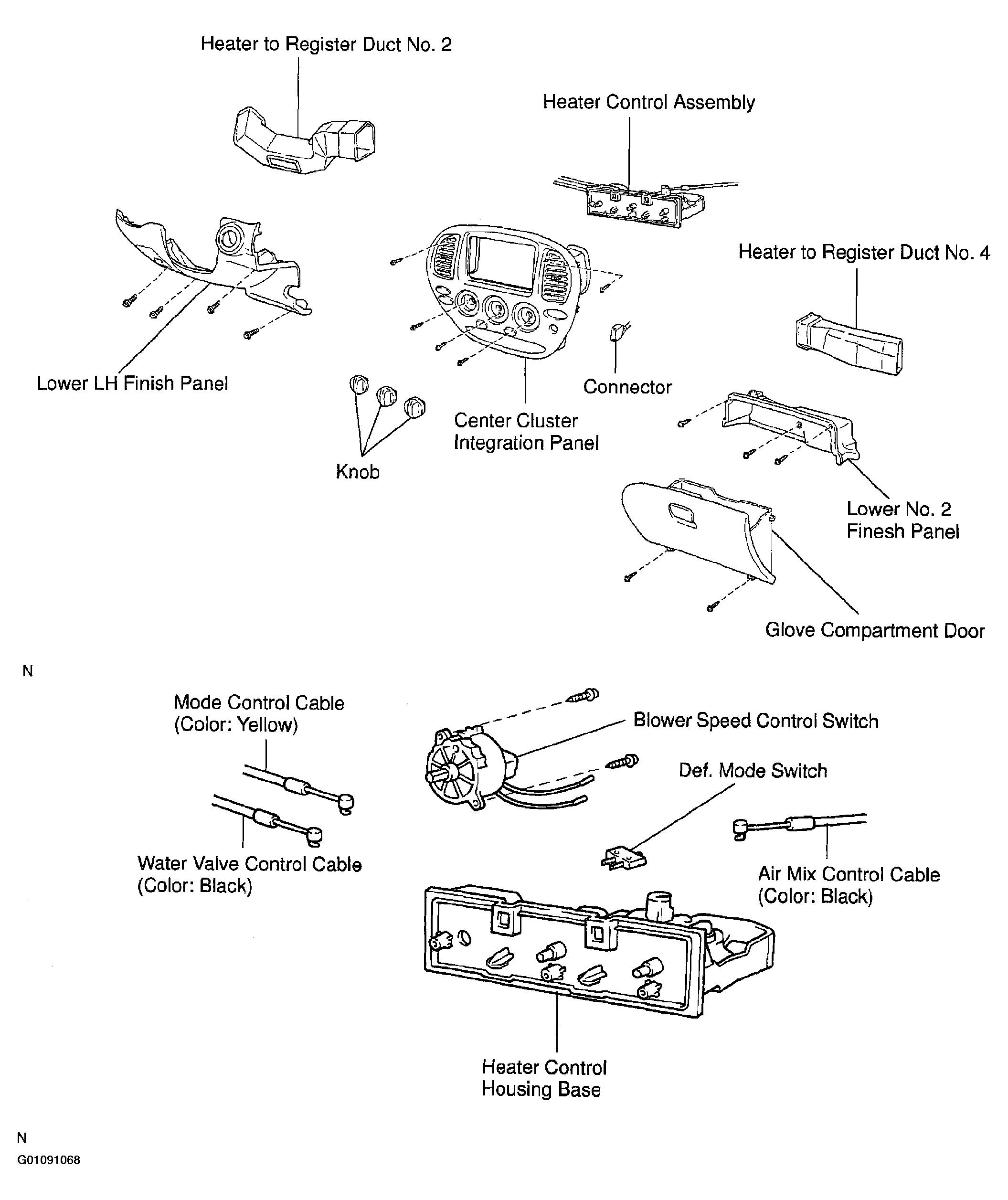

Fig 1: Identifying Heater Control Assembly Components
G01091068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
