Input Shaft ASSY (C60): Components

WARNING: This page is about a different variant/trim than selected.

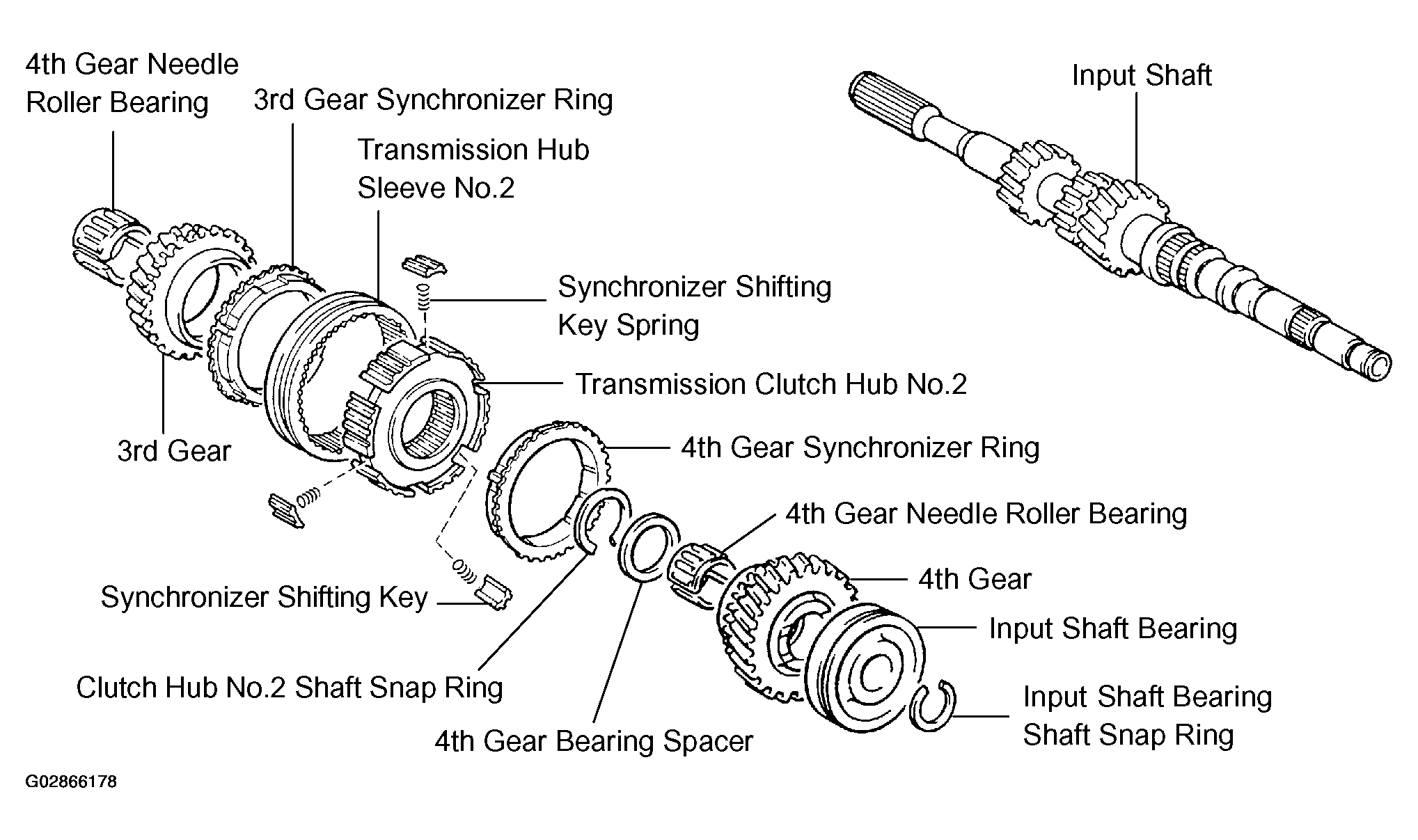

Fig 1: Exploded View Of Input Shaft Assembly (C60)
G02866178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
