On-Vehicle Inspection

WARNING: This page is about a different variant/trim than selected.

Check play of accelerator auto drive cable assy.
1. Push the wire into the cable so as not to move the throttle link and put a mark on the position shown in the illustration. See Fig 1.
2. Pull the wire and check the moved distance of the mark. See Fig 2.
Adjust play in accelerator auto drive cable assy.
1. Changing the double nut position shown by the arrows, adjust the play to the standard value. See Fig 3.
  Standard: 2 - 6 mm (0.079 - 0.236 in) .
ADJUST PLAY IN ACCELERATOR CONTROL CABLE ASSY
1. Remove the cruise control actuator cover and adjust the play in the accelerator control cable assy by changing the double nut position. See Fig 4.

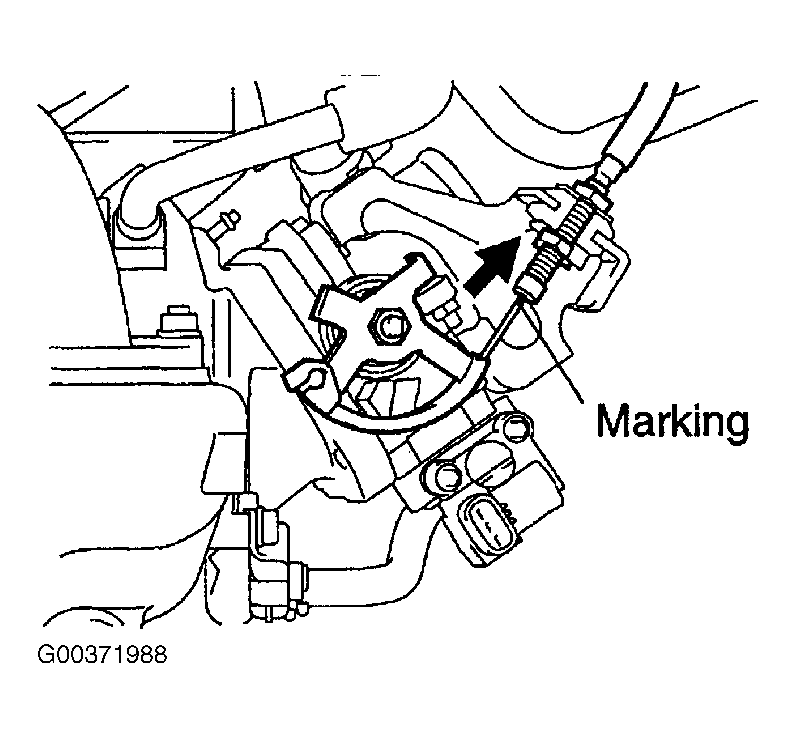

Fig 1: Marking Accelerator Auto Drive Cable

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

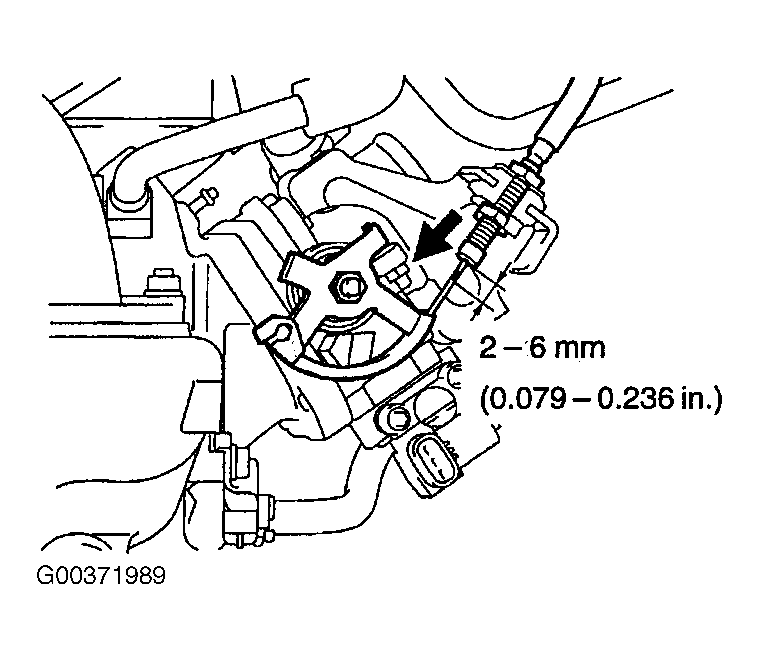

Fig 2: Measuring Accelerator Auto Drive Cable Play

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

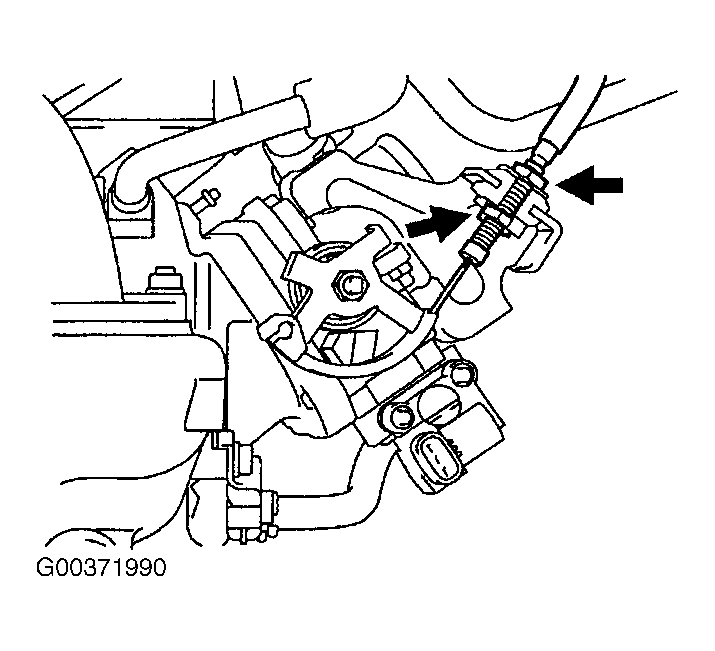

Fig 3: Adjusting Accelerator Auto Drive Cable

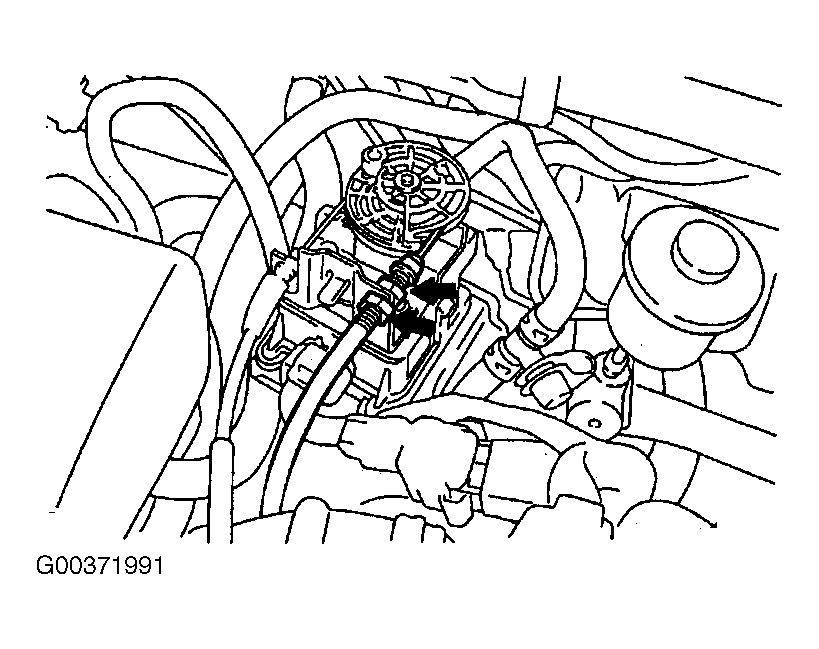

Fig 4: Adjusting Play In Accelerator Control Cable
