Confirmation Engine Racing Pattern

WARNING: This page is about a different car, the 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

For confirmation engine racing pattern, see Fig 1.

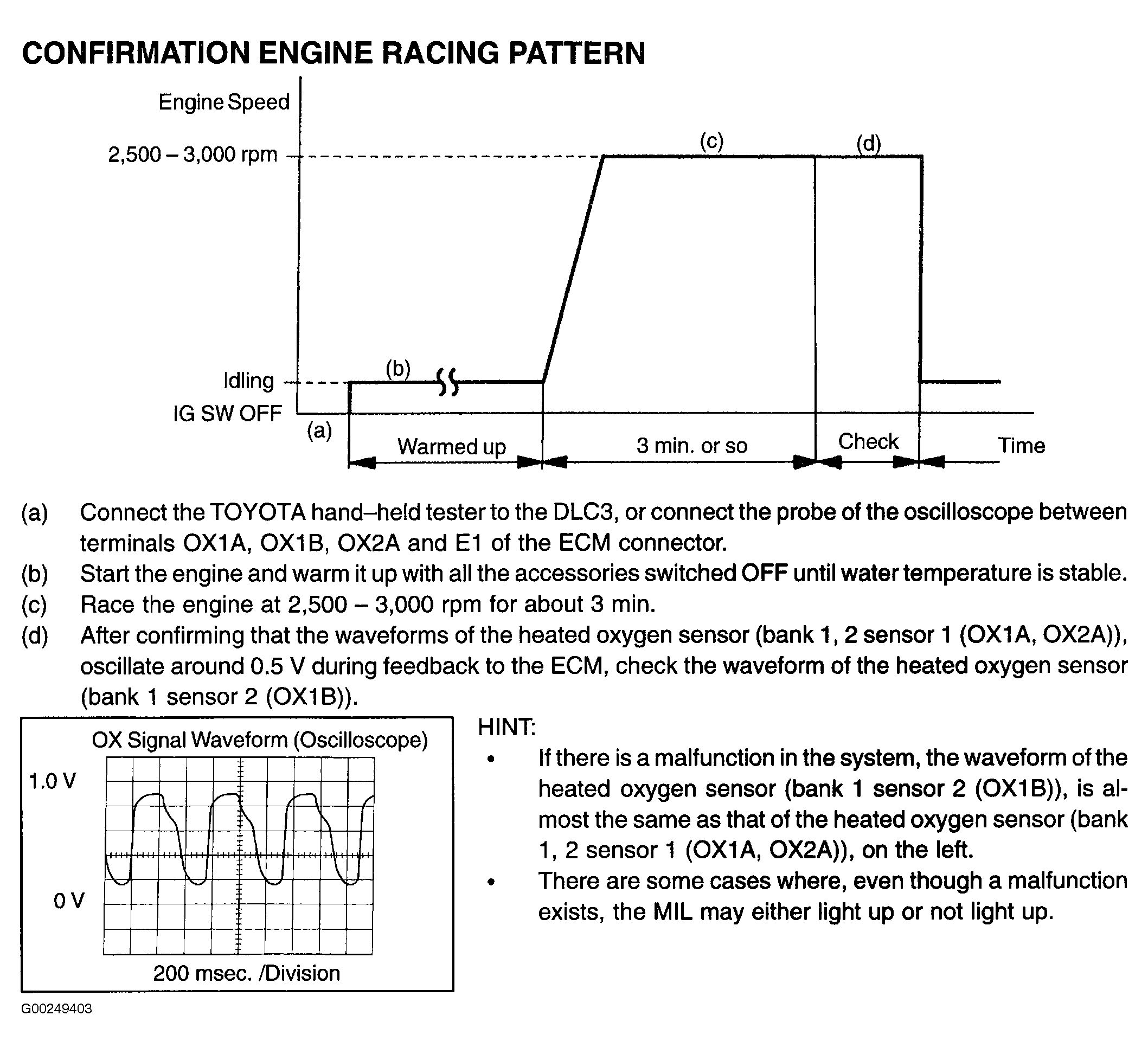

Fig 1: Confirmation Engine Racing Pattern
G00249403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
