Terminals Of Ecu

INSPECT TVIP ECU

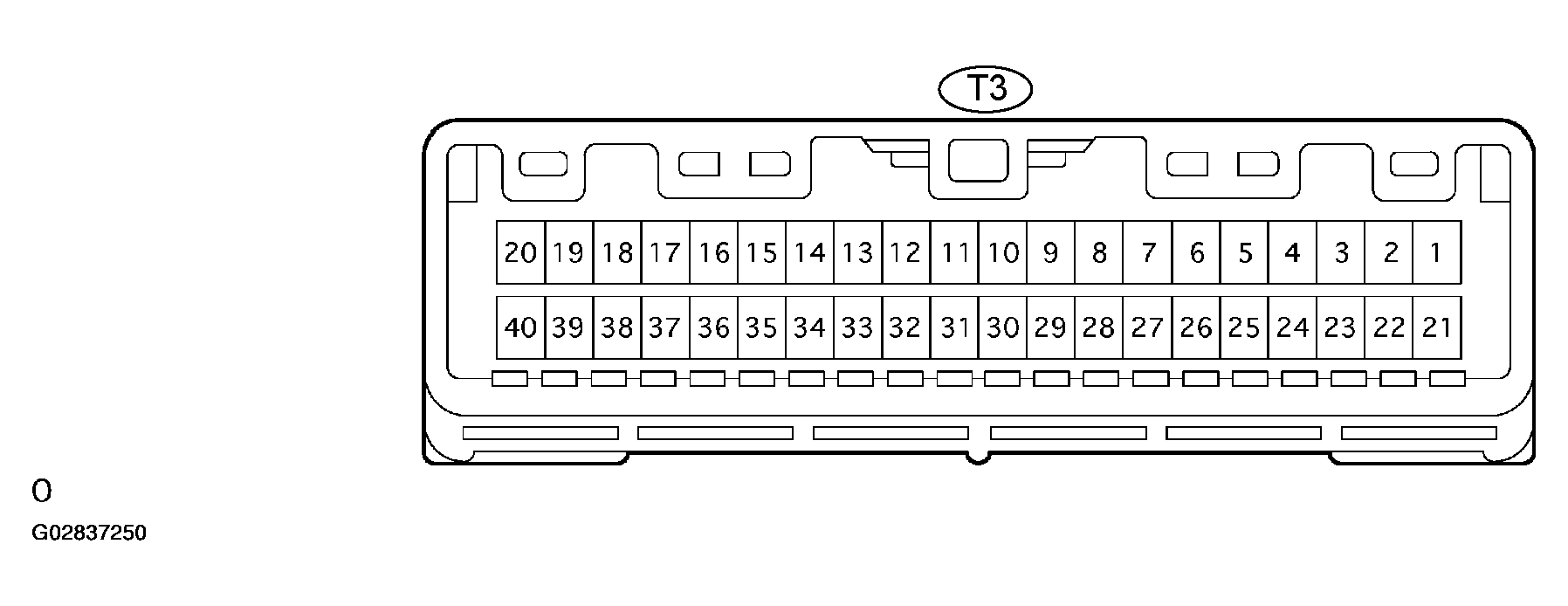

Fig 1: Identifying TVIP ECU Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the TVIP ECU connector, and check each terminal of the disconnected connector.
  Standard:

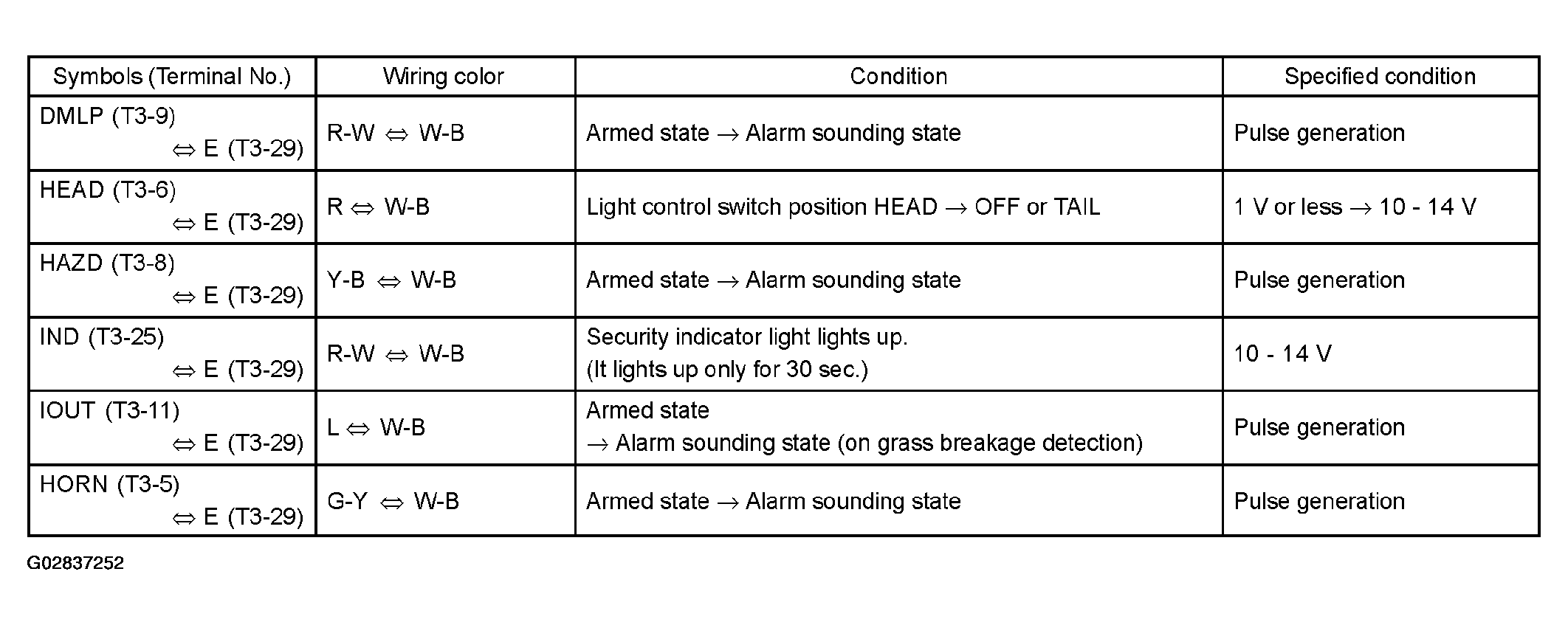

  Fig 2: TVIP Connector Terminals Specified Condition Chart (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, the vehicle's side may malfunction.
  1. Reconnect the connector and check the each terminals.
    Standard:

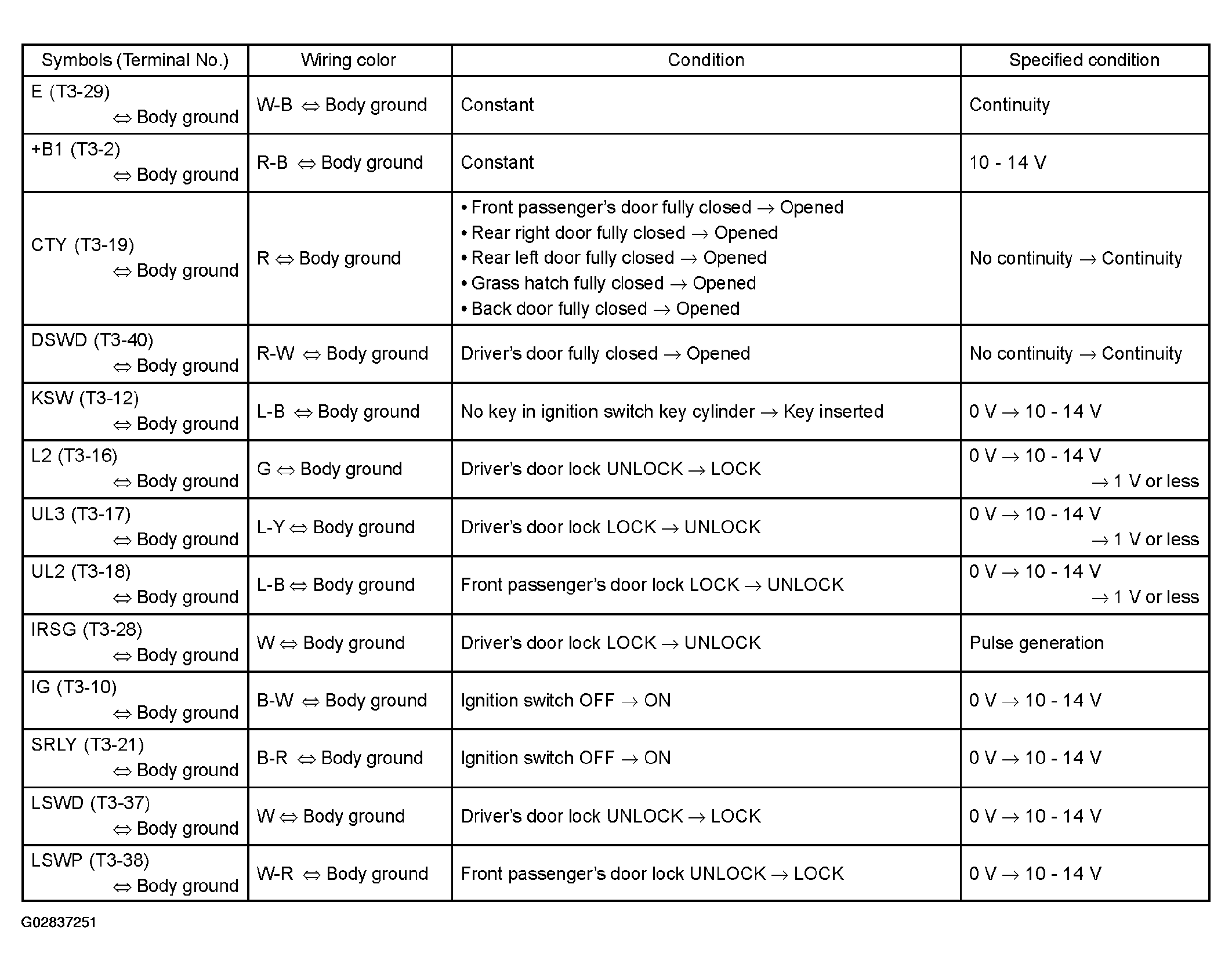

  Fig 3: TVIP Connector Terminals Specified Condition Chart (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, the TVIP ECU may malfunction.

INSPECT INTEGRATION RELAY

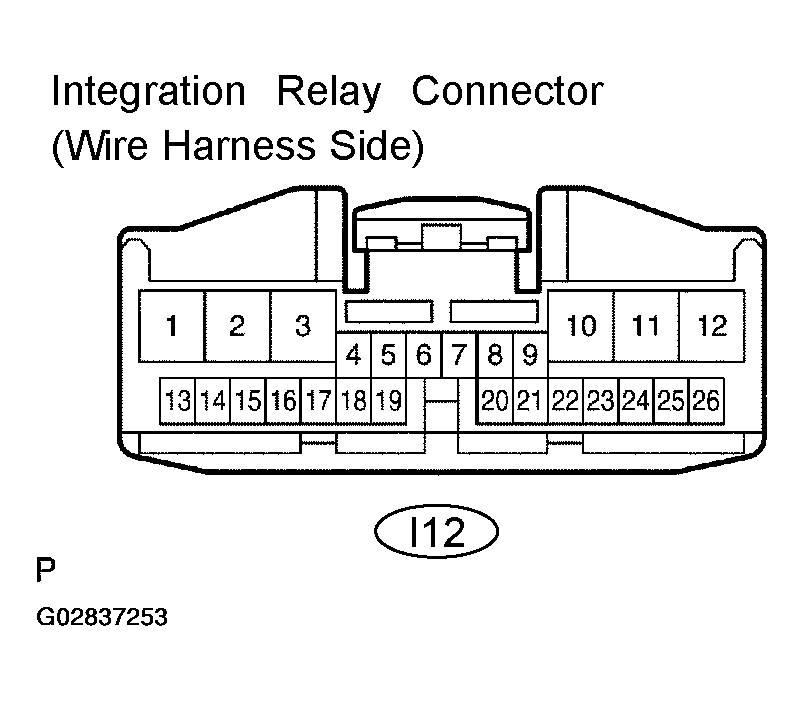

Fig 4: Identifying Integration Relay Connector Terminal (Wire Harness Side)

G02837253

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the connector and check the continuity of each terminal of the disconnected connector.

INTEGRATION RELAY CONNECTOR TERMINALS CONTINUITY

Symbols (Terminal No.)	Wiring Color	Condition	Specified Condition
PCTY (112-13) <--> Body Ground	R-W <--> Body Ground	Front Passenger's Door Fully Closed --> Opened	No Continuity --> Continuity

If the result is not as specified, the vehicle's side may malfunction.

INSPECT INSTRUMENT PANEL J/B (INTEGRATION RELAY)

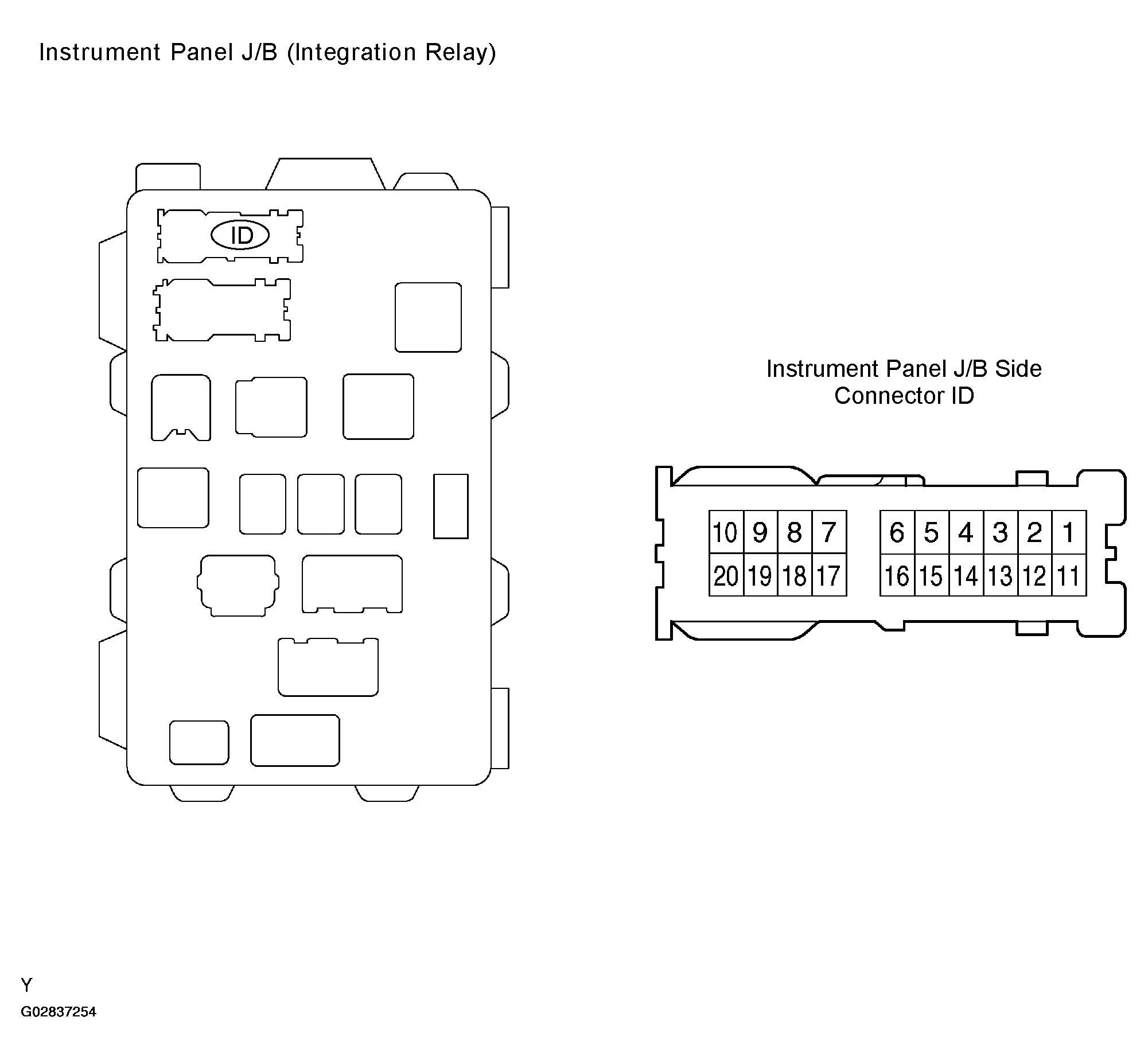

Fig 5: Identifying Instrument Panel J/B (Integration Relay) Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Inspect the DOOR fuse.
2. Disconnect the connector ID of the instrument panel J/B.
3. Check each terminal of the disconnected connector.
  Standard:

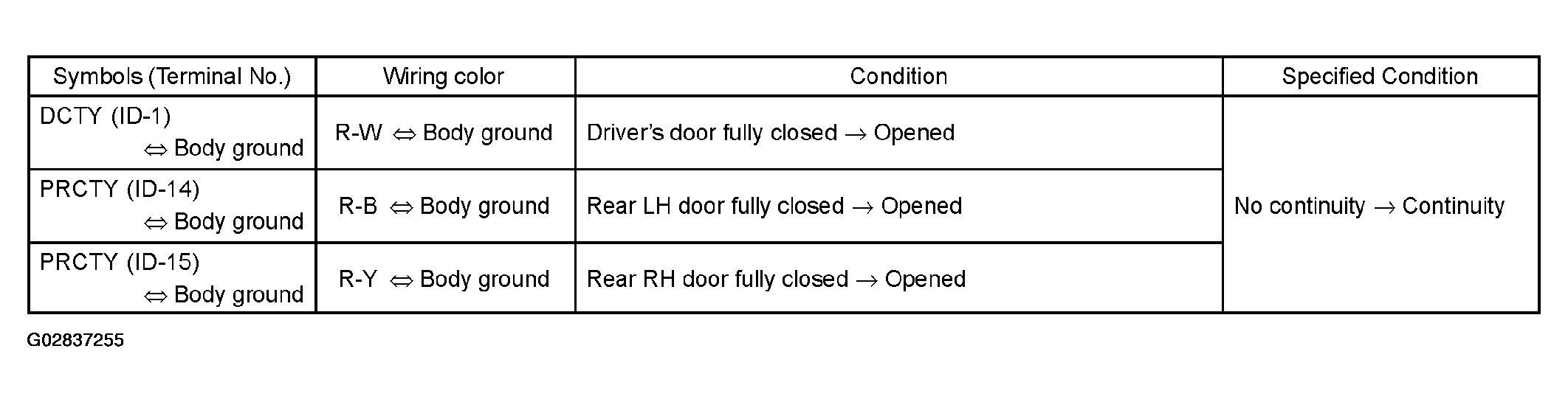

Fig 6: Instrument Panel J/B (Integration Relay) Connector Terminals Continuity Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, the vehicle's side may malfunction.
