Throttle Position Sensor: Matrix

For inspection of Throttle Position (TP) sensor, see Fig 1-Fig 2 .

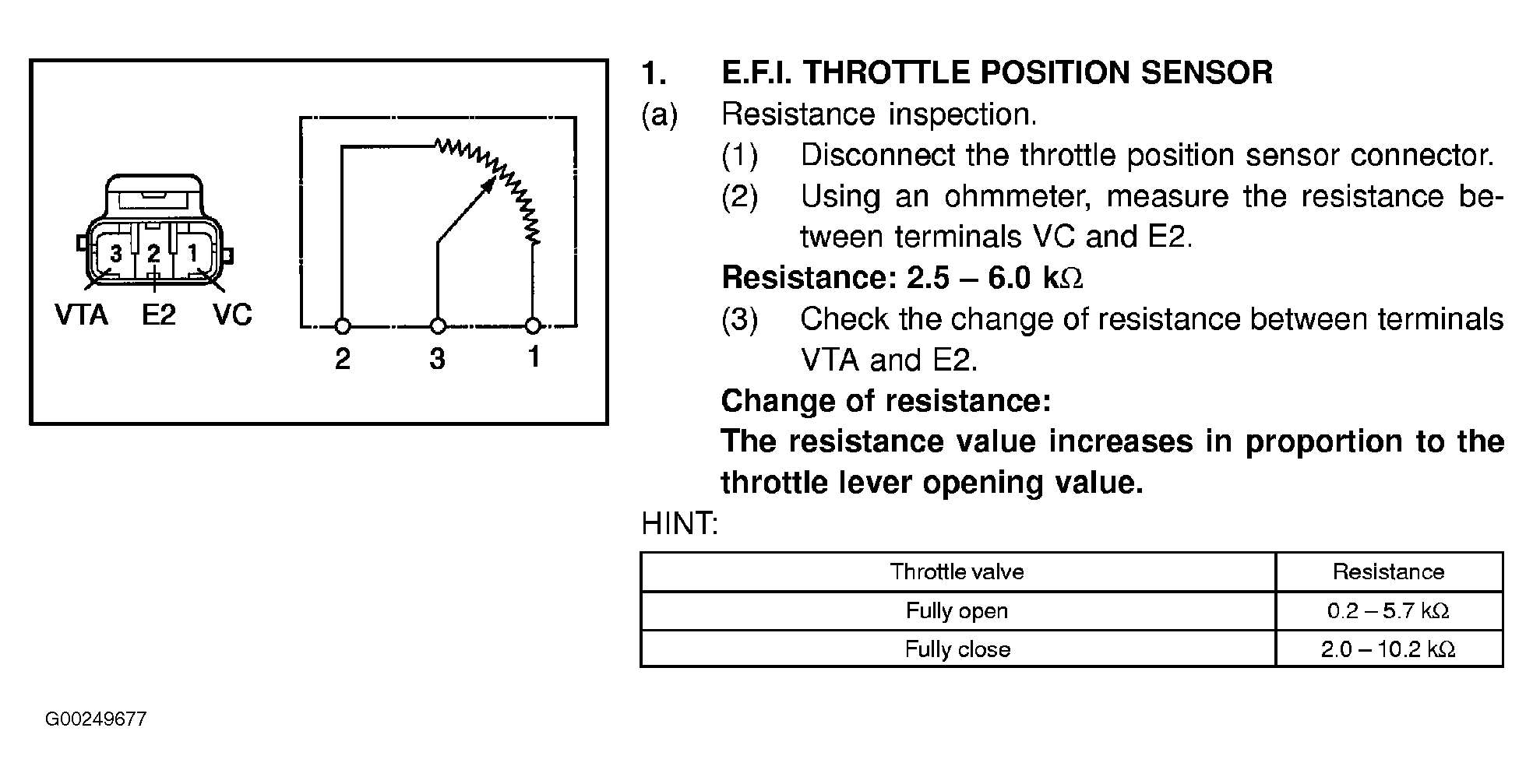

Fig 1: Inspecting Throttle Position Sensor (Matrix With 1ZZ-FE Engine)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

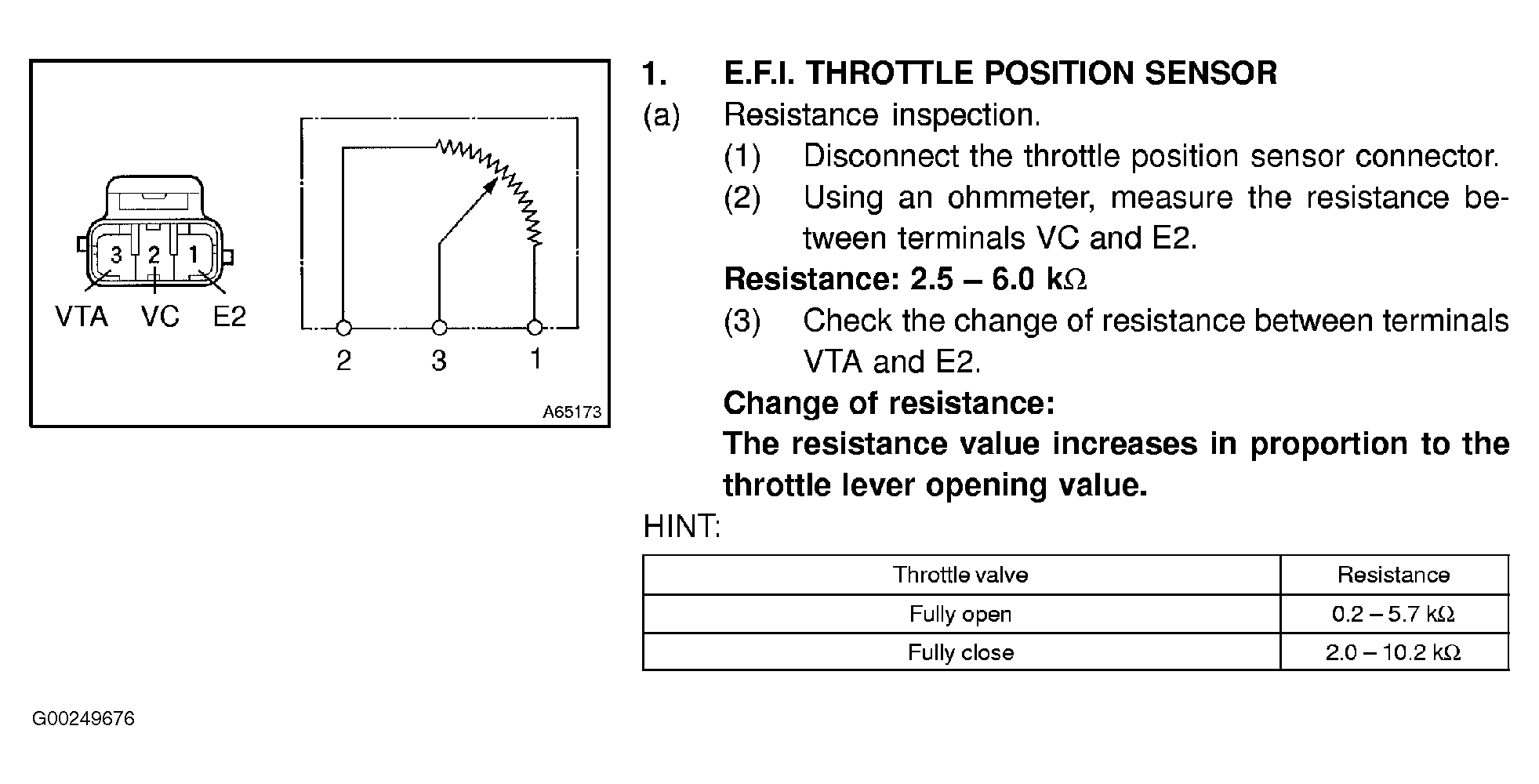

Fig 2: Inspecting Throttle Position Sensor (Matrix With 2ZZ-GE Engine)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
