Engine Unit: Components

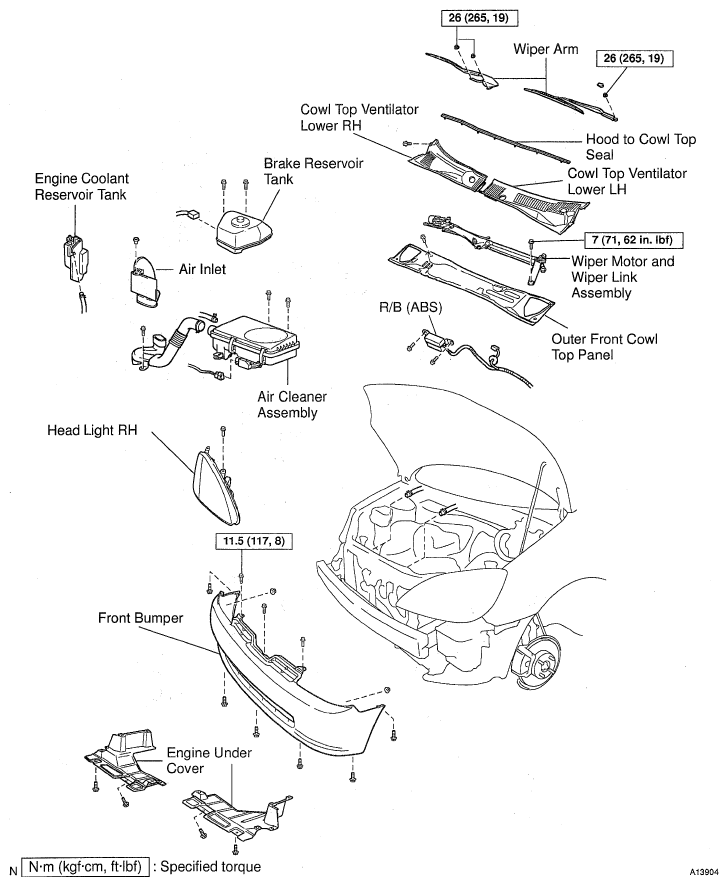

Fig 1: Engine Unit Components With Torque Specifications (1 Of 3)
G06042337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

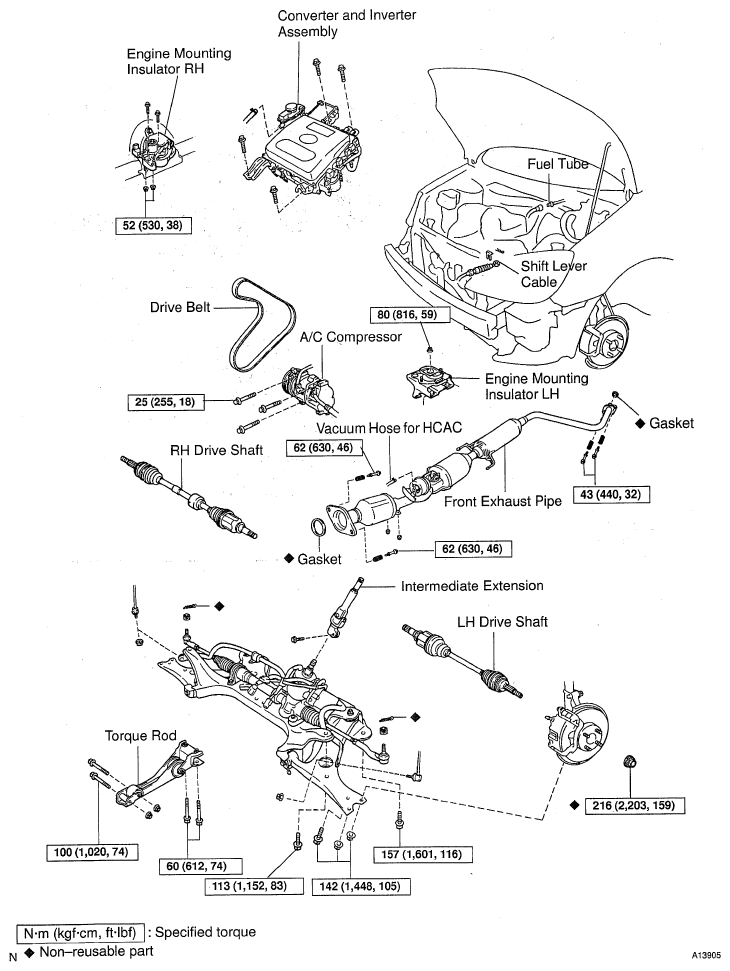

Fig 2: Engine Unit Components With Torque Specifications (2 Of 3)
G06042338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

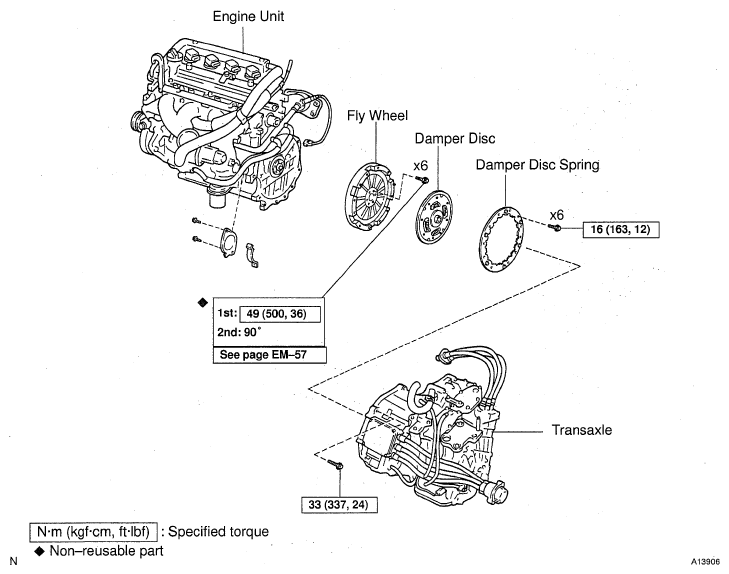

Fig 3: Engine Unit Components With Torque Specifications (3 Of 3)
G06042339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
