Oil Pump: Components

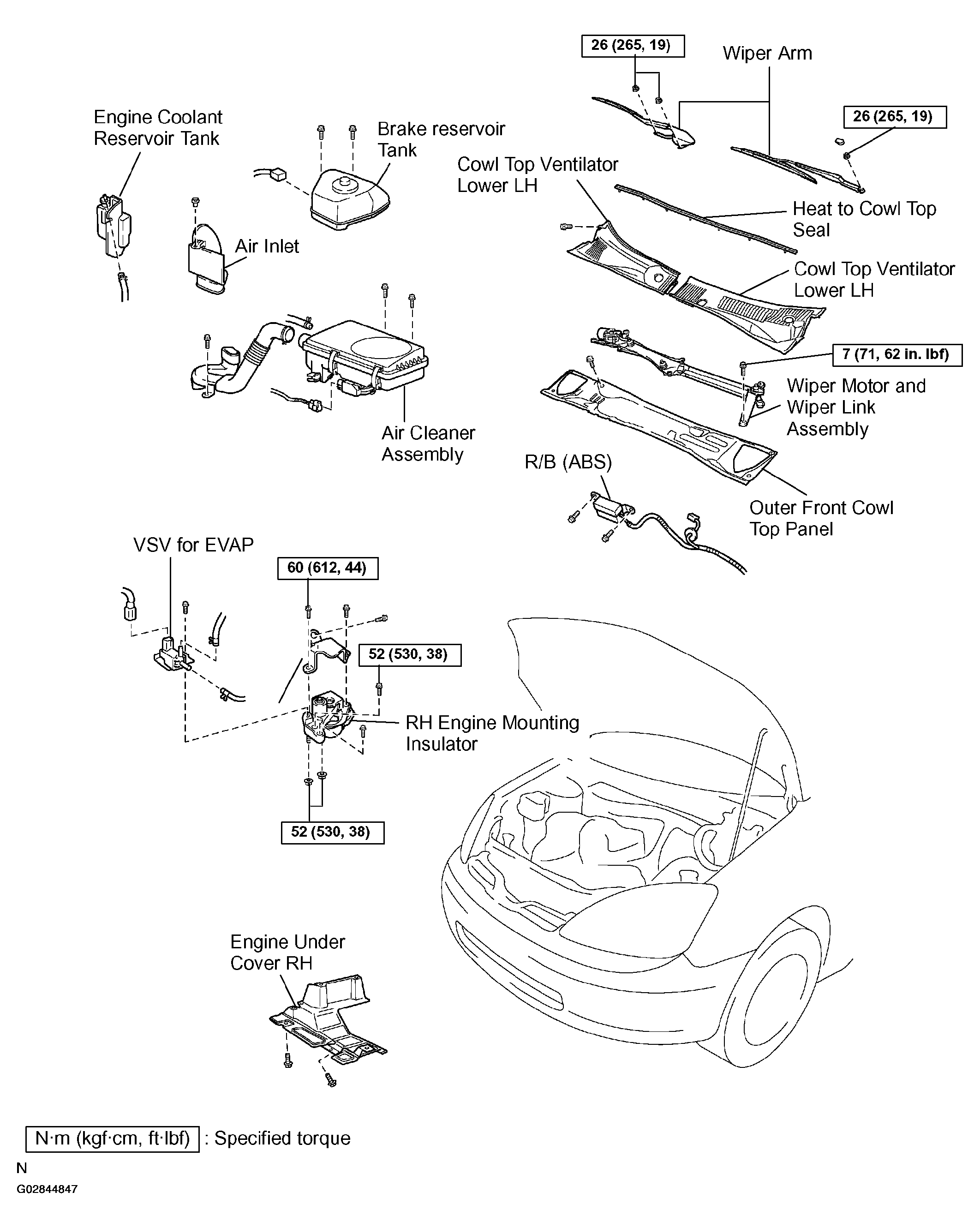

Fig 1: Identifying Components For Oil Pump Removal (1 Of 2)
G02844847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

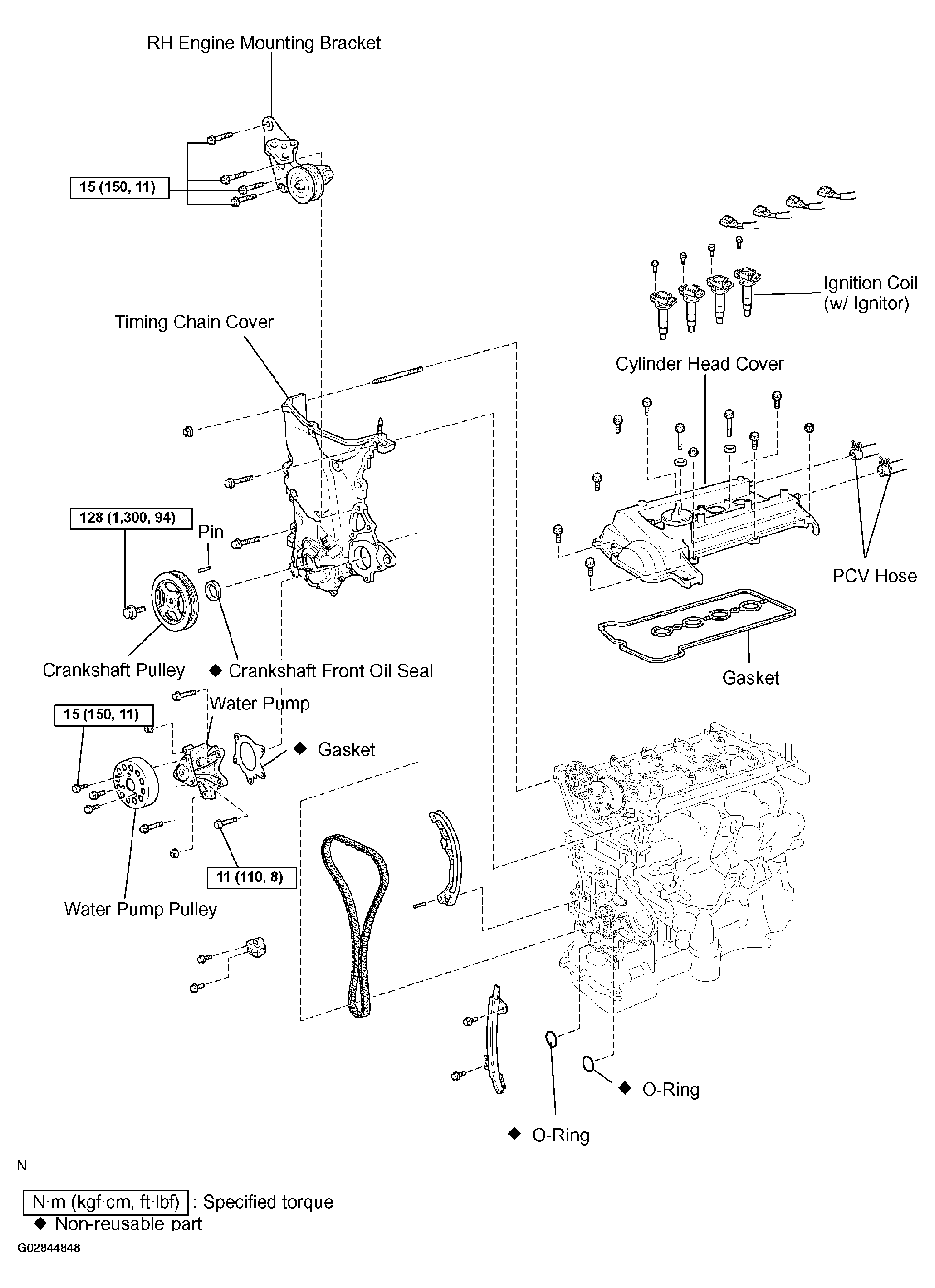

Fig 2: Identifying Oil Pump Components (2 Of 2)
G02844848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

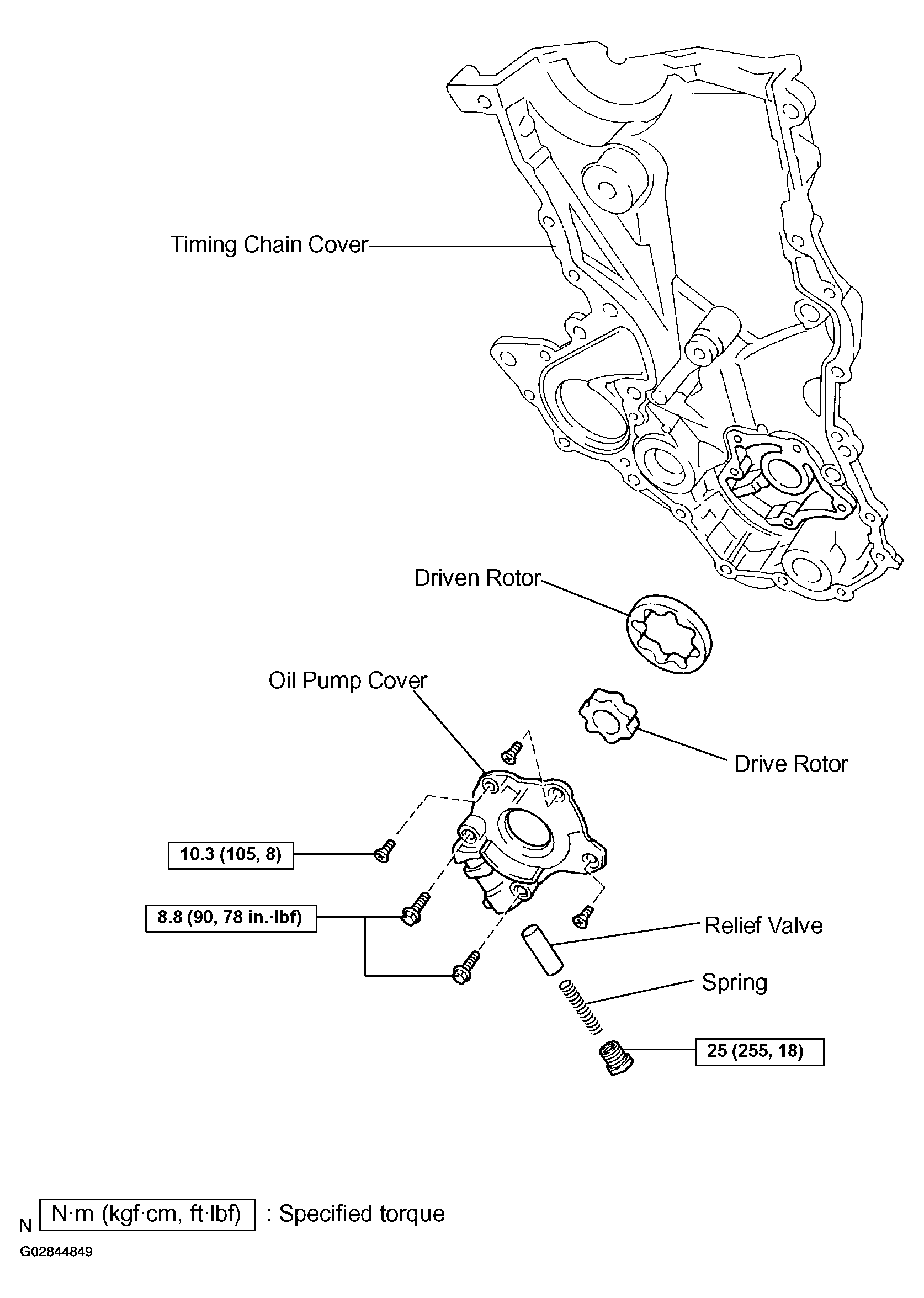

Fig 3: Identifying Oil Pump Components
G02844849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
