Oil Pump: Installation

INSTALL OIL PUMP
1. Place the drive and driven rotors into timing chain cover with the marks facing the oil pump cover side.

  Fig 1: Placing Drive And Driven Rotors Into Timing Chain Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the oil pump cover to the timing chain cover with the 2 bolts and 3 screws.

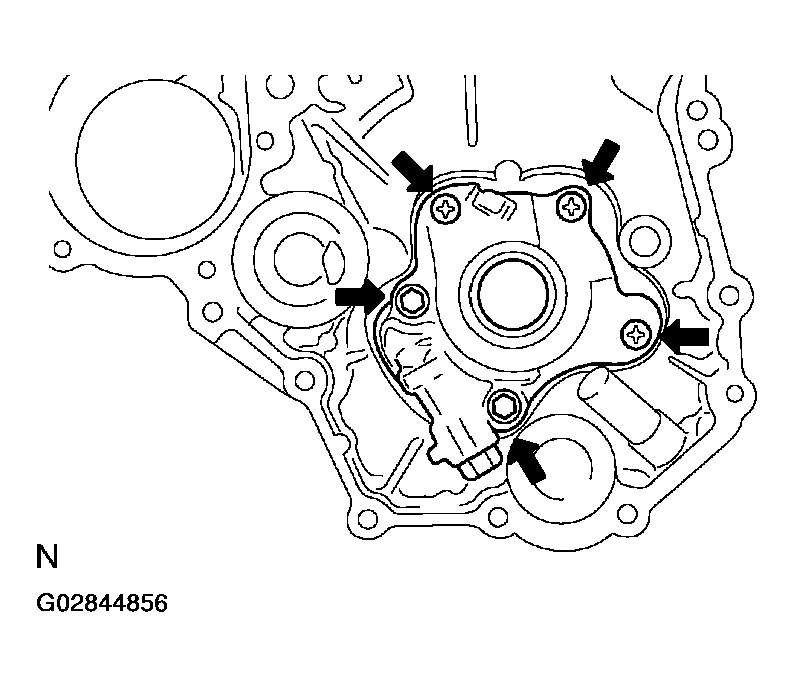

  Fig 2: Installing Oil Pump Cover To Timing Chain Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque:

  Bolt 8.8 N.m (90 kgf.cm, 78 in.lbf)

  Screw 10.3 N.m (105 kgf.cm, 8 ft.lbf)
INSTALL TIMING CHAIN COVER (See TIMING CHAIN INSTALLATION )
FILL WITH ENGINE OIL
CHECK FOR LEAKS
