Input Shaft Assembly: Disassembly

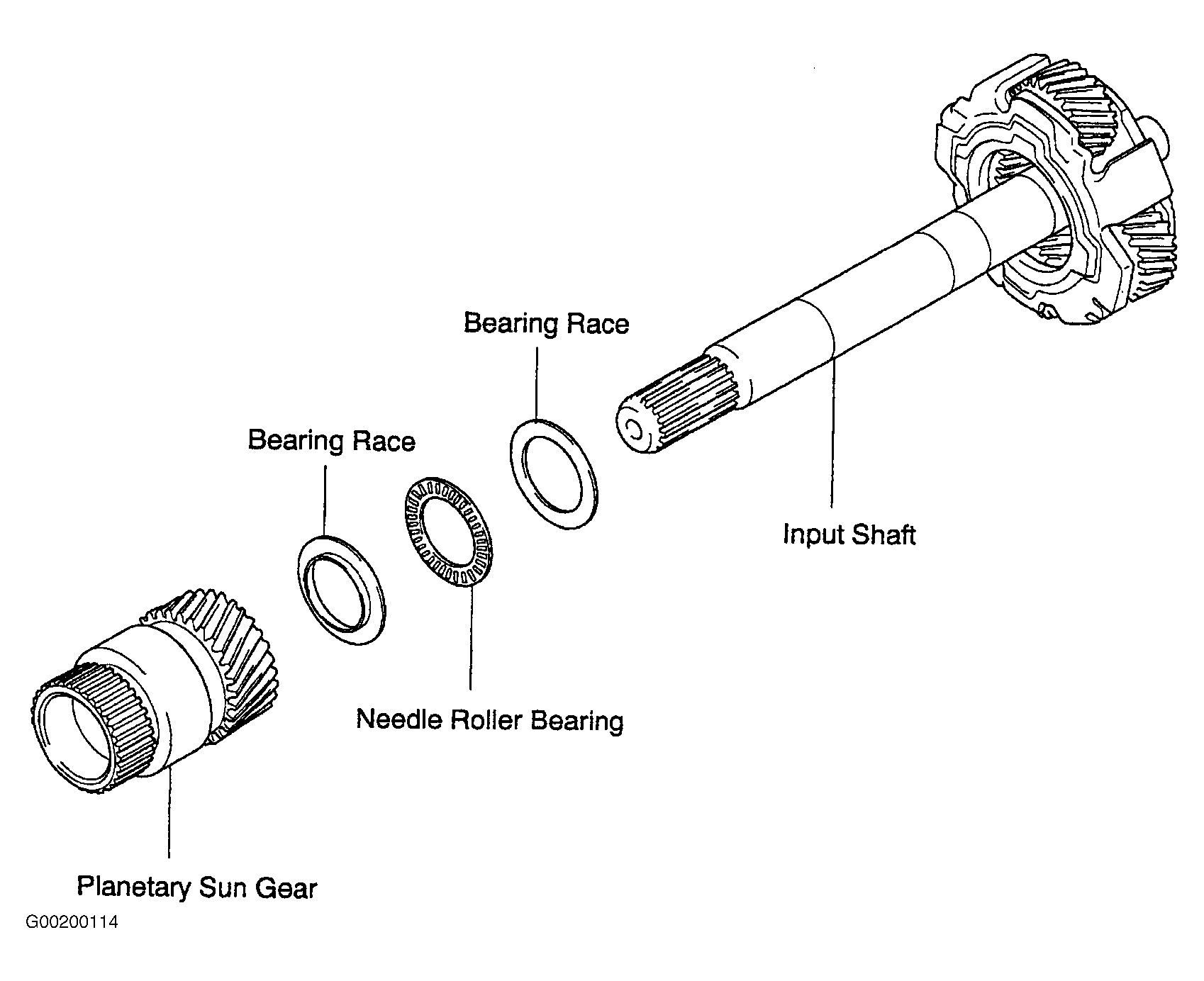

Remove planetary sun gear from input shaft. Using a screwdriver, remove needle roller bearing and 2 bearing races. See Figure.
