Combination Meter: Circuit

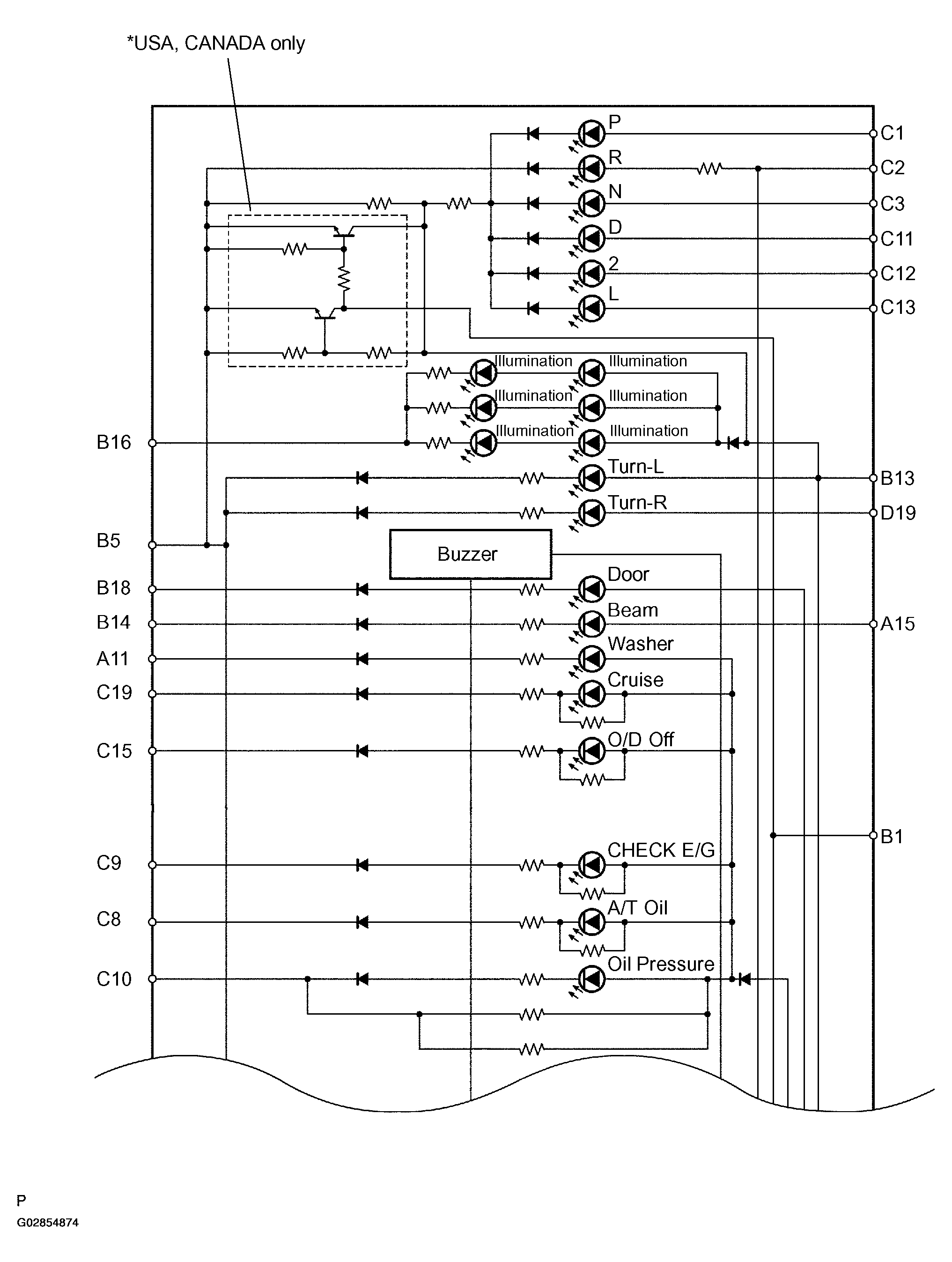

Fig 1: Combination Meter Circuit Diagram (1 Of 2)
G02854874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

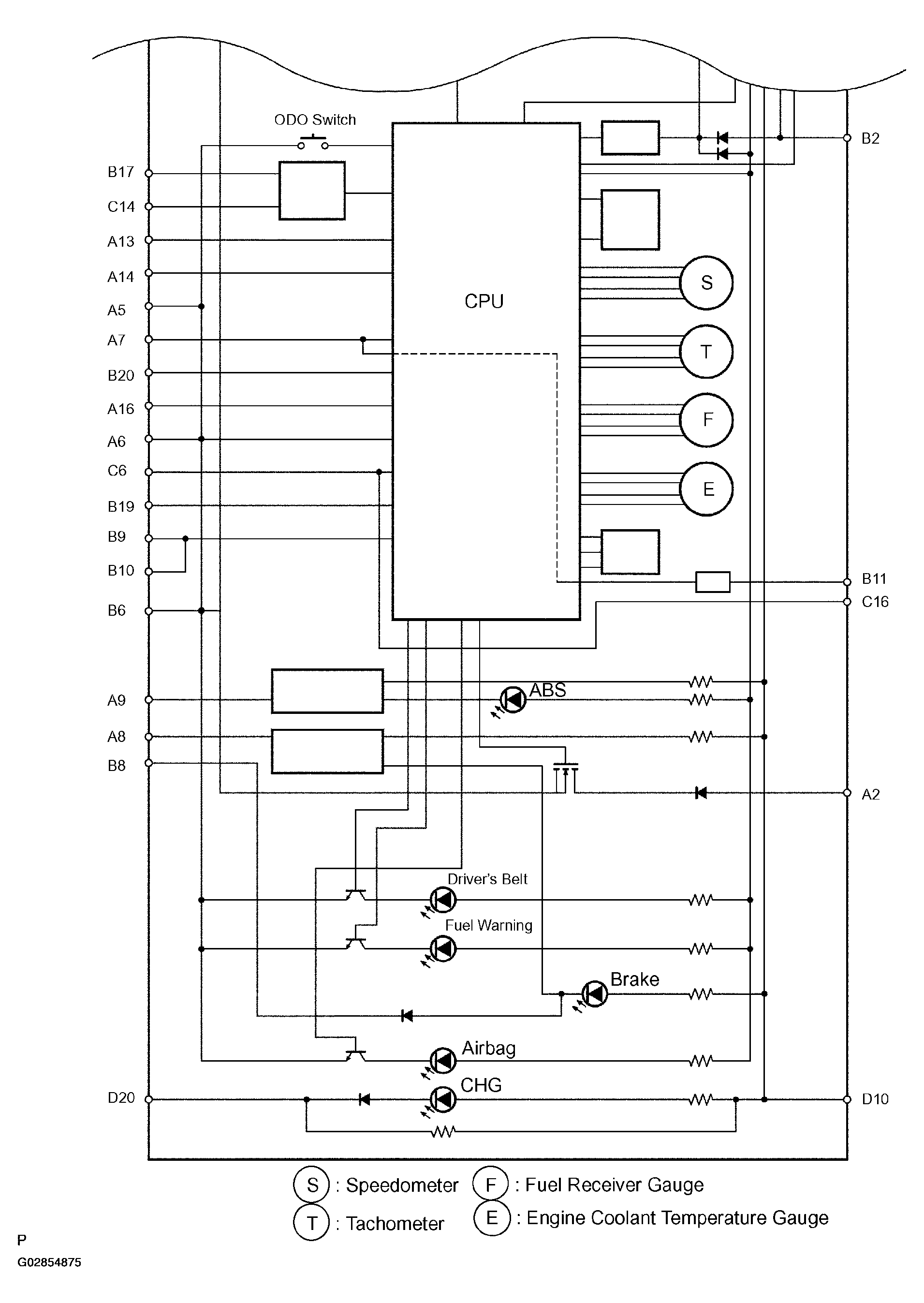

Fig 2: Combination Meter Circuit Diagram (2 Of 2)
G02854875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

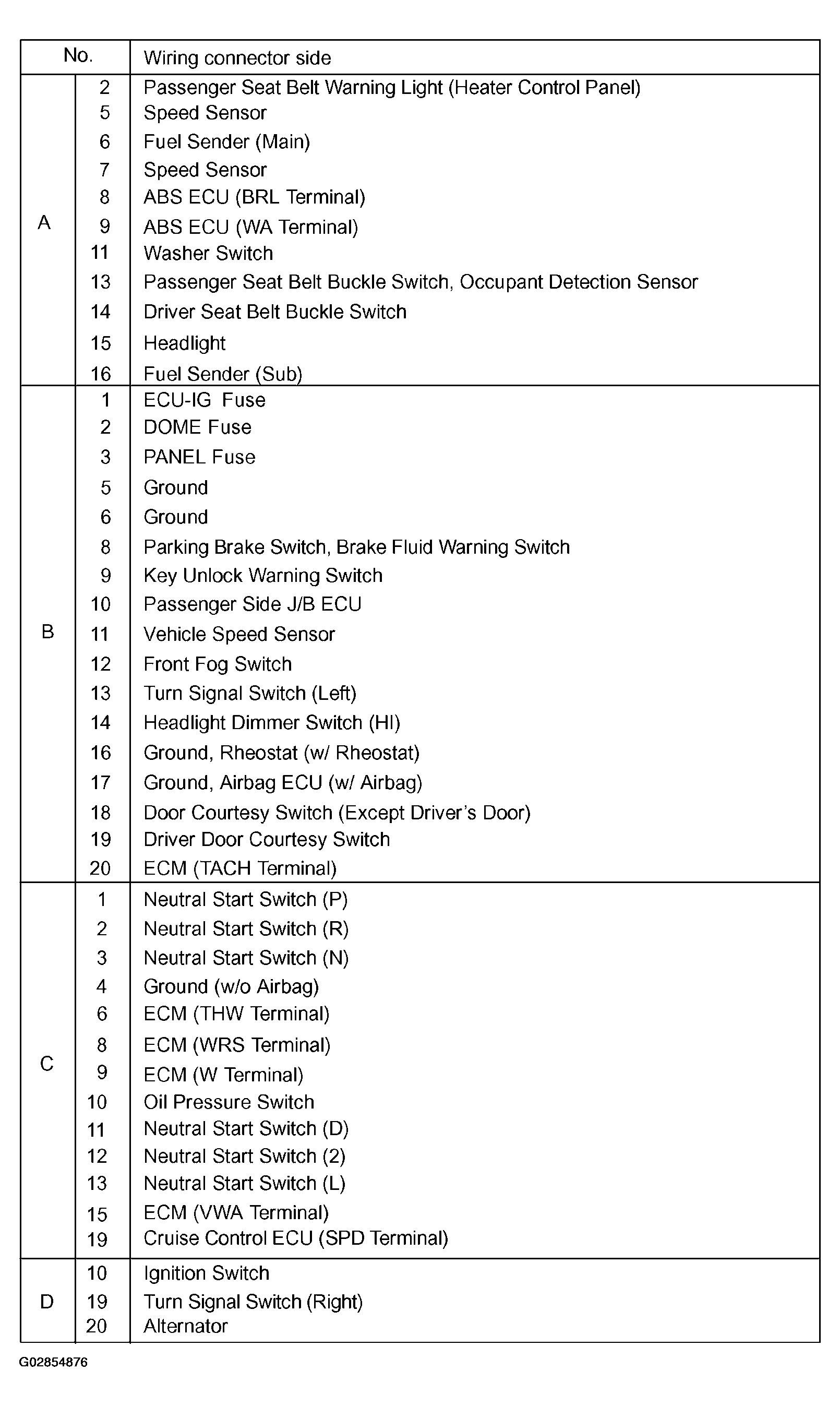

Fig 3: Combination Meter Circuit Identification
G02854876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
