Repair and Diagnosis: Electrical: Horns: Location

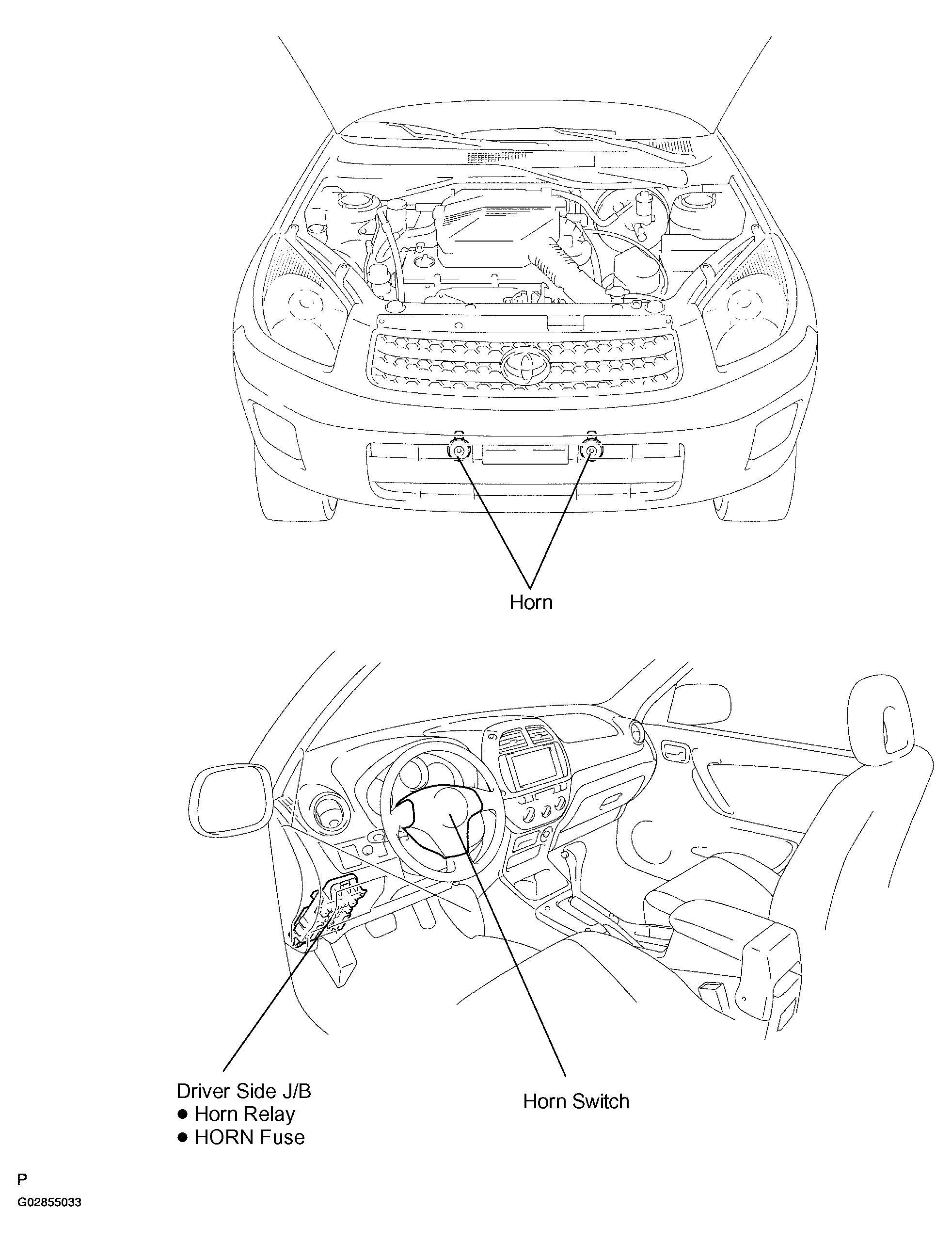

Fig 1: Locating Horn System Components
G02855033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
