Oil Pump: Reassembly

INSTALL DRIVE AND DRIVEN ROTORS
1. Place the drive and driven rotors into the pump body with the marks facing the pump body cover side.

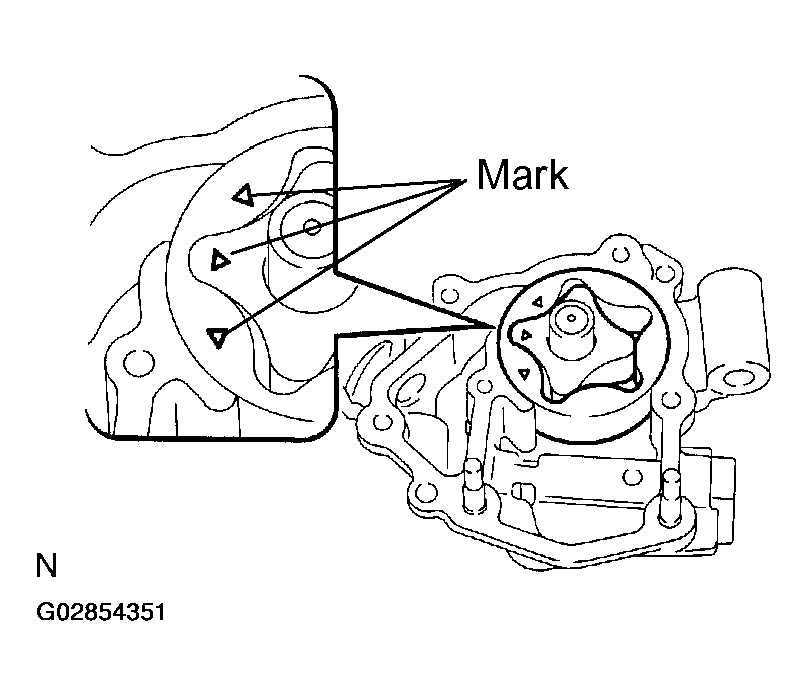

  Fig 1: Locating Pump Body Cover Side Mark
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the pump body cover with the 7 bolts.
  1. Torque: 8.8 N.m (90 kgf.cm, 80 in..lbf)
  Fig 2: Installing Pump Body Cover With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RELIEF VALVE
Insert the relief valve (1) and spring (2) into the pump body hole, and install the plug (3).

Fig 3: Inserting Relief Valve & Spring Into Pump Body Hole
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Torque: 49 N.m (500 kgf.cm, 35 ft.lbf)
