Section 486 (Combination Meter): Circuit

WARNING: This page is about a different car, the 2003 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

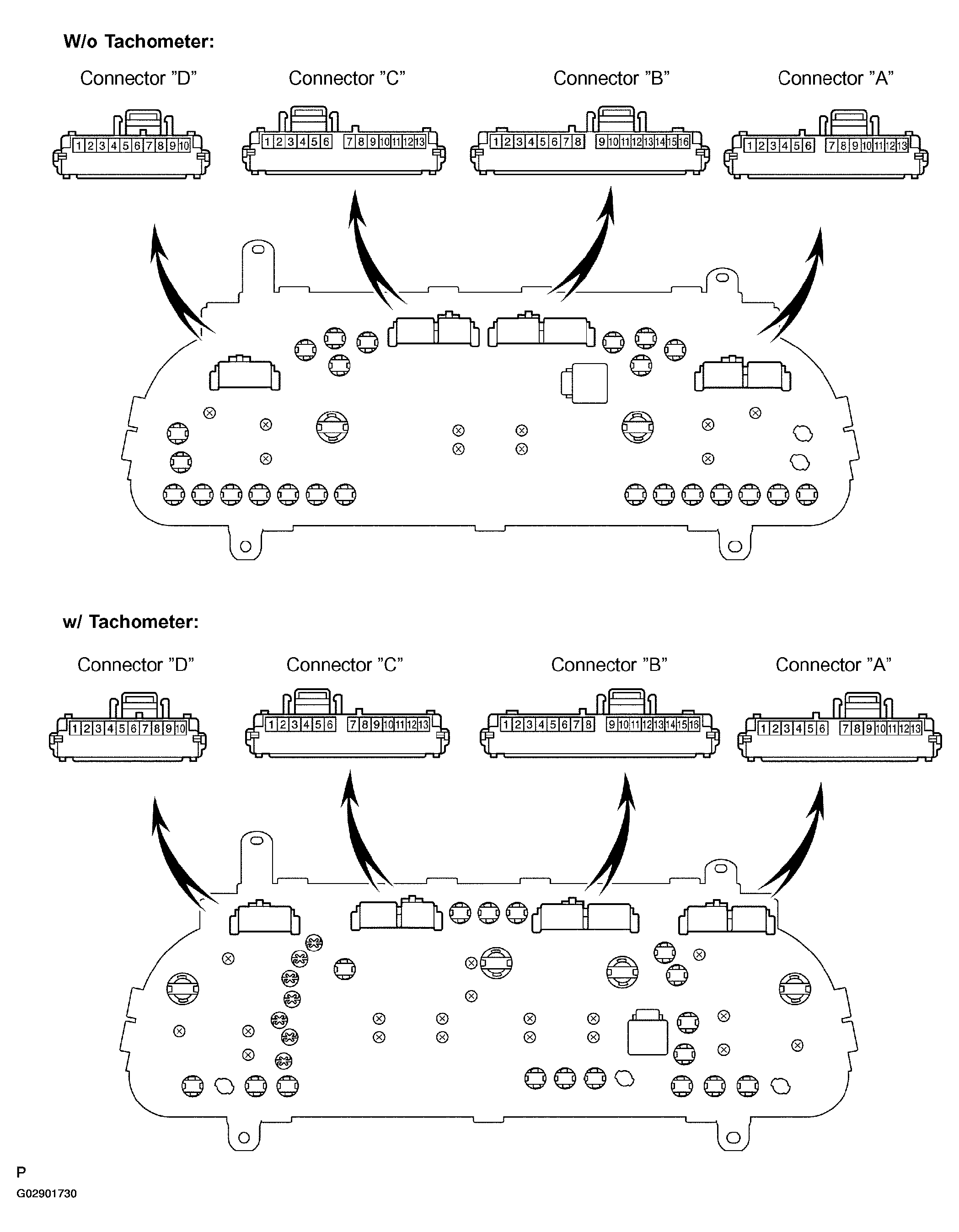

Fig 1: Identifying Combination Meter Connector Terminals
G02901730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

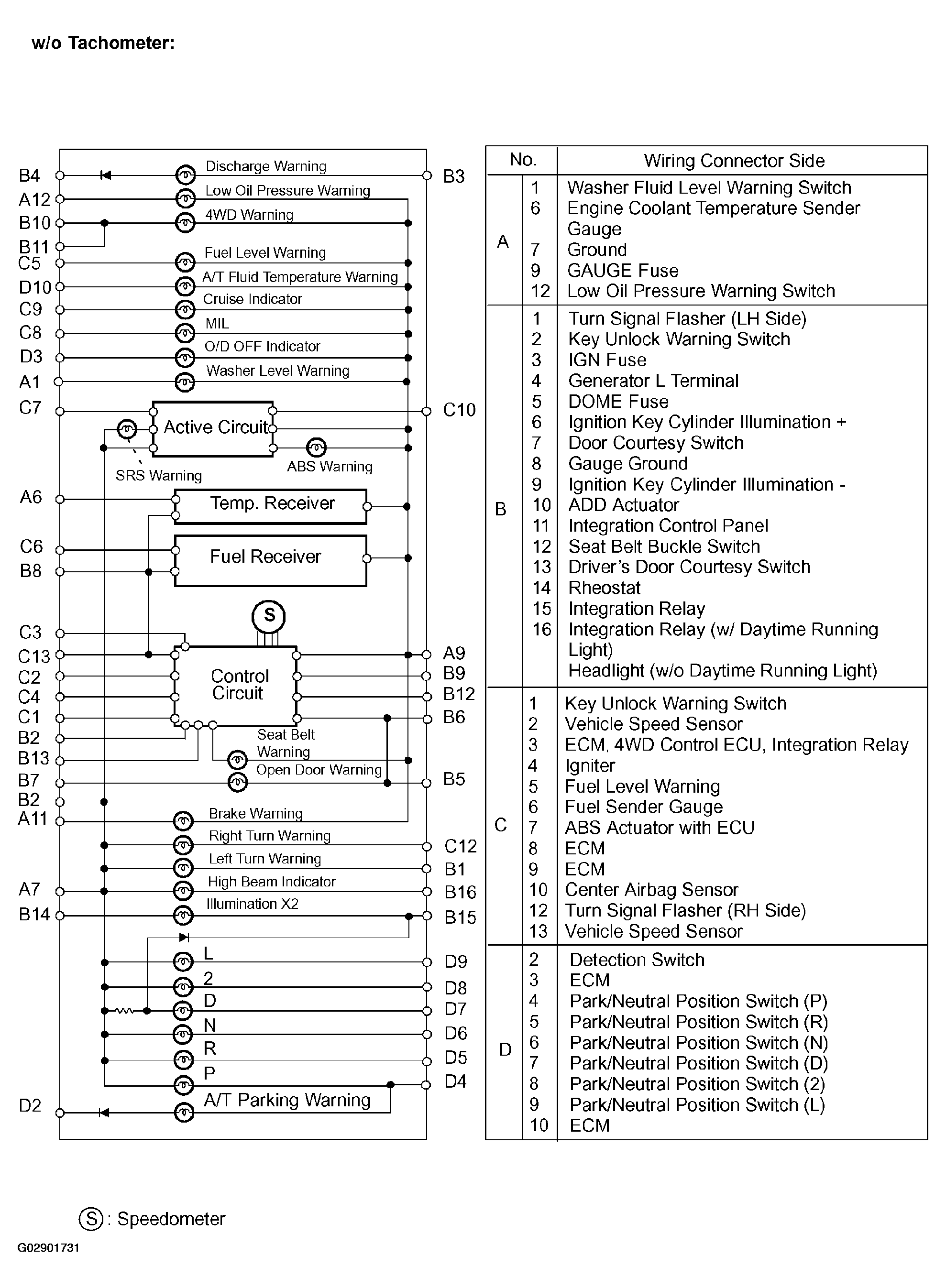

Fig 2: Combination Meter Circuit Diagram - W/O Tachometer
G02901731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

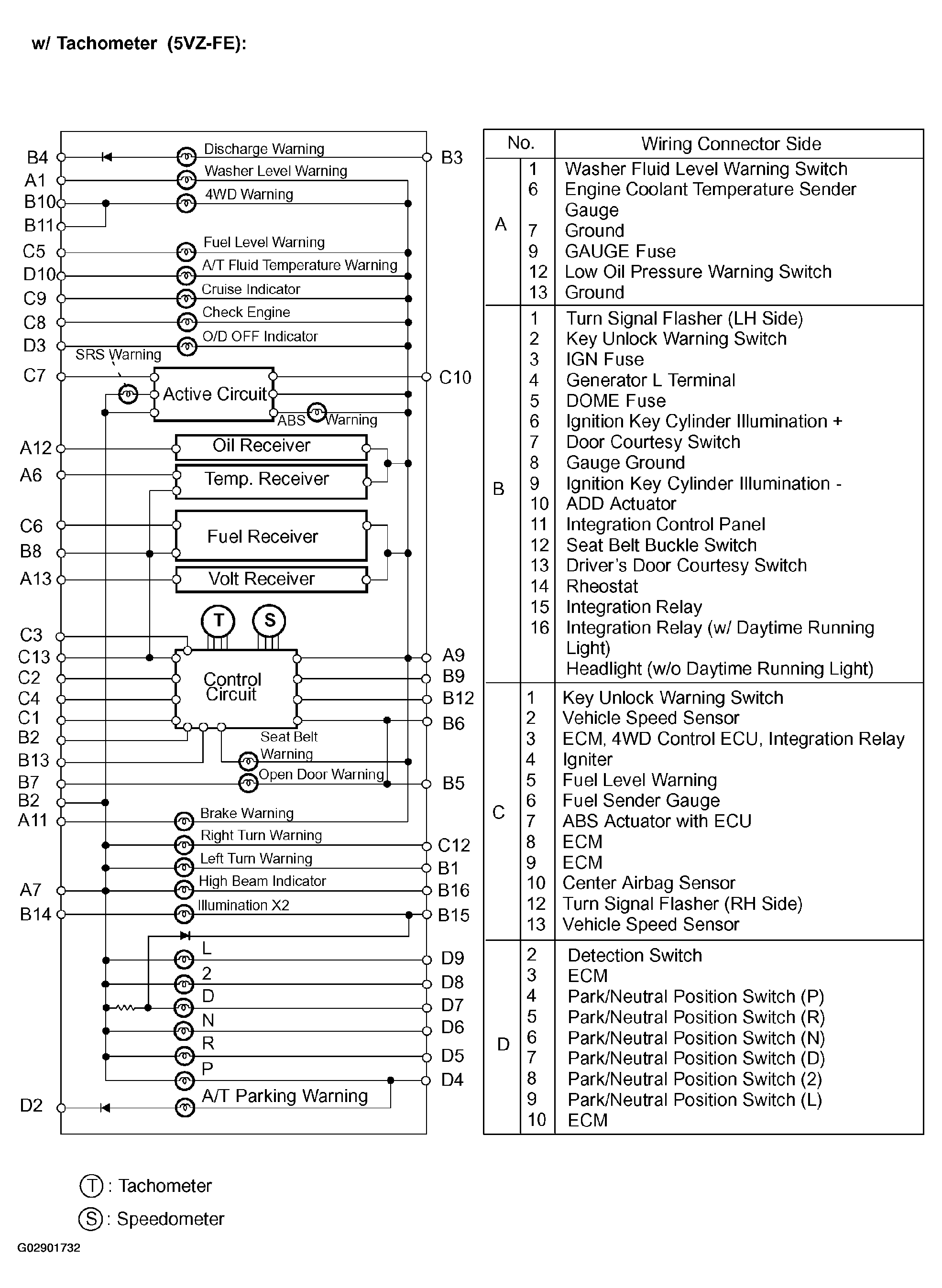

Fig 3: Combination Meter Circuit Diagram - W/Tachometer (5VZ-FE)
G02901732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

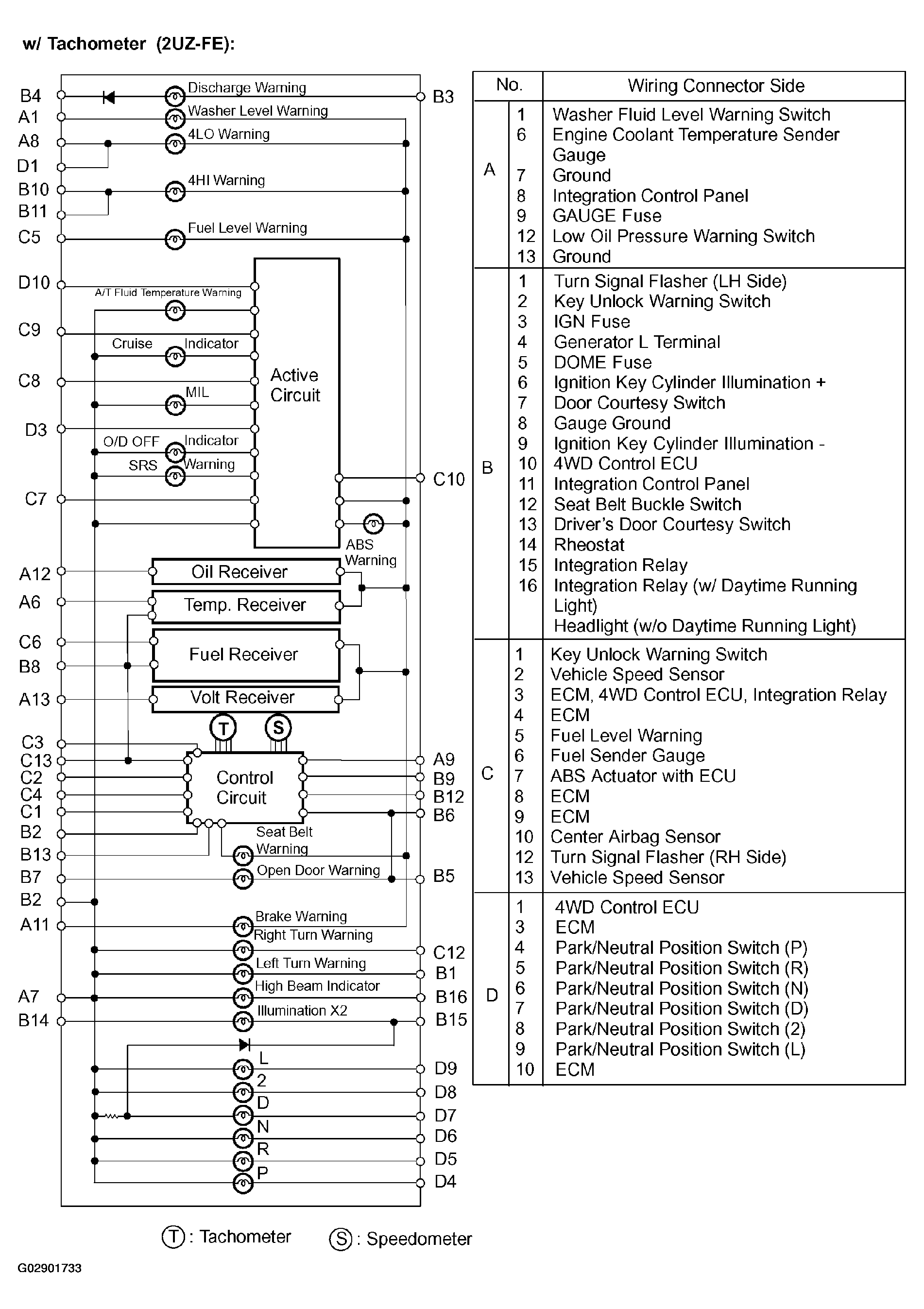

Fig 4: Combination Meter Circuit Diagram - W/Tachometer (2UZ-FE)
G02901733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
