Body Clips: Replacement

The removal and installation methods of typical clips used in body parts are shown in the table below.

NOTE: If the clip is damaged during the operation, always replace it with a new clip.

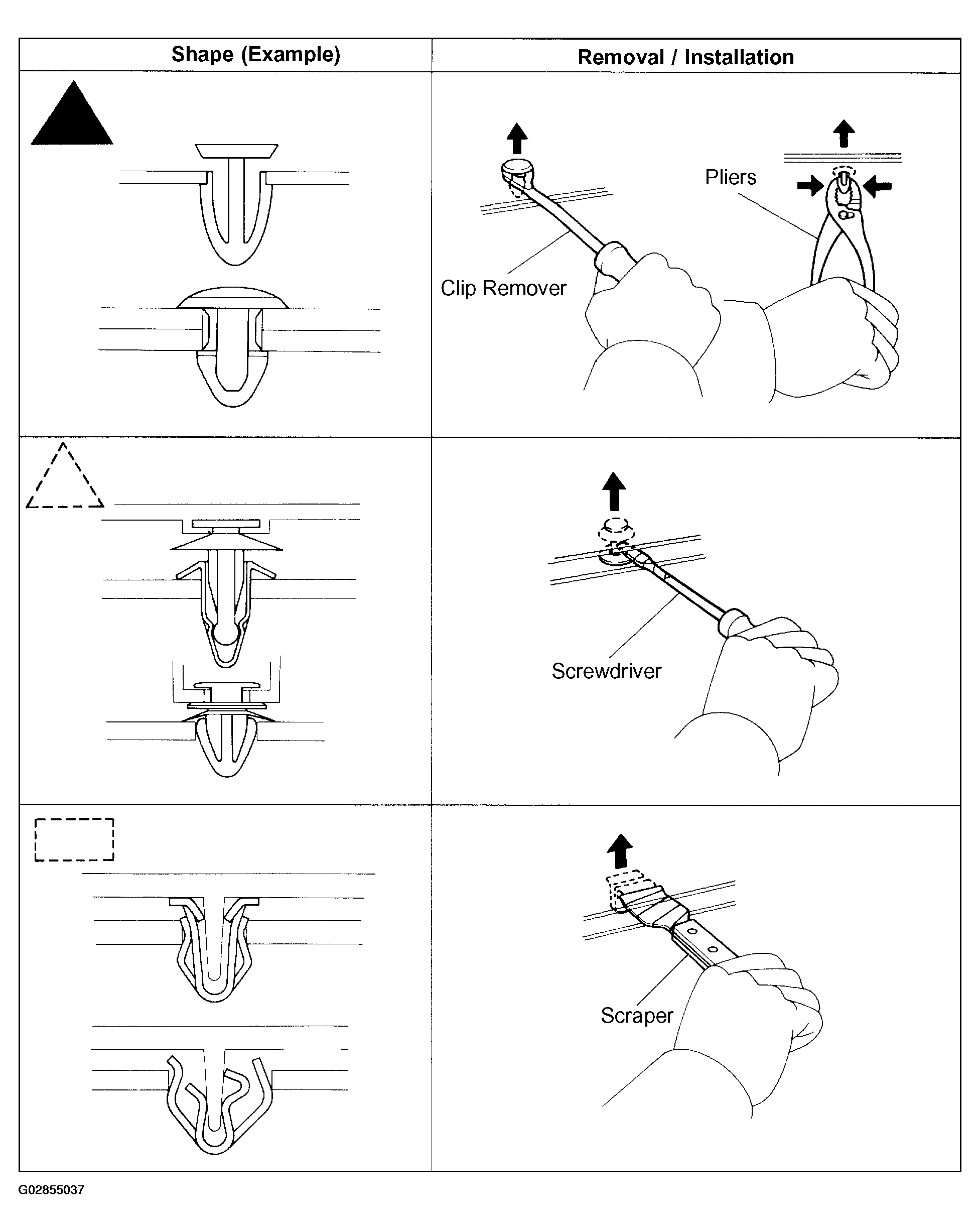

Fig 1: Removing & Installing Methods Of Typical Clips (1 Of 2)
G02855037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

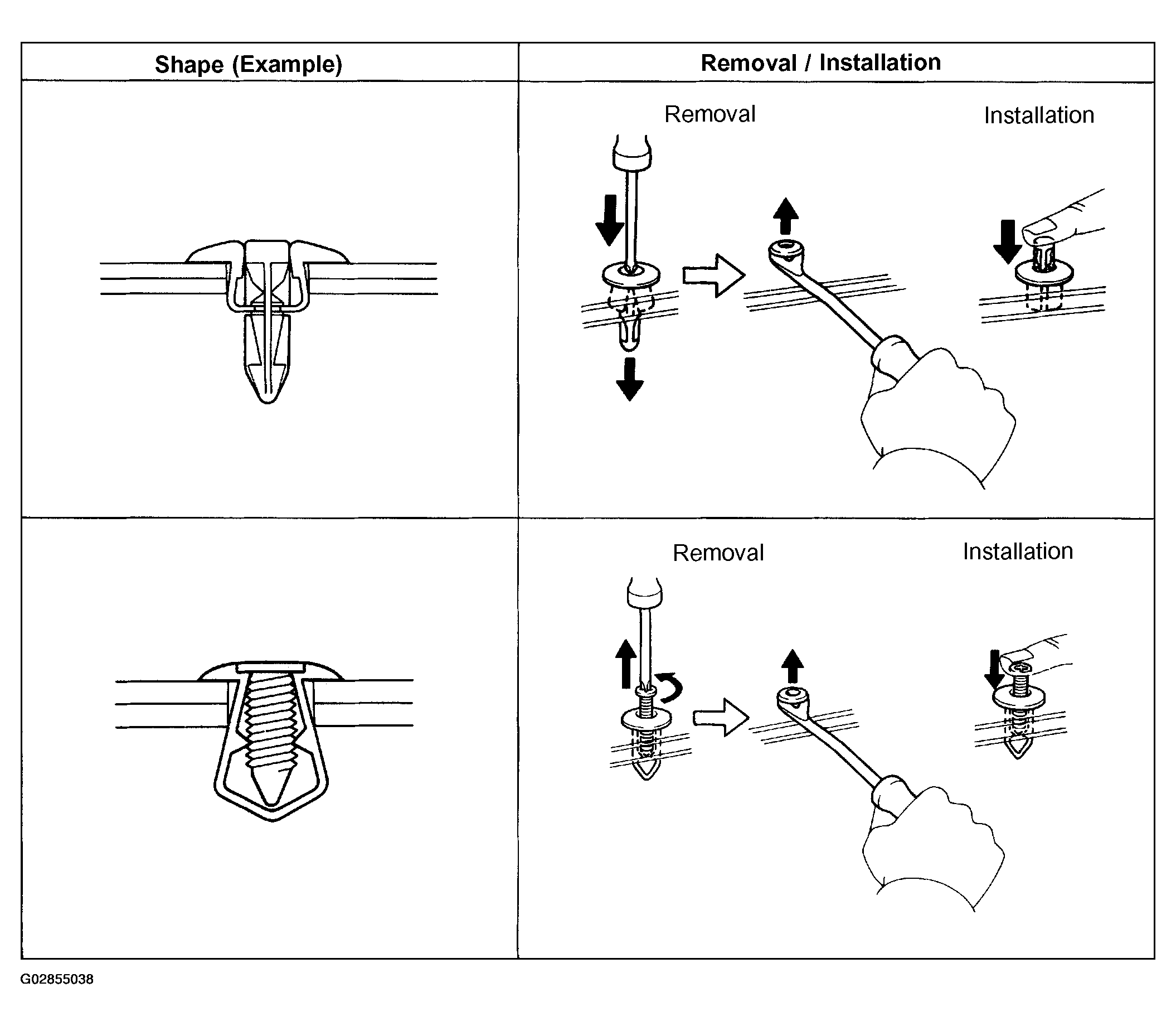

Fig 2: Removing & Installing Methods Of Typical Clips (1 Of 2)
G02855038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
