Timing Chain: Components

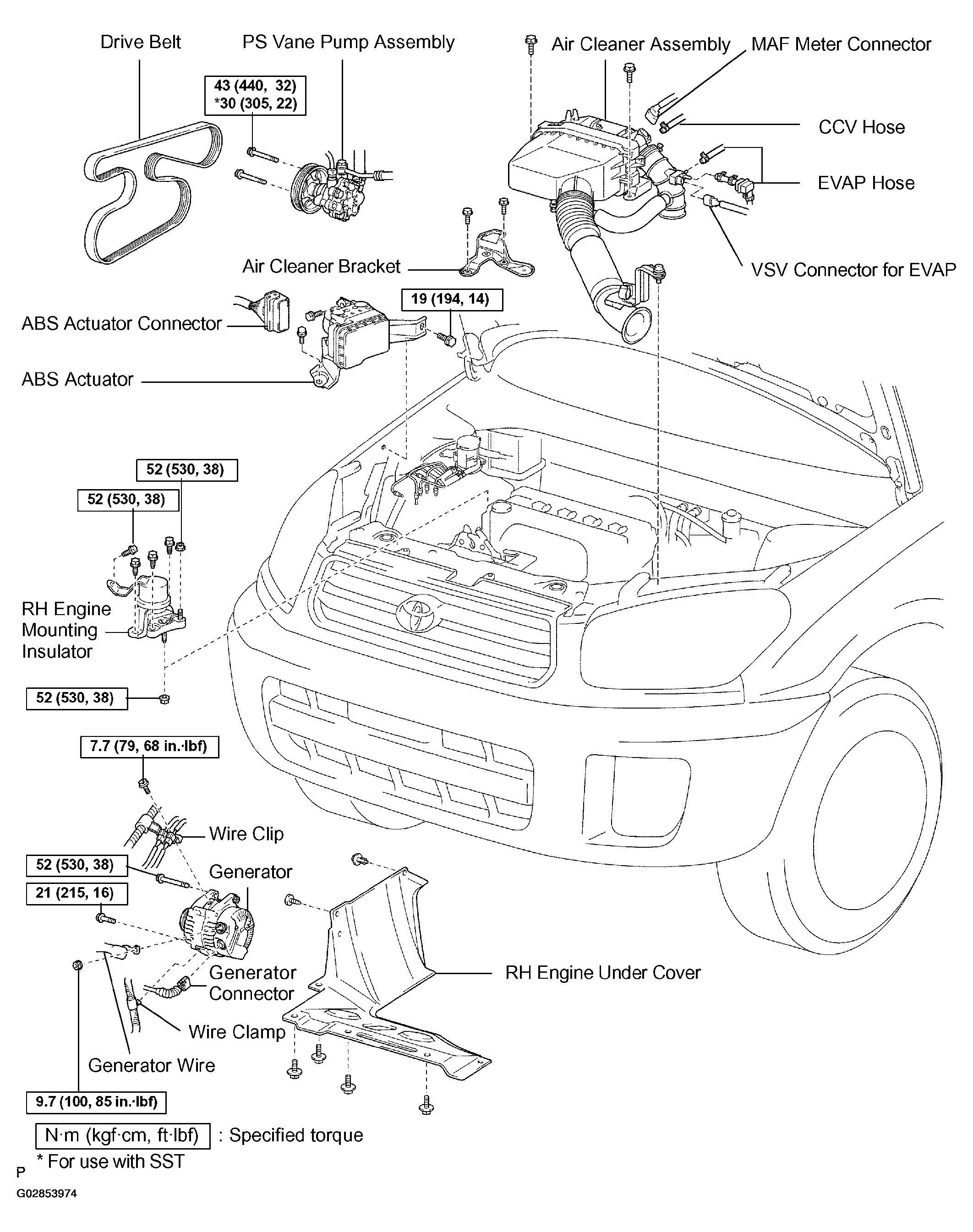

Fig 1: Timing Chain Replacement Components With Torque Specifications (1 Of 2)
G02853974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

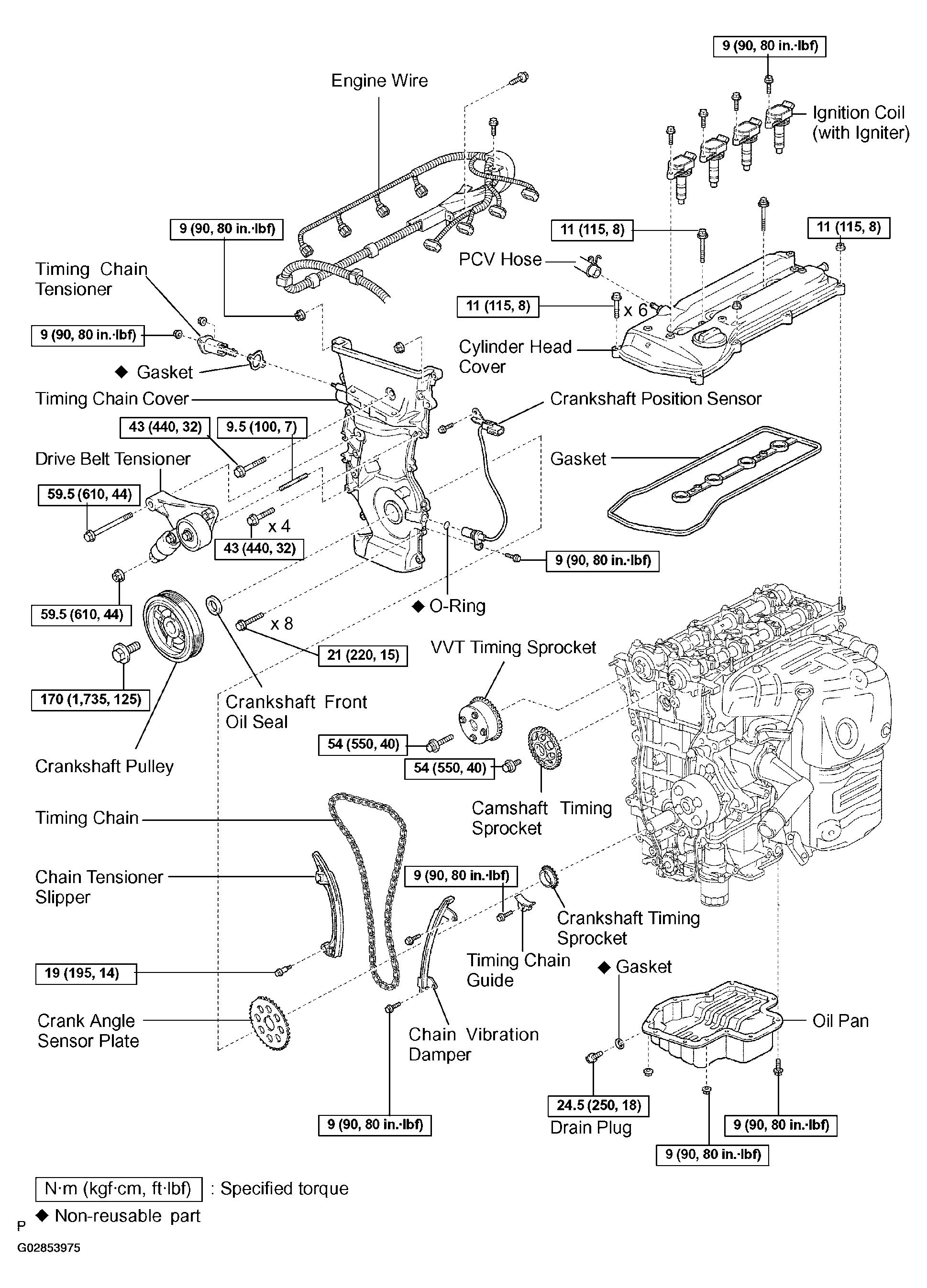

Fig 2: Timing Chain Replacement Components With Torque Specifications (2 Of 2)
G02853975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
