Diagnostic Trouble Code Chart

NOTE: Before replacing or removing the part, turn the ignition switch OFF.

NOTE:

Using SST 09843-18020 or 09843-18040, connect the terminals Tc and E₁ of DLC1 or Tc and CG of DLC3.
If any abnormality is not found when inspecting each inspection part, inspect ECU.
If a malfunction code is displayed during the DTC check, check the circuit listed for that code.

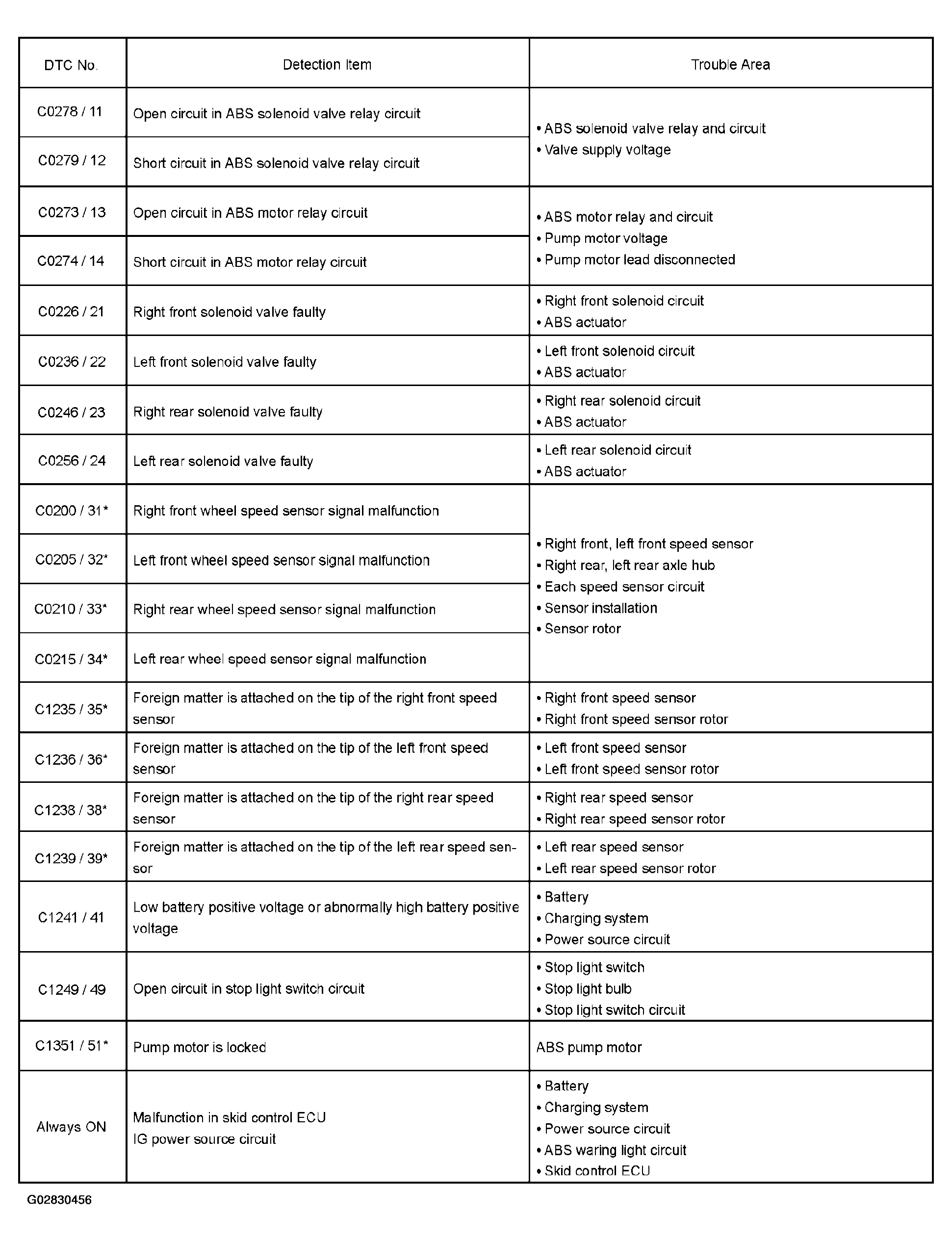

Fig 1: Diagnostic Trouble Code Chart

*: As the DTC cannot be erased by replacing parts alone, do either of the following operations.

Clear the DTC (See PRE-CHECK ).
At the vehicle speed of 20 km/h (12 mph), drive the vehicle for 30 sec. or more.
