Charging System: Generator: Removal

Loosen the pivot bolt, adjusting lock bolt and adjusting bolt, and remove the drive belt.

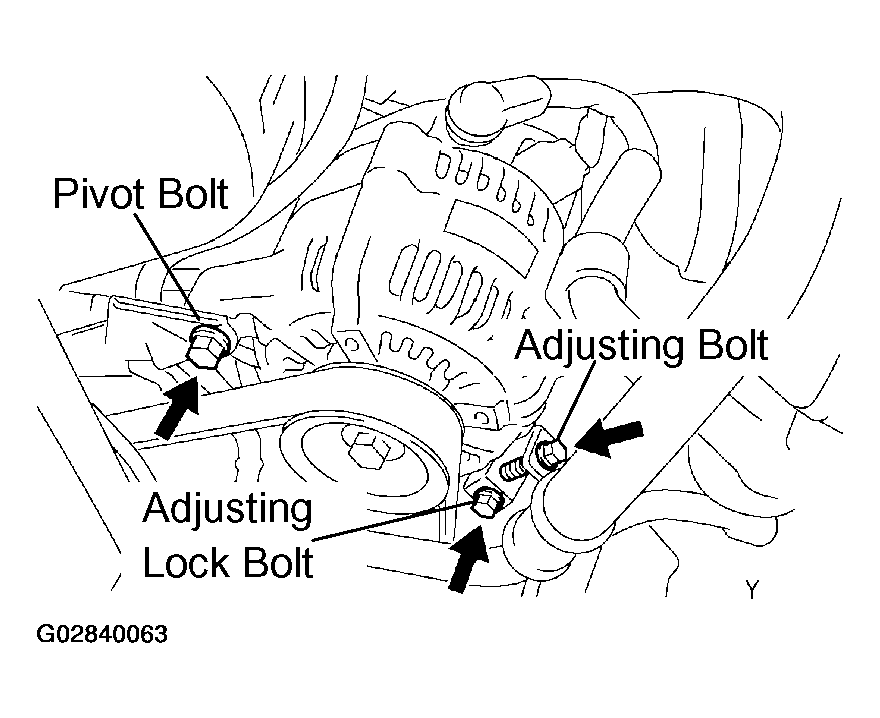

Fig 1: Loosening Bolts & Removing Drive Belt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque:

Pivot bolt: 56 N.m (570 kgf.cm, 41 ft.lbf)

Lock bolt: 18 N.m (180 kgf.cm, 13 ft.lbf)

1. Disconnect the generator connector.
2. Remove the nut, and disconnect the generator wire.
3. Disconnect the wire harness from the clip.
4. Remove the pivot bolt, plate washer, adjusting lock bolt and generator.

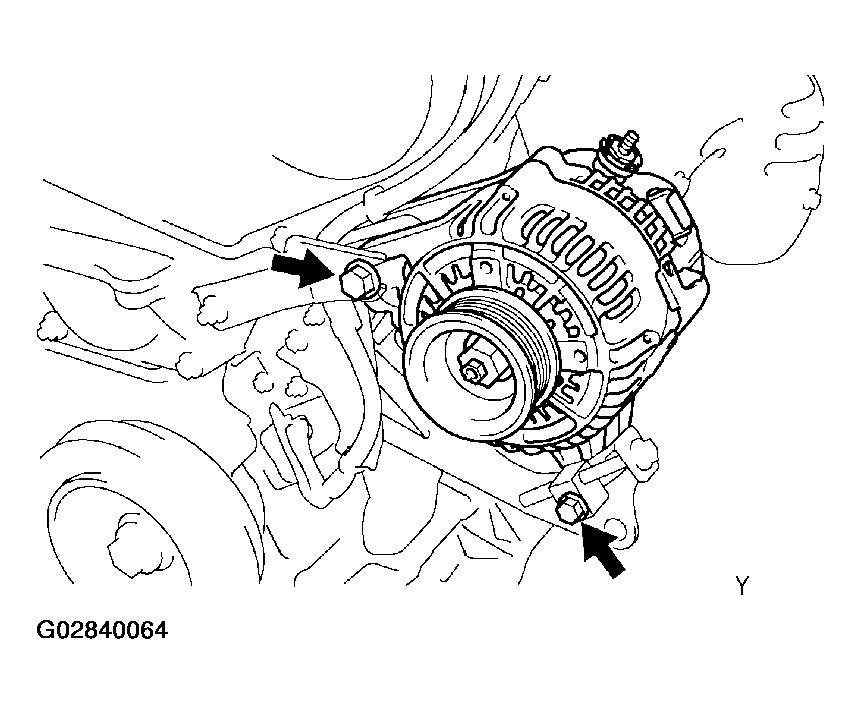

   Fig 2: Removing Generator & Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
