Engine Exhaust Assembly: Components: V6

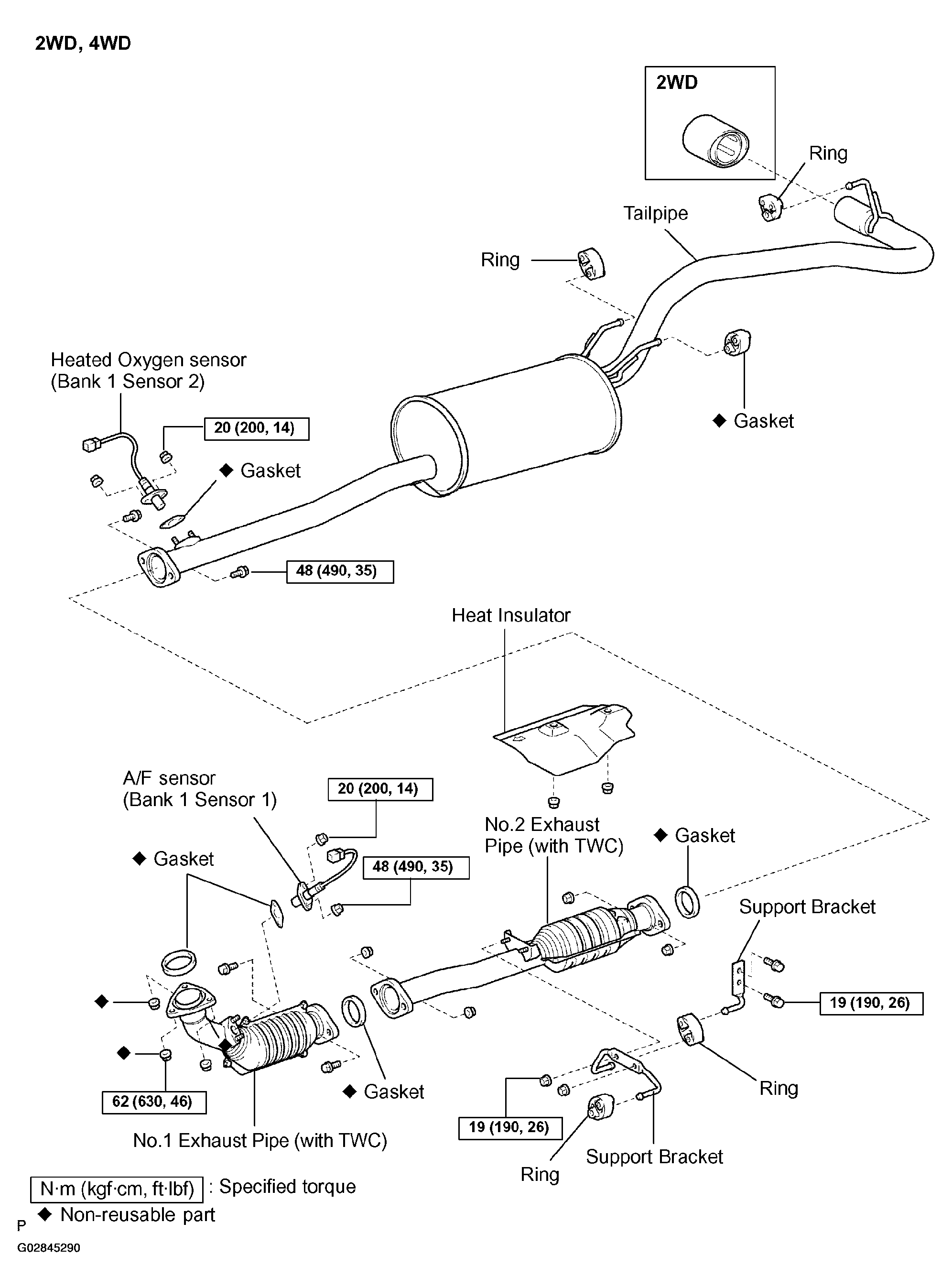

Fig 1: Exploded View Of Exhaust System Components
G02845290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
