Seat Belt: Inspection

WARNING: Replace the seat belt assembly (outer belt, inner belt, bolts, nuts or sill-bar) if it has been used in a severe impact. The entire assembly should be replaced even if damage is not obvious.
  1. Except manual type:
    NOTE: Conduct this test in a safe area. If the belt does not lock, remove the belt mechanism assembly and conduct the following static check. Also, whenever installing a new belt assembly, verify the proper operation before installation.

    RUNNING TEST (IN SAFE AREA)

    1. Fasten the front seat belts.
    2. Drive the car at 10 mph (16 km/h) and slam on the brakes. Check that the belt locks and cannot be extended at this time.
  2. Driver's seat belt (ELR):

    STATIC TEST

    1. Make sure that the belt locks when pulled out quickly.
    2. Remove the locking retractor assembly.
    3. Tilt the retractor slowly.
    4. Make sure that the belt can be pulled out at a tilt of 15 degrees or less, and cannot be pulled out over 45 degrees of tilt.

    If a problem is found, replace the assembly.

  3. Except driver's seat belt (ALR/ELR):

    STATIC TEST

    1. Make sure that the belt locks when pulled out quickly.

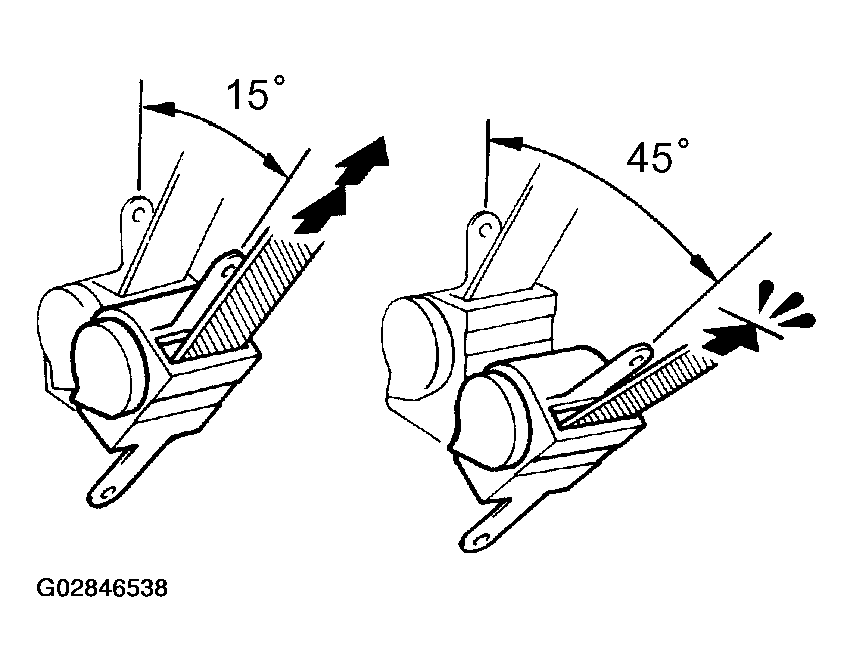

      Fig 1: Testing Self Locking Mechanism
      G02846538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the locking retractor assembly.
    3. Pull out the whole belt and measure the length of the whole belt.

      Then retract the belt slightly and pull it out again

    4. Make sure that the belt cannot be extended further.

      If a problem is found, replace the assembly.

    5. Retract the whole belt, then pull out the belt until 200 mm (7.87 in.) of belt remains retracted.
      Fig 2: Testing Retractor Operation
      G02846539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Tilt the retractor slowly.
    7. Make sure that the belt can be pulled out at a tilt of 15 degrees or less, and cannot be pulled out at over 45 degrees of tilt.
      Fig 3: Testing Correct Release Operation
      G02846540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If a problem is found, replace the assembly.

  4. Manual type:

    TESTING

    1. Adjust the belt to the proper length.
      Fig 4: Testing Seat Belt Adjuster
      G02846541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply a firm load to the belt.
    3. Make sure that the belt does not extend.
