Wheel Alignment Specifications & Adjustment Procedures: Specifications

Use illustrations for wheel alignment specifications. See Fig 1-Fig 8 .

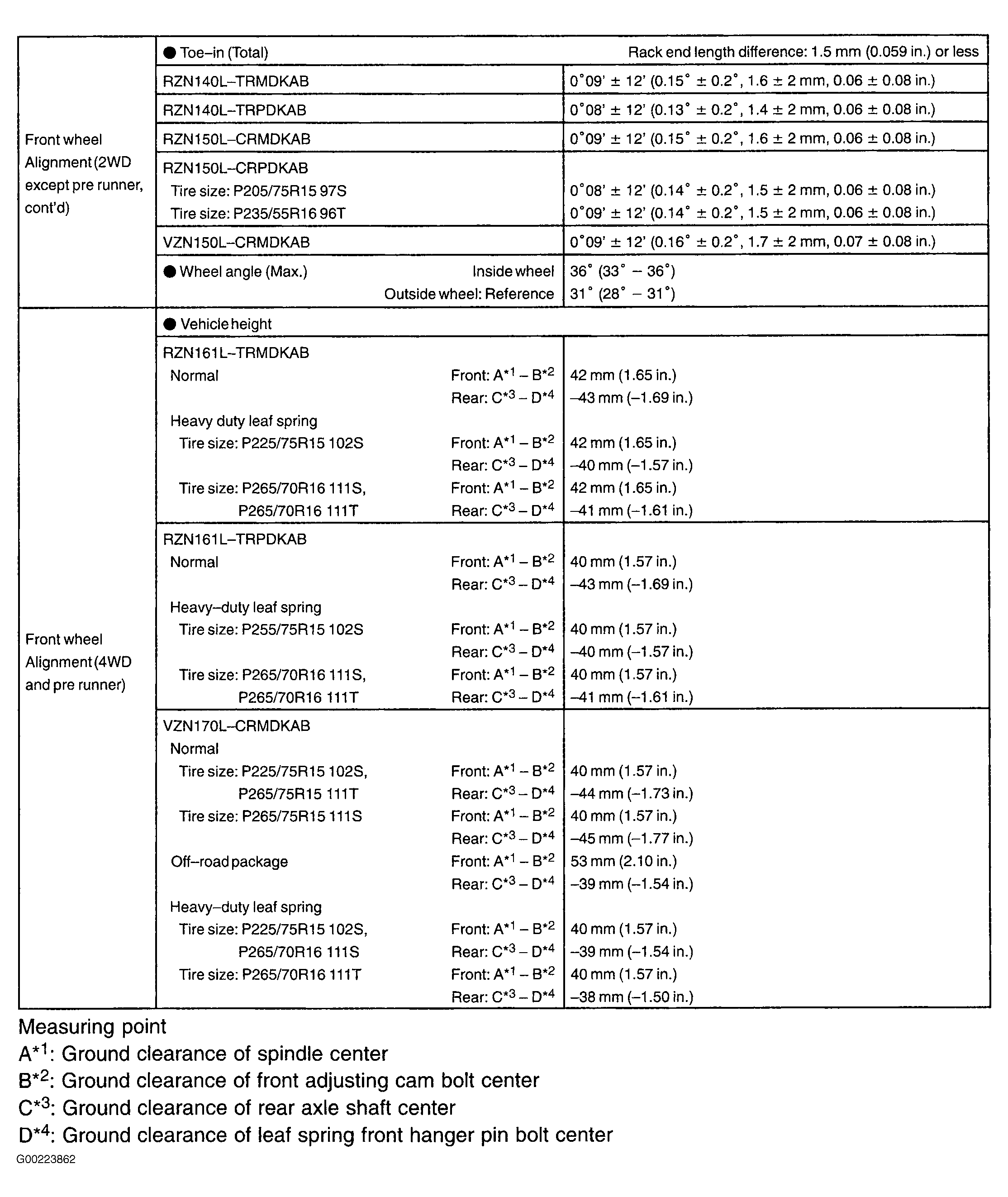

Fig 1: Wheel Alignment Specifications (Tacoma - 1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

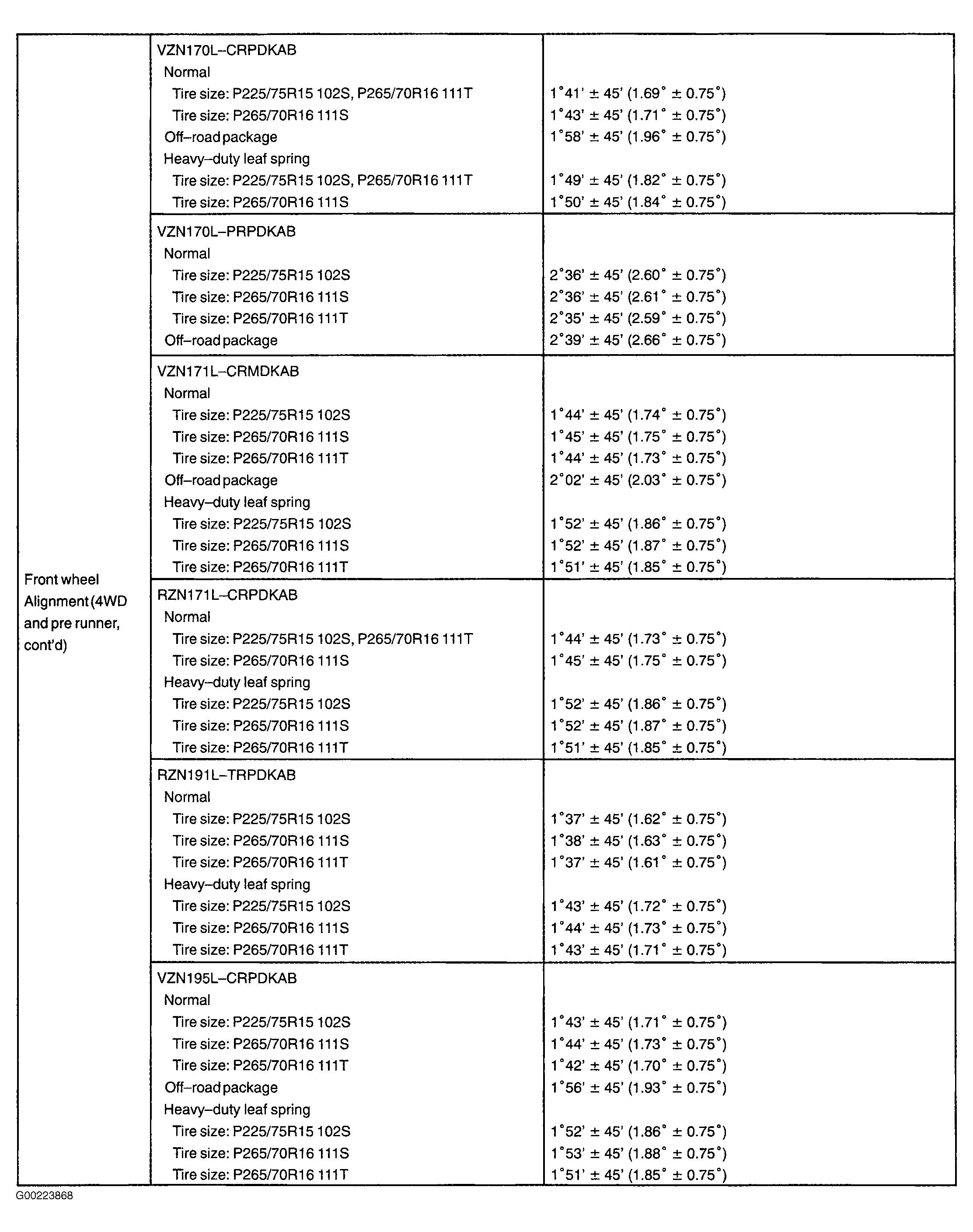

Fig 2: Wheel Alignment Specifications (Tacoma - 2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

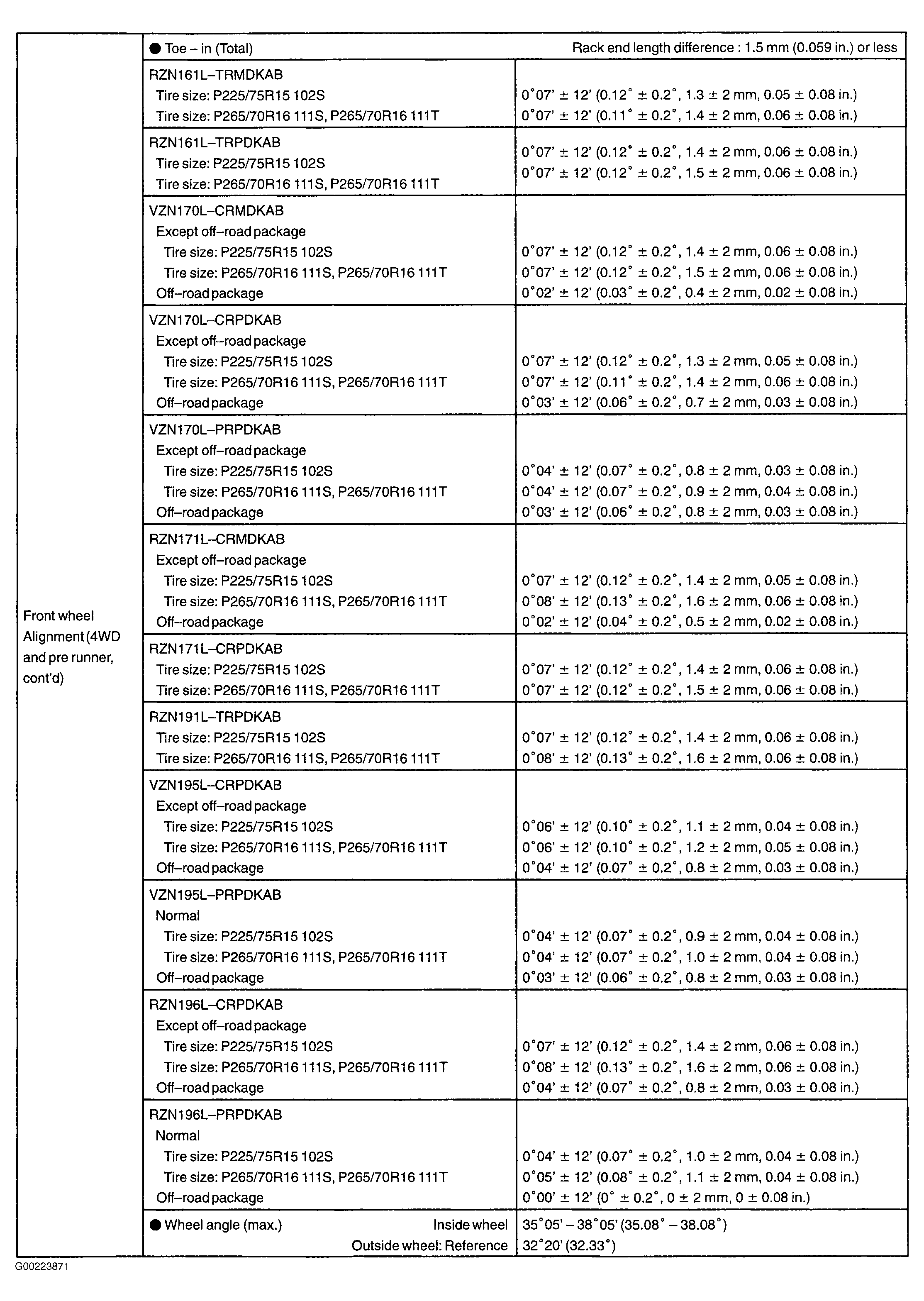

Fig 3: Wheel Alignment Specifications (Tacoma - 3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

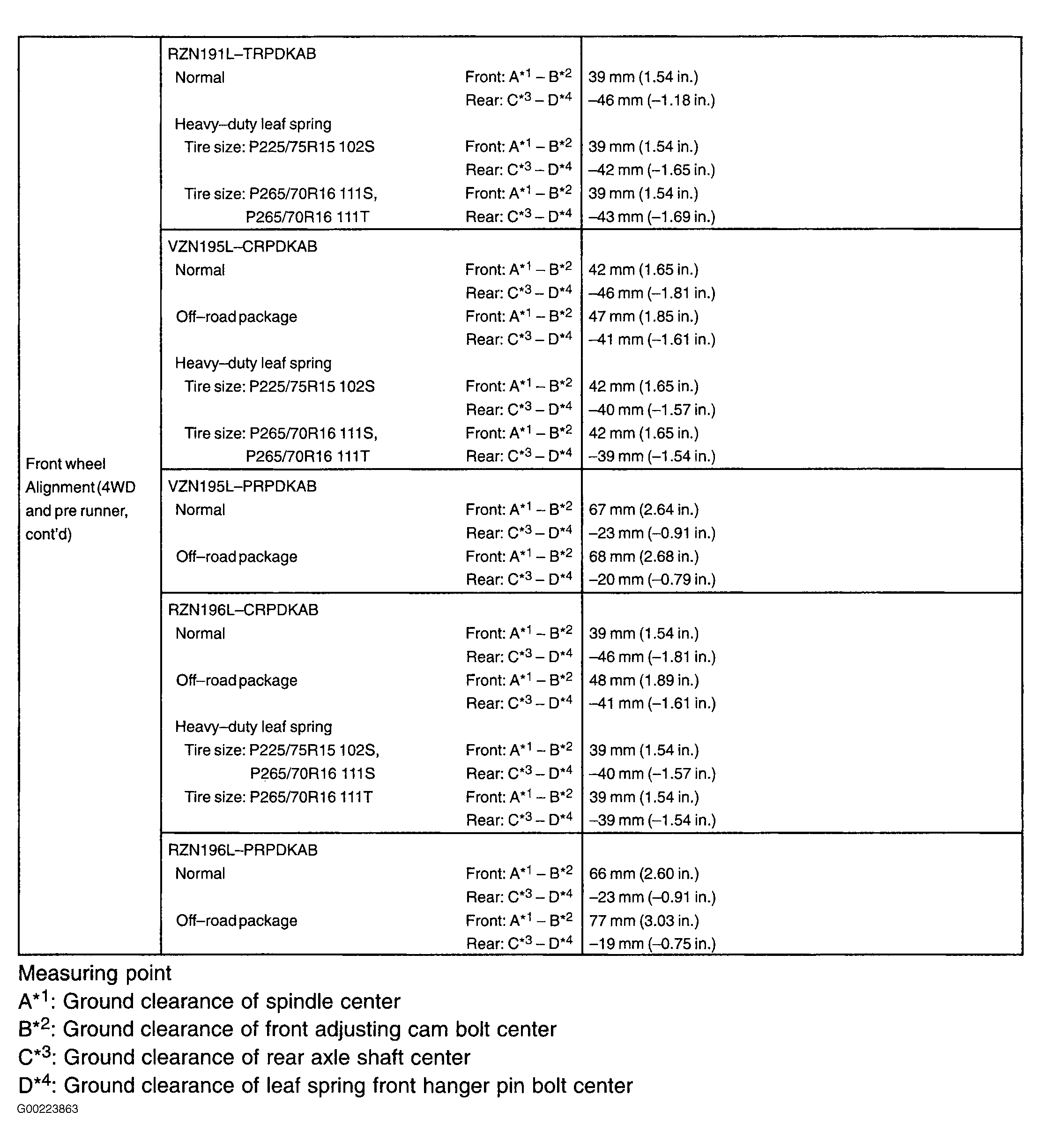

Fig 4: Wheel Alignment Specifications (Tacoma - 4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

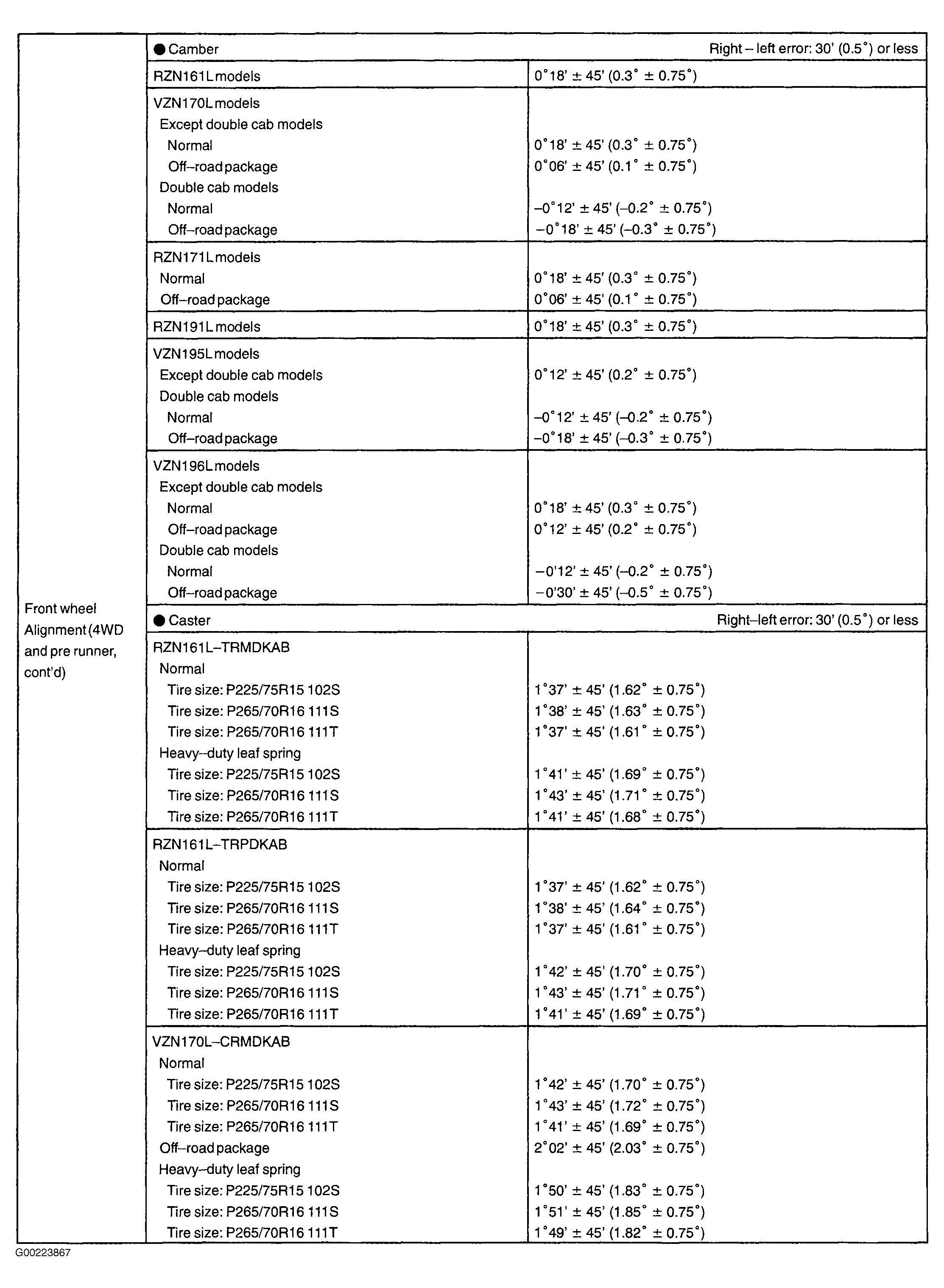

Fig 5: Wheel Alignment Specifications (Tacoma - 5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

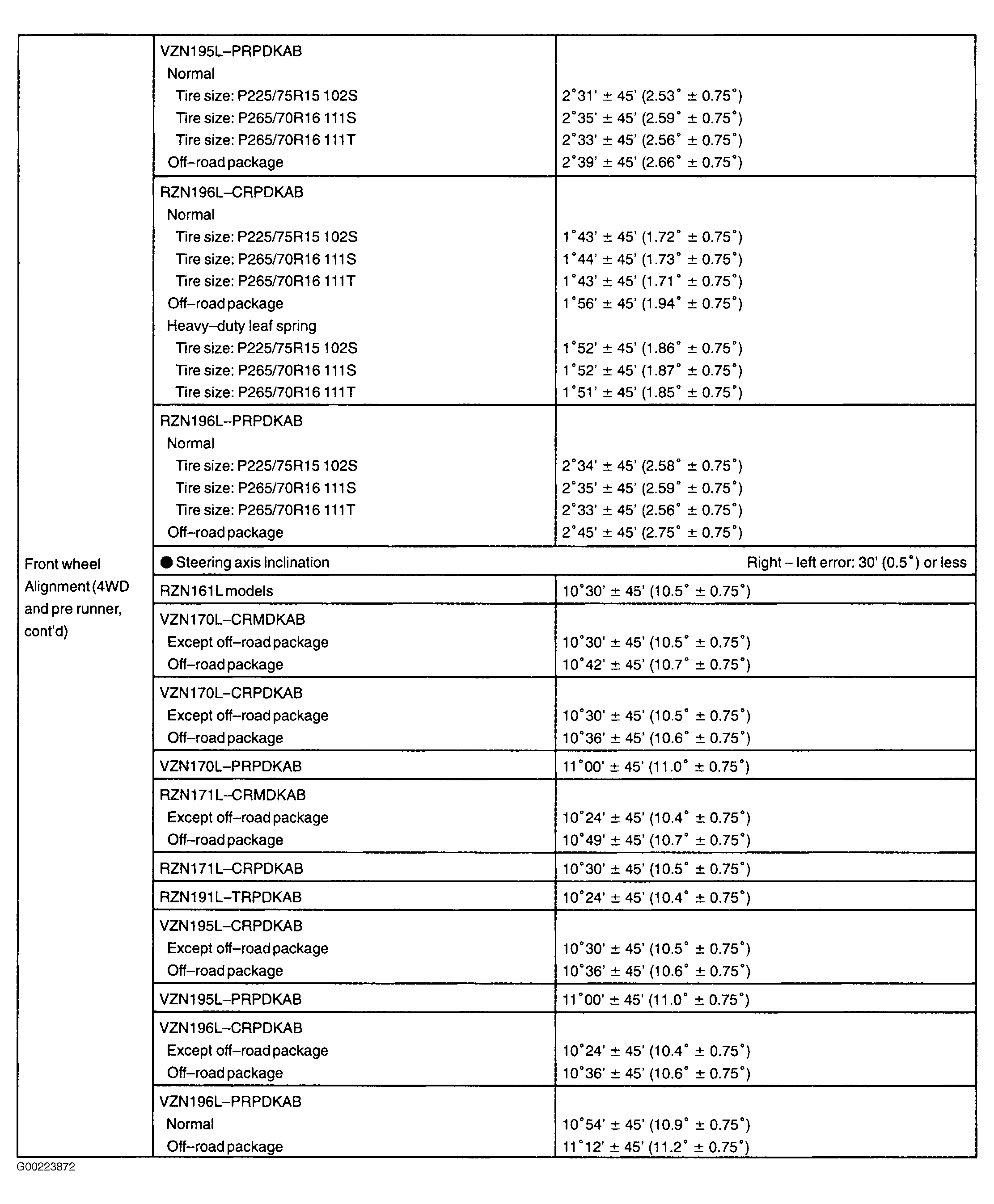

Fig 6: Wheel Alignment Specifications (Tacoma - 6 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

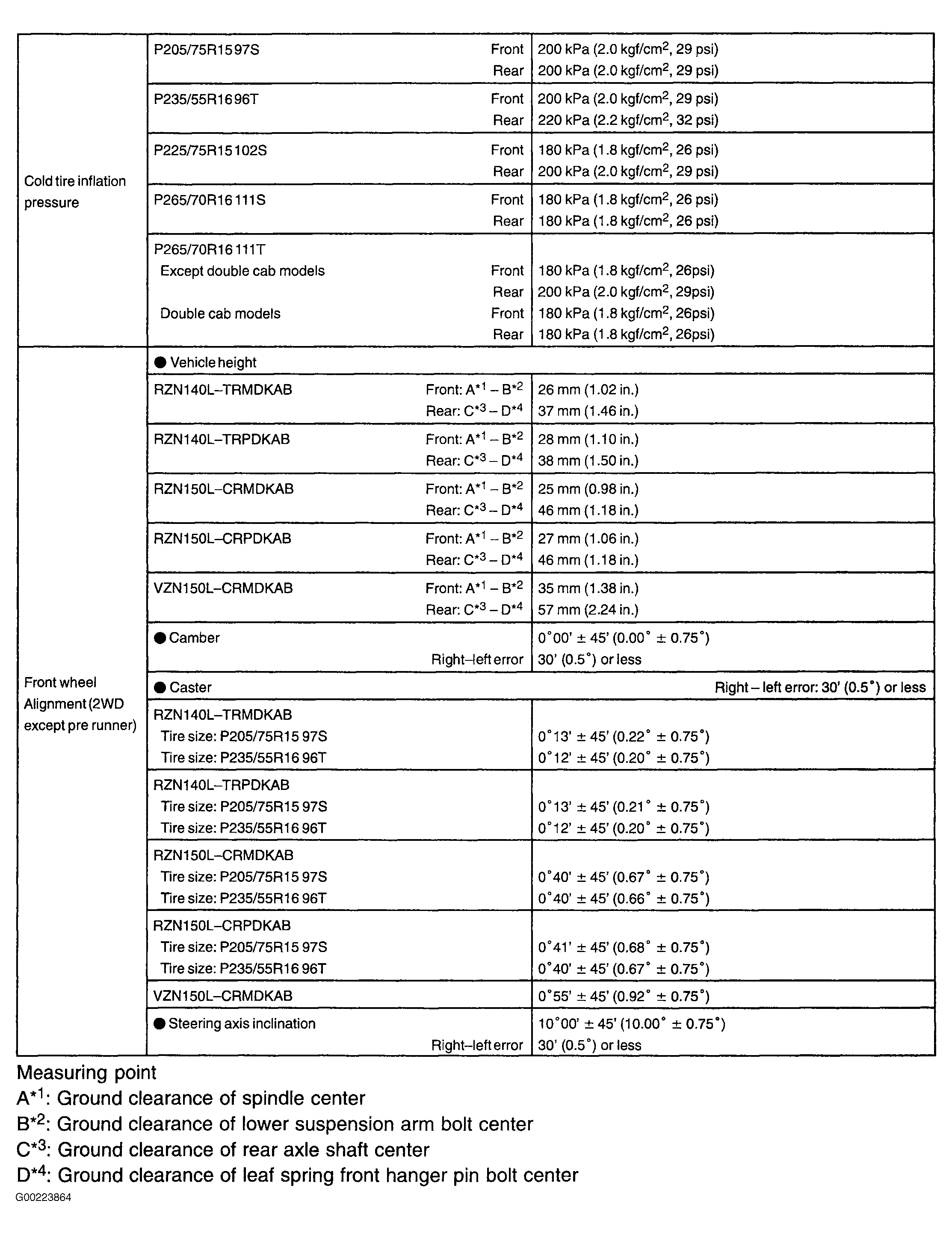

Fig 7: Wheel Alignment Specifications (Tacoma - 7 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

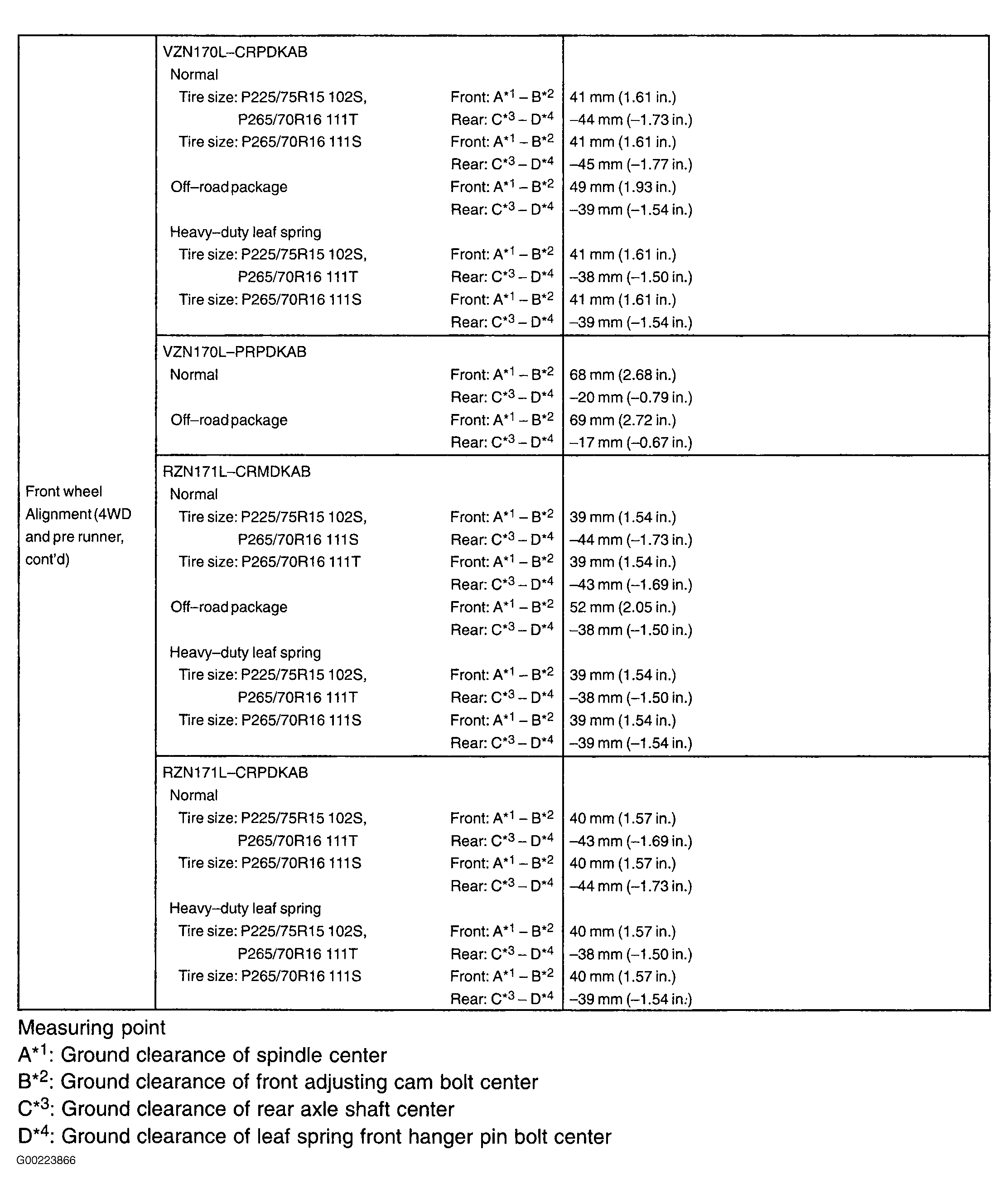

Fig 8: Wheel Alignment Specifications (Tacoma - 8 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
