Power Mirror Control System: Inspection

INSPECT OUTER MIRROR SWITCH ASSY

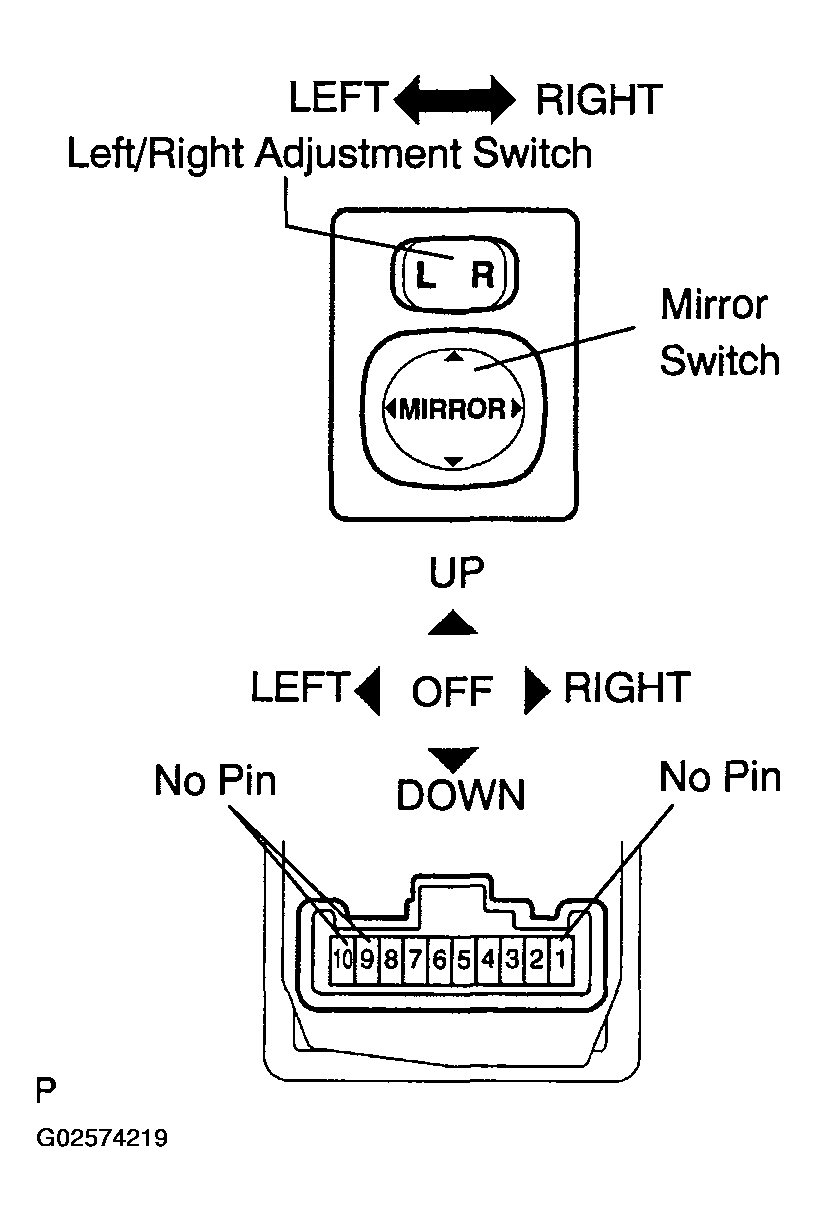

Fig 1: Inspecting Outer Mirror Switch Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. L side of left/right adjustment switch:
  Inspect the mirror switch continuity.

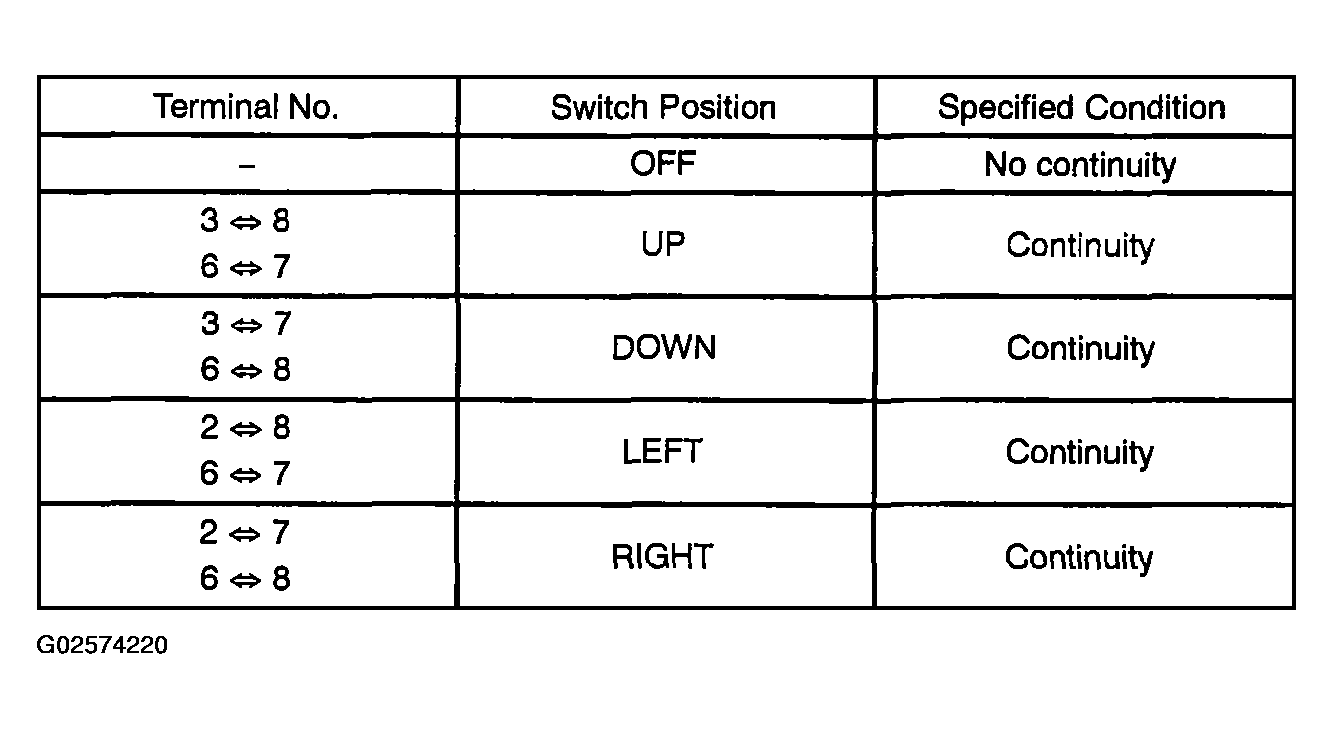

  Fig 2: Standard (Left side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the switch assy.
2. R side of left/right adjustment switch:
  Inspect the mirror switch continuity.

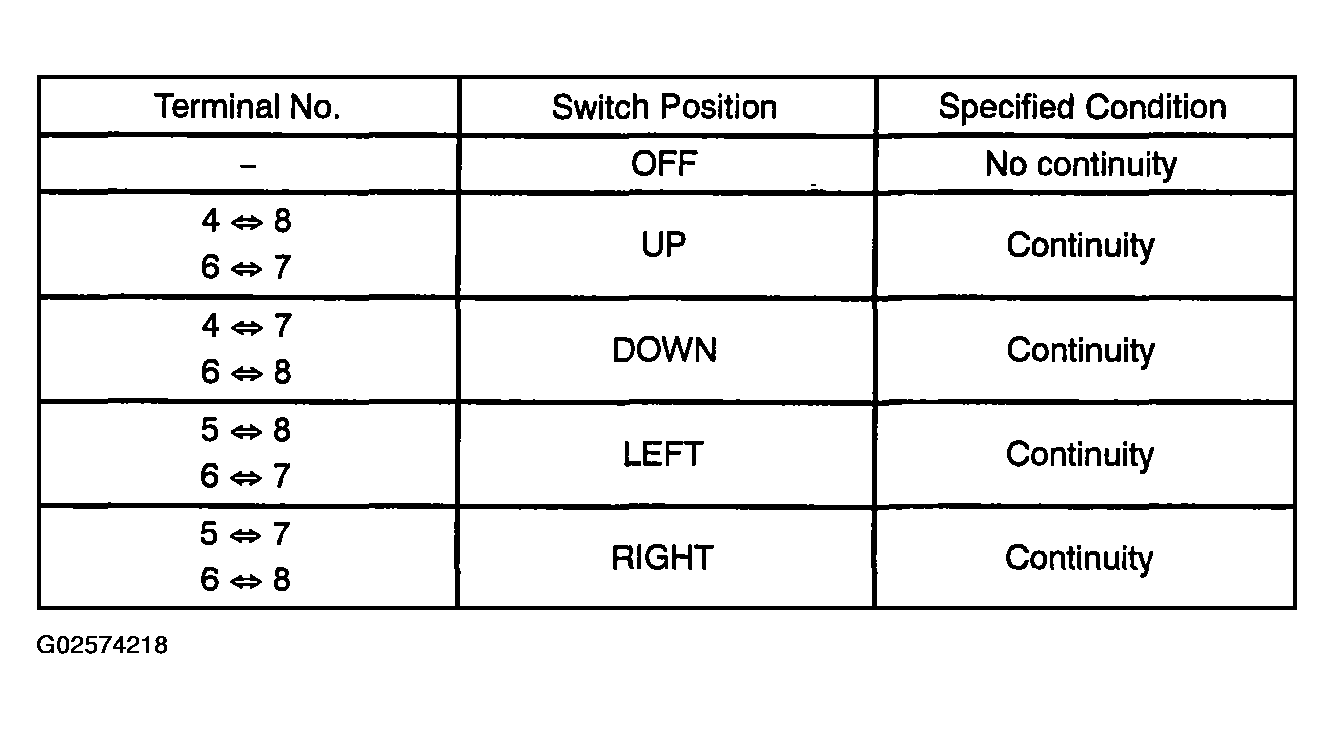

Fig 3: Standard (Right side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the switch assy.
INSPECT OUTER REAR VIEW MIRROR ASSY LH
1. Disconnect the mirror connector.
2. Apply battery voltage and inspect operation of the mirror face, as shown in the table and illustration.

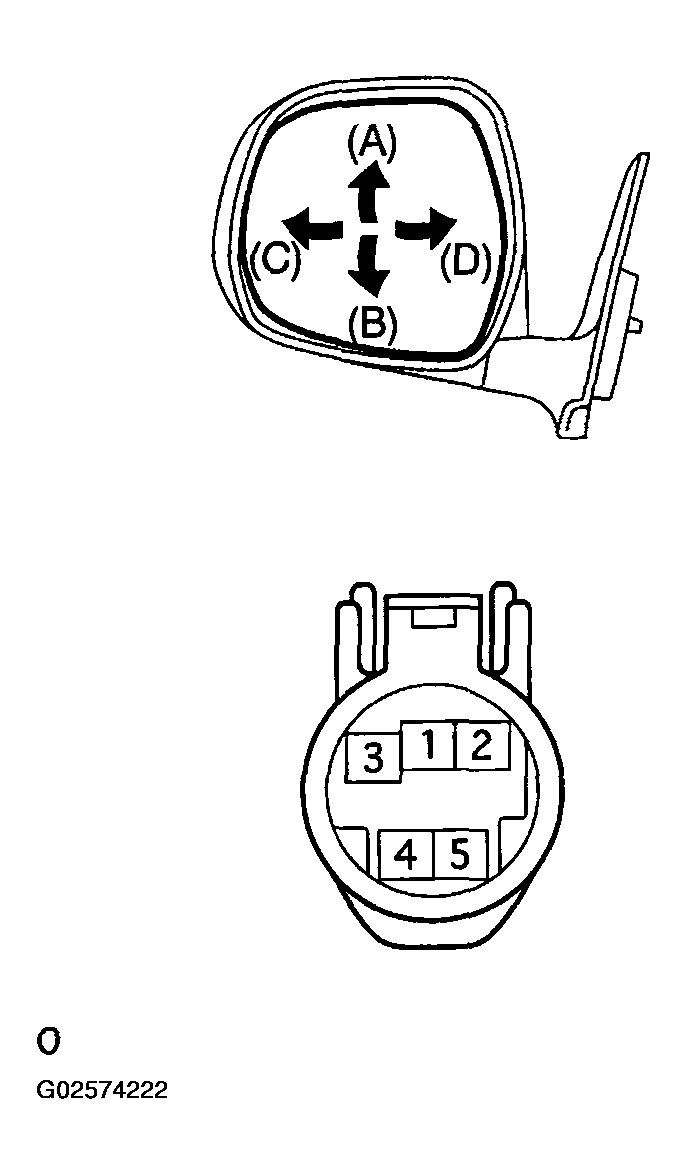

Fig 4: Inspecting Outer Rear View Mirror Assy LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

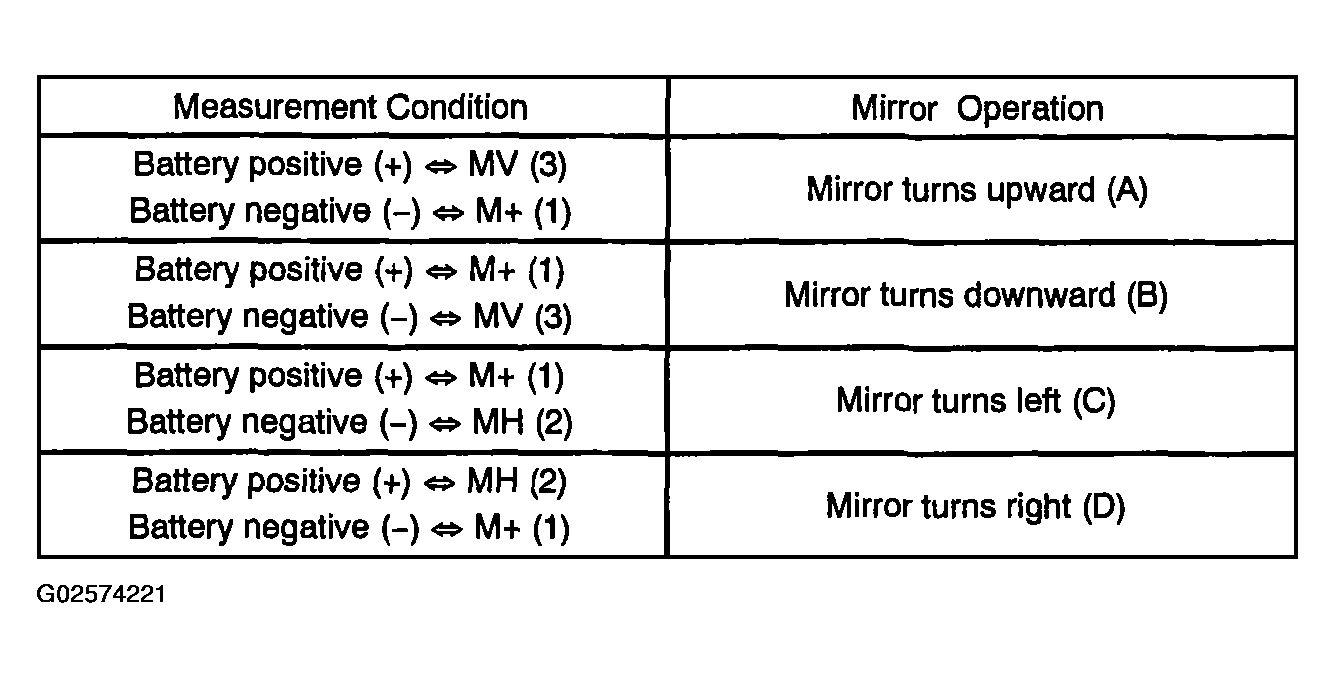

Fig 5: Standard (LH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the mirror assy.
INSPECT OUTER REAR VIEW MIRROR ASSY RH
1. Disconnect the mirror connector.
2. Apply battery voltage and inspect operation of the mirror face, as shown in the table and illustration.

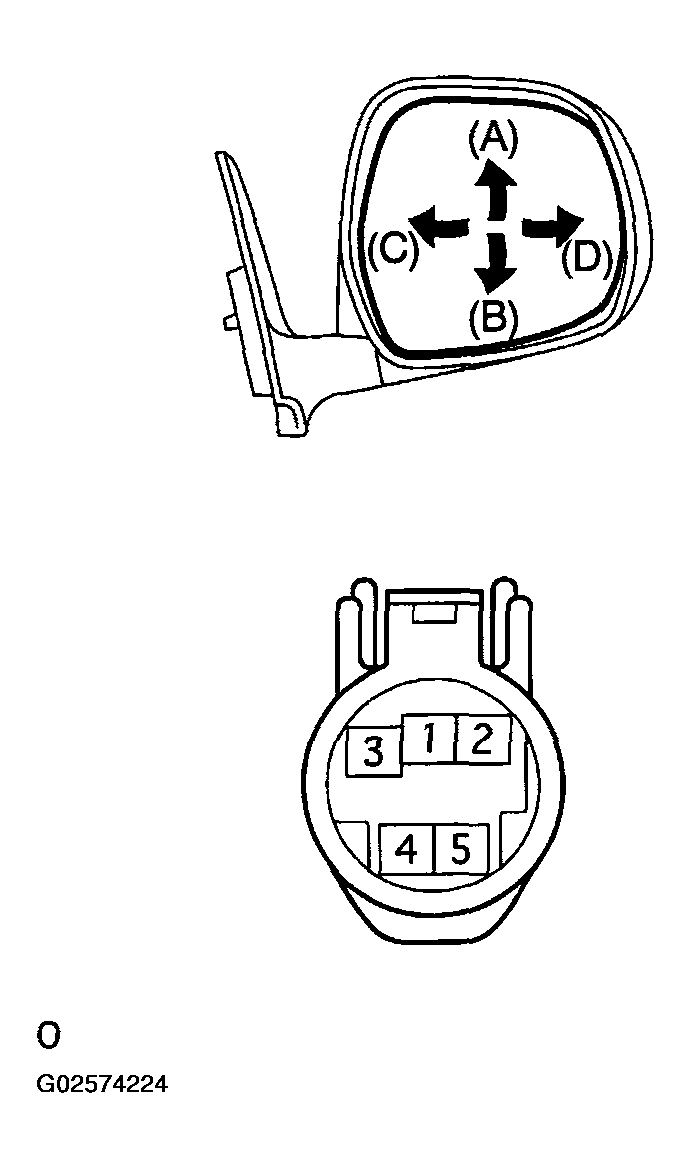

Fig 6: Inspecting Outer Rear View Mirror Assy RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

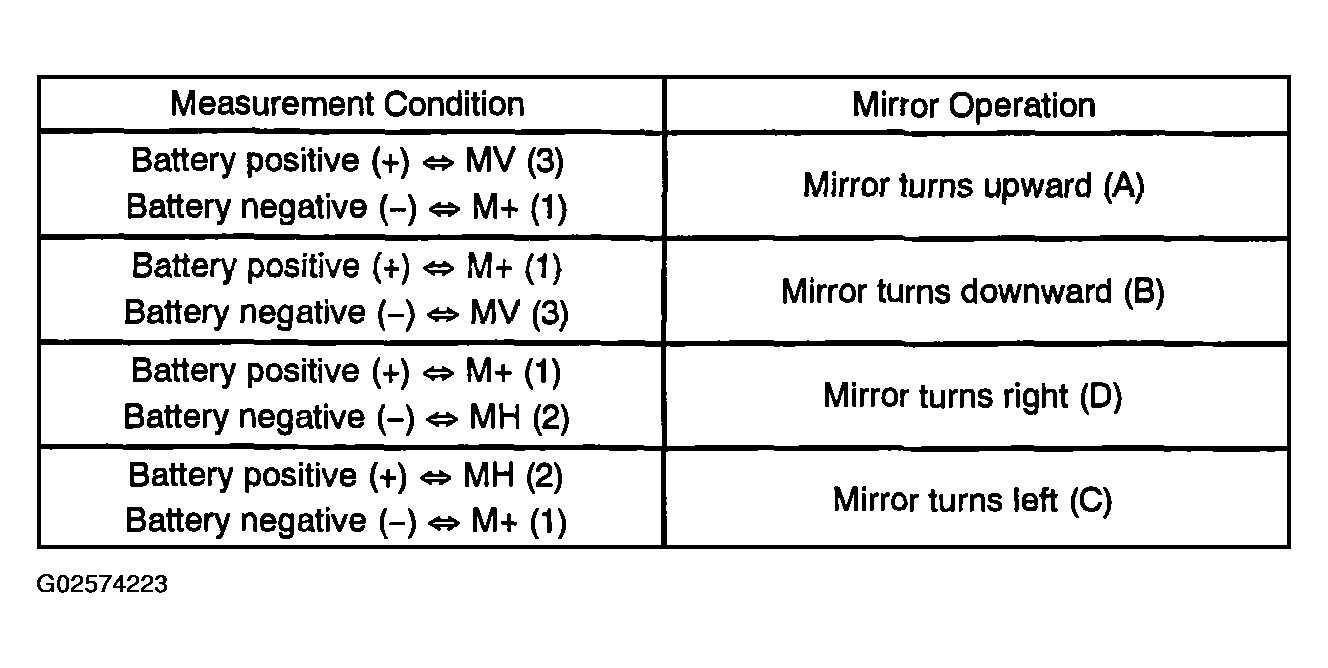

Fig 7: Standard (RH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the mirror assy.
