Windshield Glass: Components

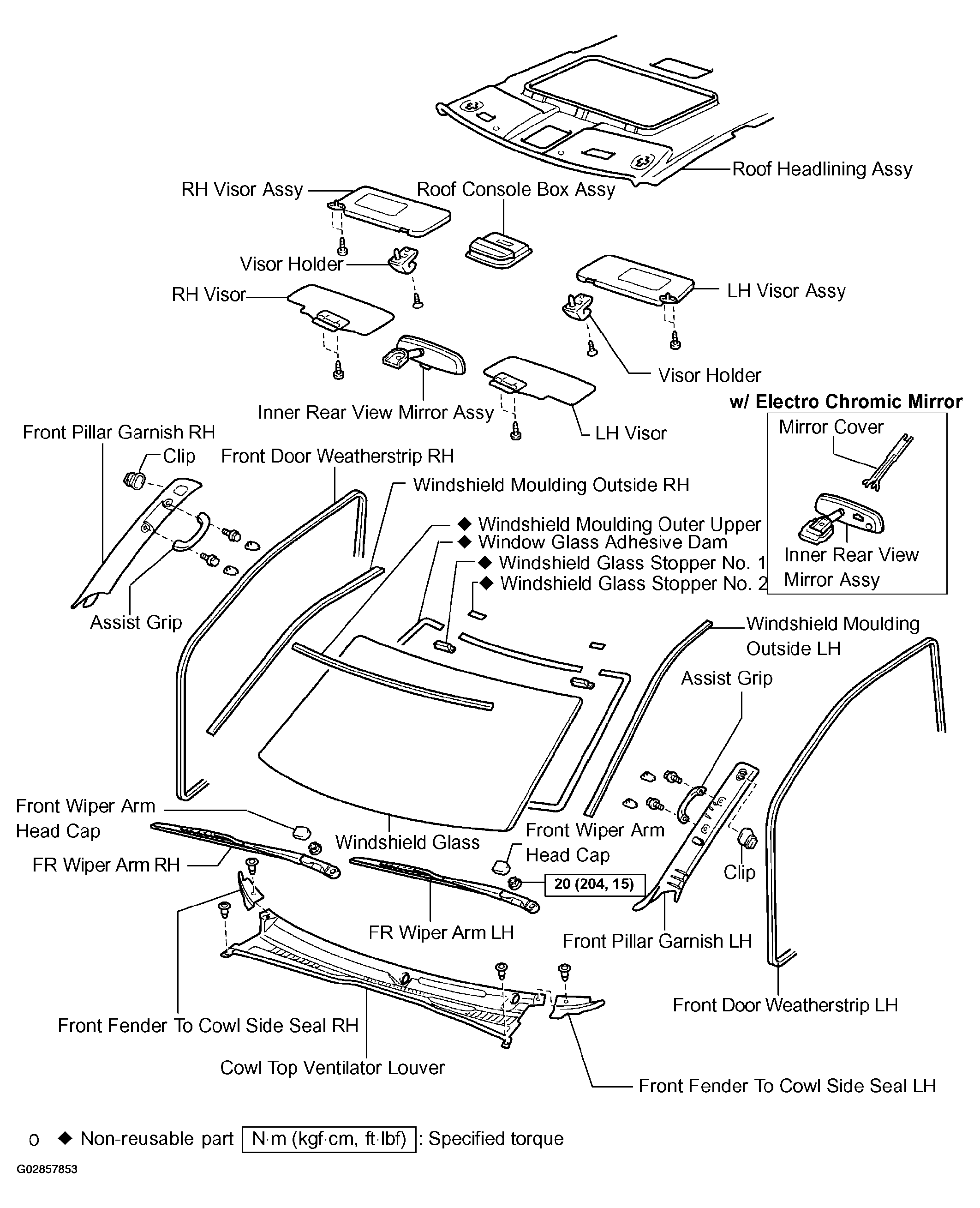

Fig 1: Exploded View Of Windshield Glass Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
