Transmission Control Cable ASSY: Replacement

  1. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY
  2. REMOVE CONSOLE PANEL SUB-ASSY UPPER
  3. REMOVE CONSOLE UPPER PANEL GARNISH NO.1
  4. REMOVE CONSOLE UPPER PANEL GARNISH NO.2
  5. REMOVE CONSOLE BOX ASSY REAR
  6. REMOVE TRANSMISSION CONTROL CABLE ASSY
    1. Disconnect the transmission control cable assy from shift lever assy.
    2. Remove the lock plate and disconnect the transmission control cable.

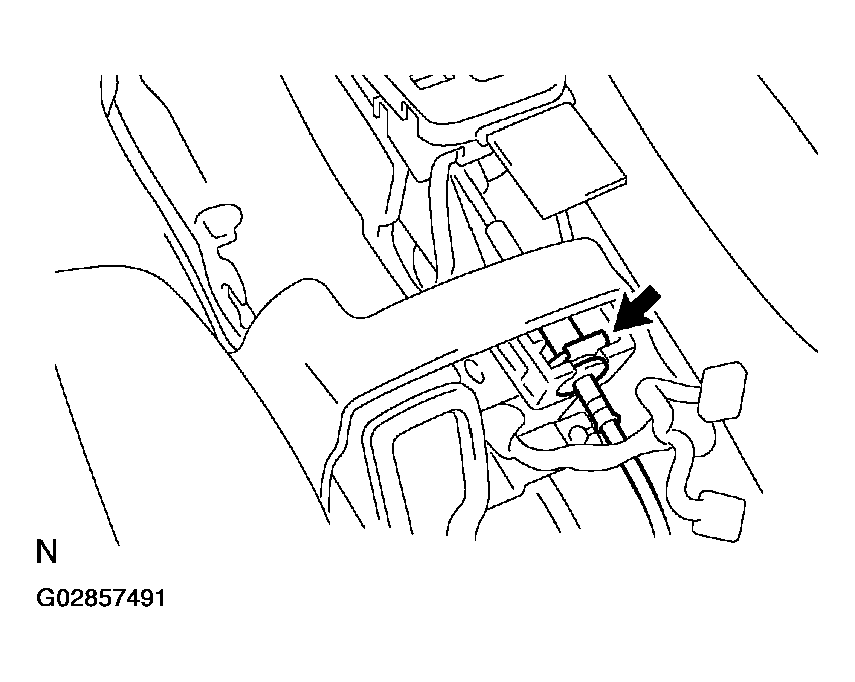

      Fig 1: Disconnecting Transmission Control Cable
      G02857491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and disconnect the transmission control cable assy from body.
      Fig 2: Disconnecting Transmission Control Cable Assy From Body
      G02857492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 nuts and disconnect the transmission control cable assy from body.
      Fig 3: Removing Nuts
      G02857493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the lock plate and transmission control cable bracket.
    6. Remove the nut and transmission control cable assy.

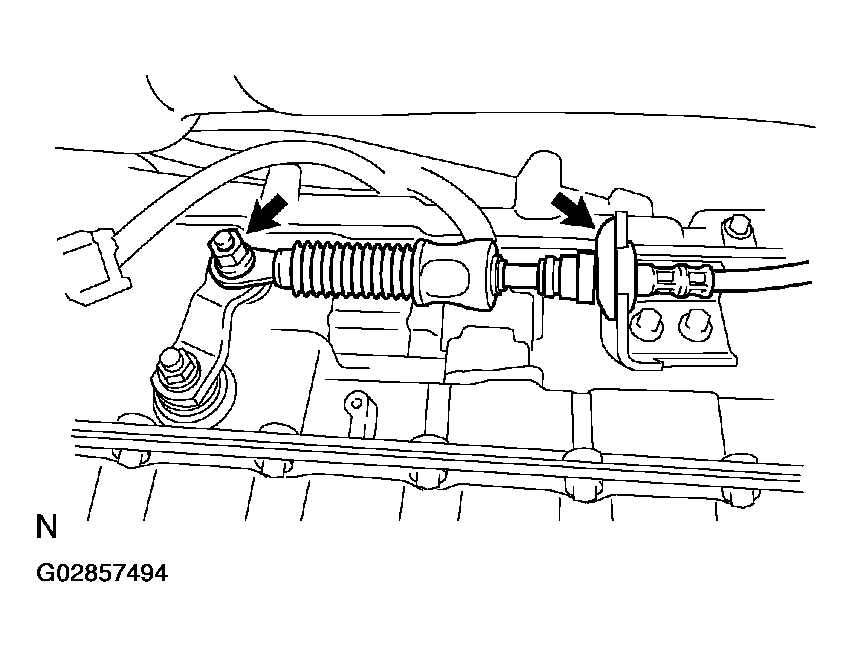

      Fig 4: Removing Lock Plate And Transmission Control Cable Bracket
      G02857494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL TRANSMISSION CONTROL CABLE ASSY
    1. Install the transmission control cable assy with the nut.

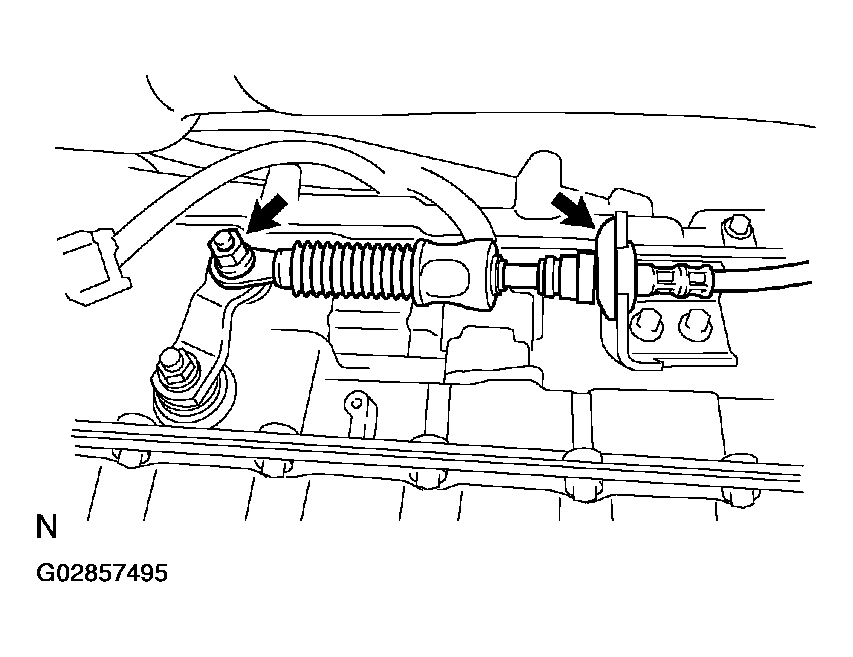

      Fig 5: Installing Transmission Control Cable Bracket And Lock Plate
      G02857495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 12 N.m (122 kgf.cm, 9ft.lbf)

    2. Install the transmission control cable bracket and lock plate.
    3. Connect the transmission control cable with the 2 nuts to body.
      Fig 6: Installing Nuts
      G02857496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the transmission control cable with the 2 bolts to body.
      Fig 7: Connecting Transmission Control Cable With Bolts To Body
      G02857497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the transmission control cable with the lock plate to floor shift assy.
    6. Install the transmission control cable to floor shift assy.
      Fig 8: Installing Transmission Control Cable
      G02857498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL CONSOLE BOX ASSY REAR
  9. INSTALL CONSOLE UPPER PANEL GARNISH NO.2
  10. INSTALL CONSOLE UPPER PANEL GARNISH NO.1
  11. INSTALL CONSOLE PANEL SUB-ASSY UPPER
  12. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSY
