Front Door: Components

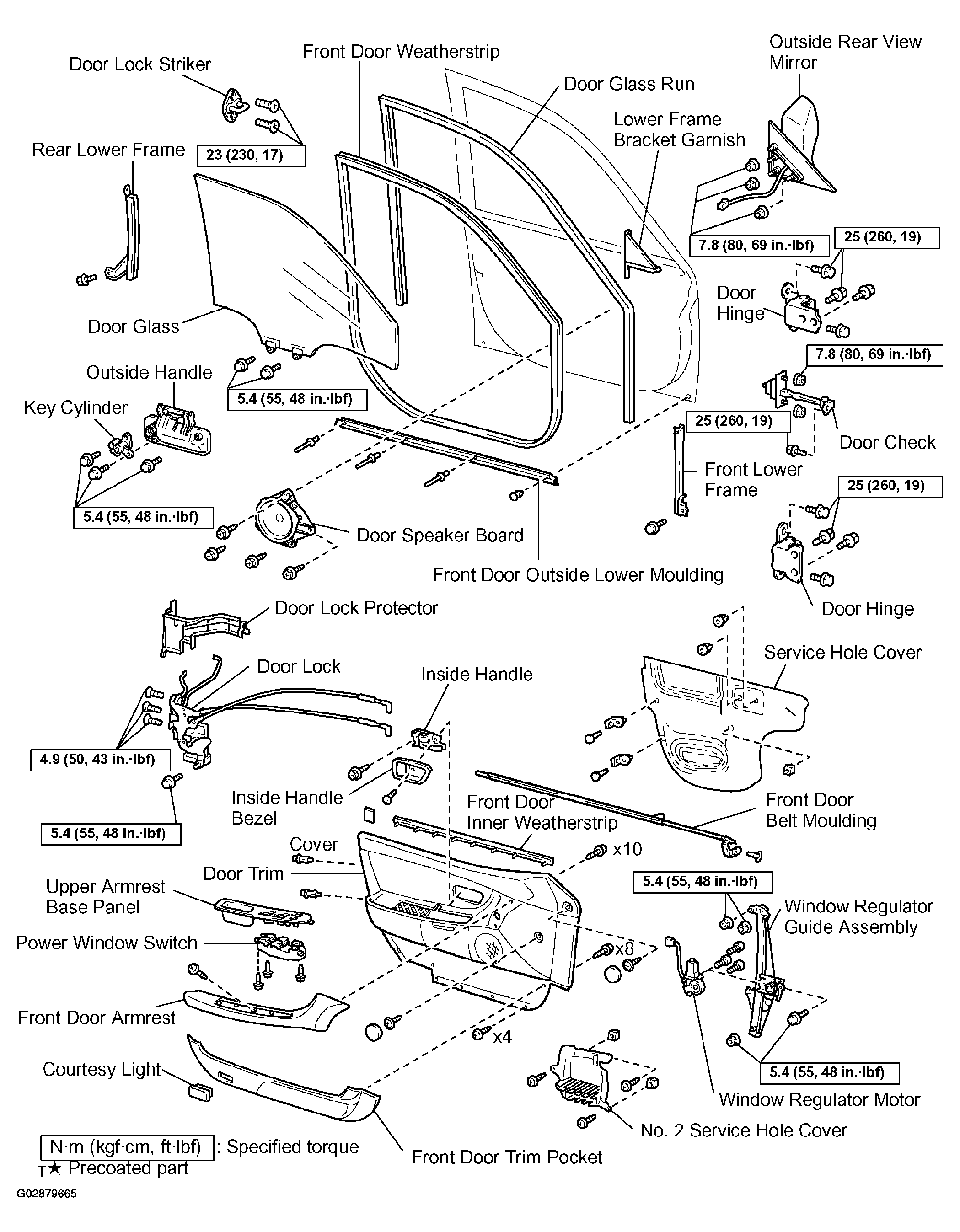

Fig 1: Identifying Front Door Components
G02879665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
