Power Mirror Control System:

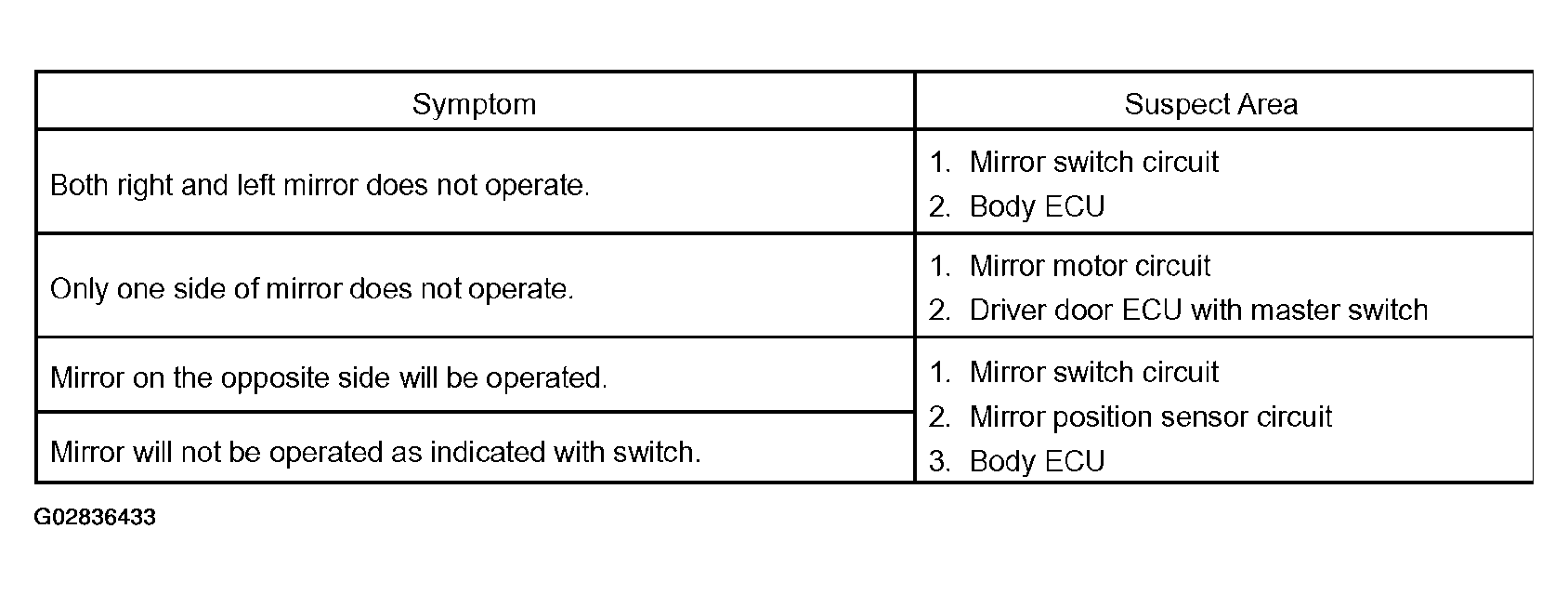

Fig 1: Power Mirror Control System - Problem Symptoms Chart
G02836433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
