Power Window Control System:

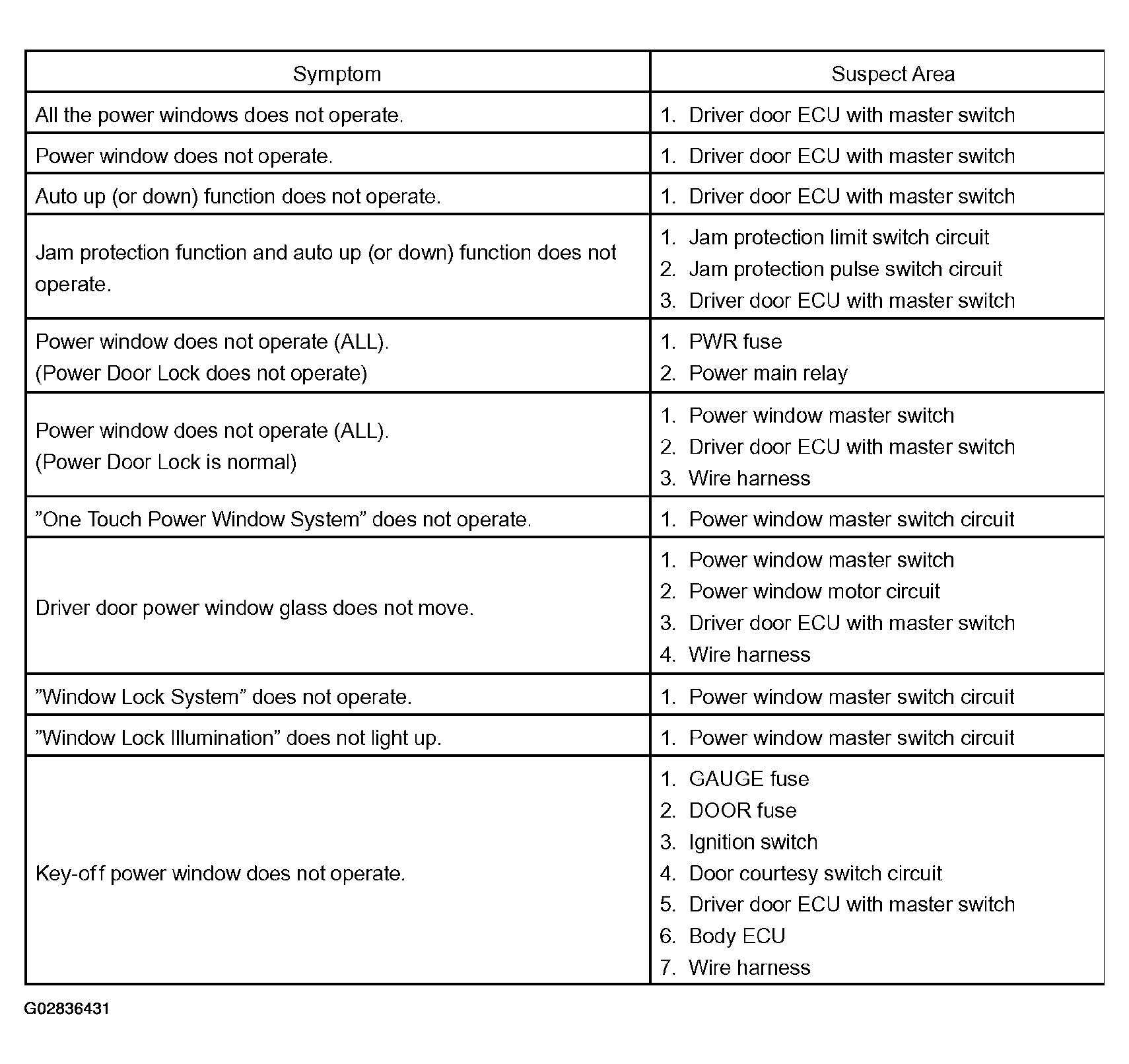

Fig 1: Power Window Control System - Problem Symptoms Chart
G02836431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
