Parts Layout And Schematic Drawing: Location

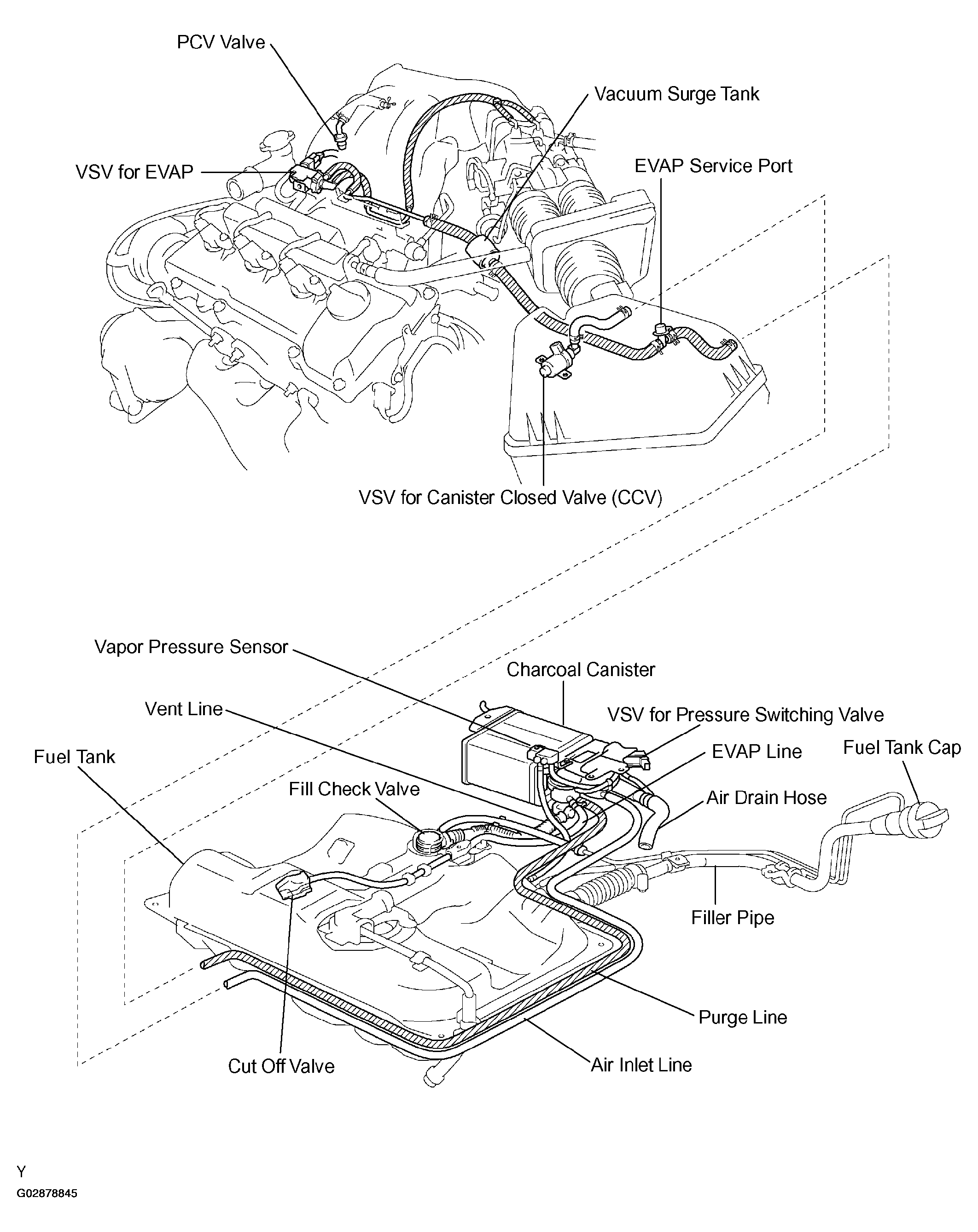

Fig 1: Identifying Emission Control System Parts Locations
G02878845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
