Section 363 (Power Door Lock Control System): Adjustment

CHANGE MODE FOR AUTO DOOR LOCKING AND UNLOCKING

Change the mode from the current mode to the next mode in the below sequence when the following conditions are met:

1. The shift position is "P".
2. All doors are closed.
3. Ignition switch is turned to ON from OFF.
4. Within 5 seconds after completion of step (3), press the door lock manual switch to LOCK from OFF and then keep pressing the switch for more than 5 seconds.

Sequence of mode change:

Fig 1: Identifying Mode Change Sequence

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

• 1st MODE .... Auto door locking function:

  All doors will lock automatically when the shift lever is moved out of "P" position while all doors are closed and the ignition switch is in the "ON" position. This auto door locking function occurs each time the shifter is moved out of "P" position.

• 2nd MODE .... No function:
• 3rd MODE .... Auto door locking and unlocking functions linked to the shift lever:

  All doors will lock automatically when the shift lever is moved out of "P" position while all doors are closed and the ignition switch is in the "ON" position. And all doors will unlock automatically when the shift lever is moved into "P" position while the ignition switch is in the "ON" position.

• 4th MODE .... Auto door locking and unlocking functions linked to the ignition switch:

  All doors will lock automatically when the shift lever is moved out of "P" position while all doors are closed and the ignition switch is in the "ON" positing. And all doors will unlock automatically when the ignition switch is turned to the "OFF" position.

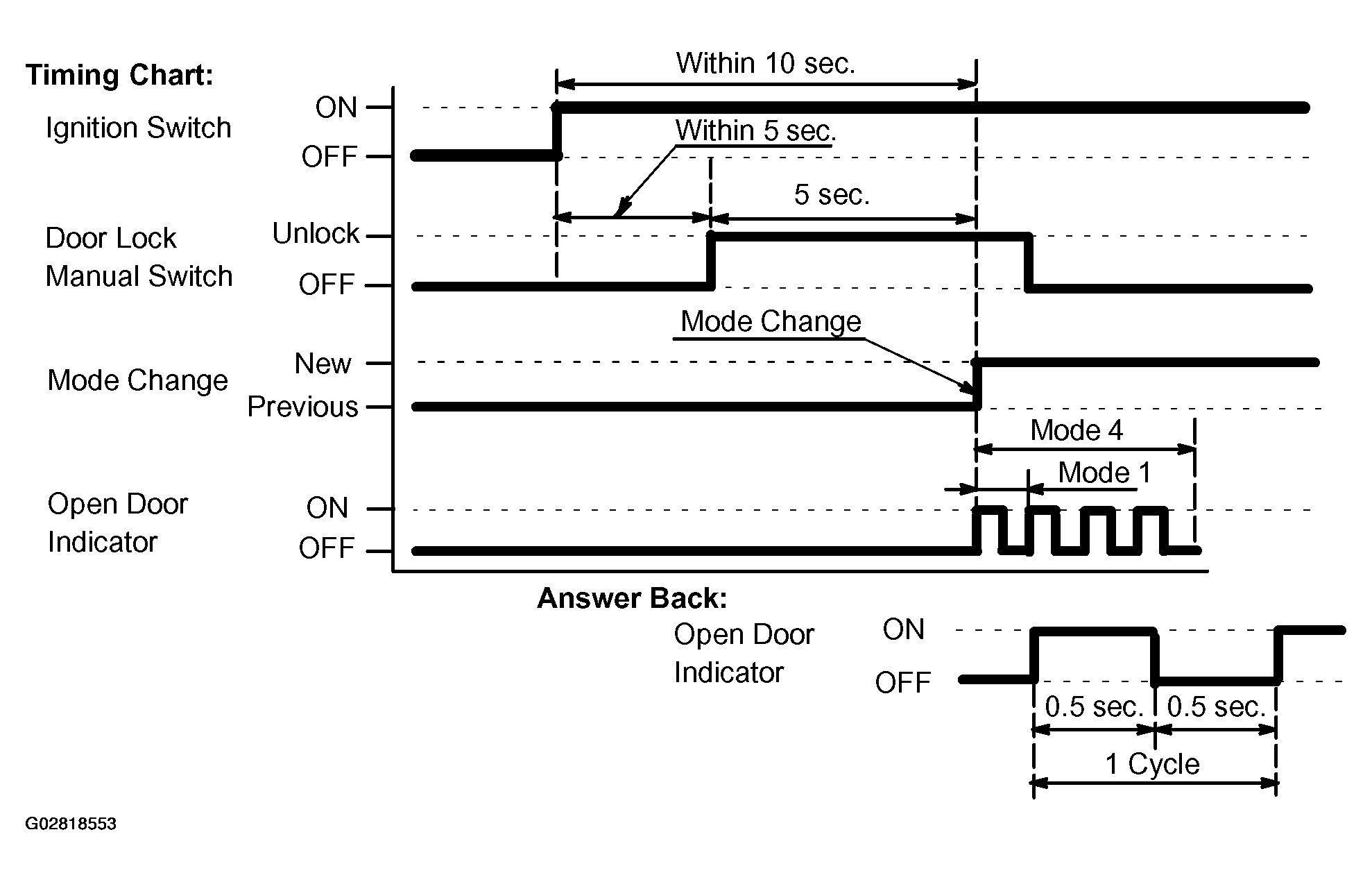

Fig 2: Identifying Mode Change Timing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
