Automatic Transmission System (On-Vehicle Service): Operation

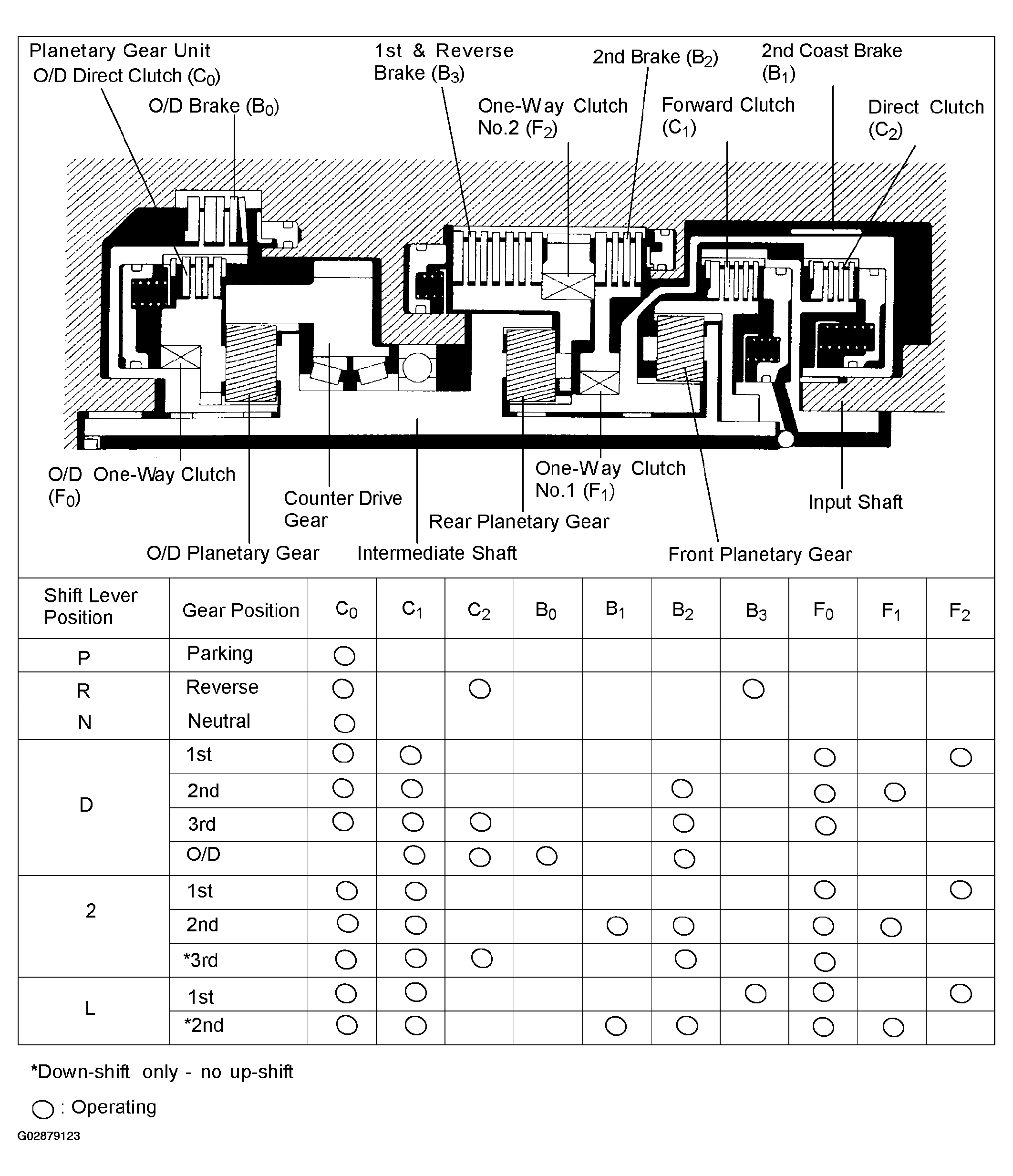

Fig 1: Identifying Automatic Transaxle System Operation
G02879123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
