Fuel Tank And Line: Components

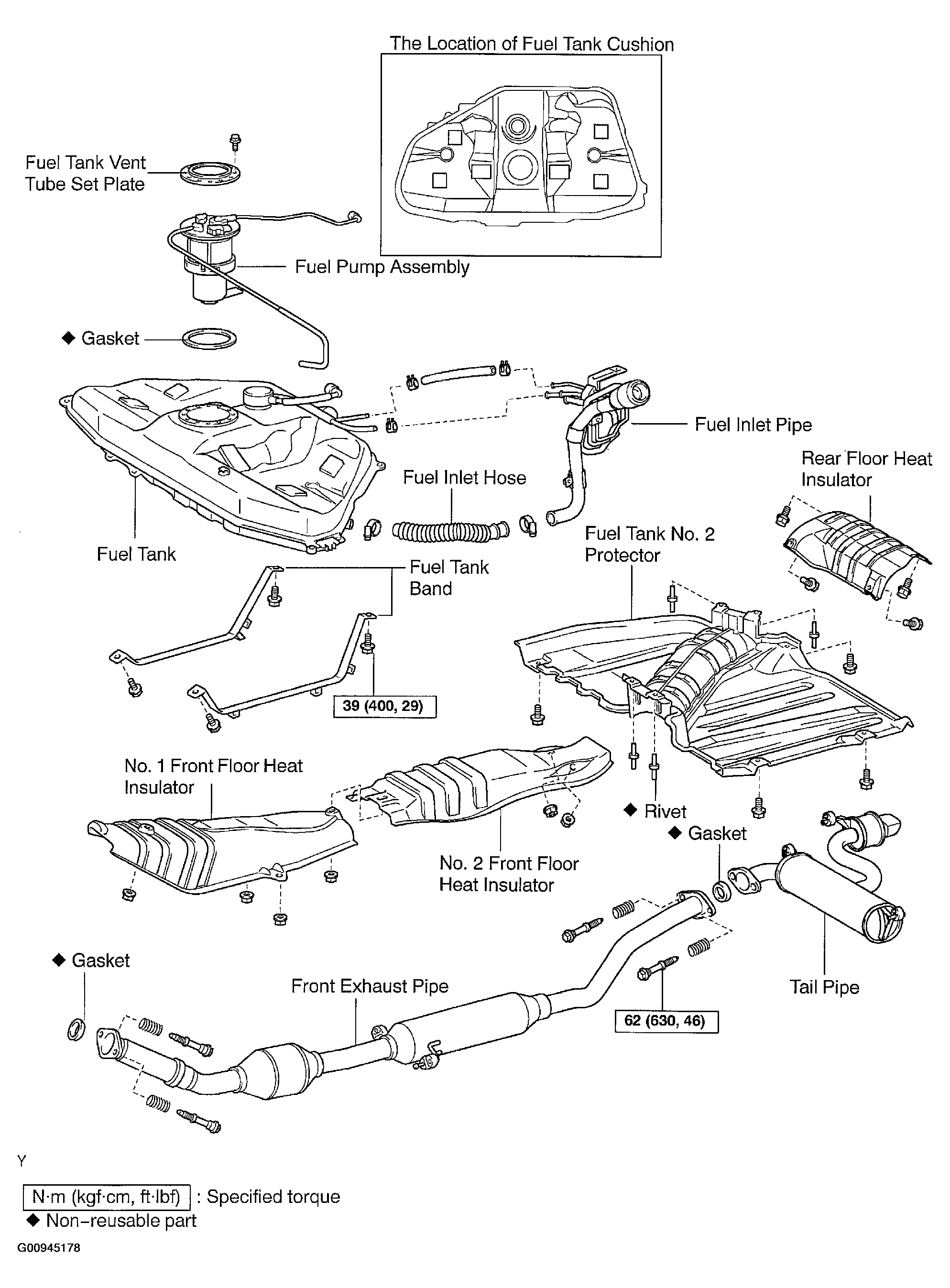

Fig 1: Fuel Tank & Line Components
G00945178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
