Idle Air Control (IAC) Valve: Components

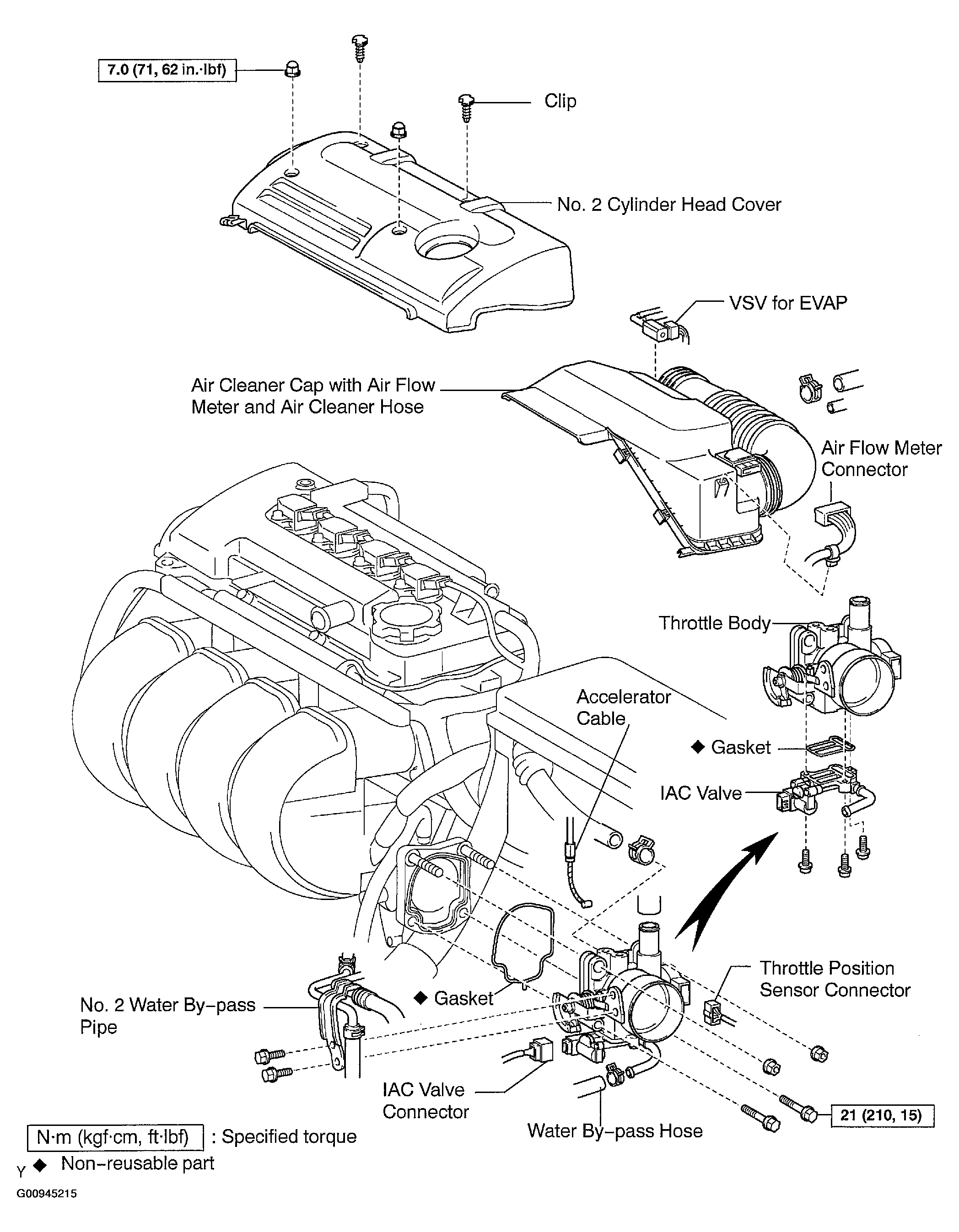

Fig 1: Idle Air Control (IAC) Valve Components
G00945215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
