Floor Shift Cable Transmission Control Select: Replacement

WARNING: This page is about a different variant/trim than selected.

HINT:

COMPONENTS: See COMPONENTS

REMOVE AIR CONDITIONER UNIT ASSY (See OVERHAUL )
HINT:

Refer to the instructions for removal of the air conditioner unit assy.
SEPARATE AIR BAG SENSOR ASSY CENTER
1. Remove the 3 bolts, separate the airbag sensor assy center.
REMOVE EXHAUST PIPE ASSY (See REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY )
REMOVE FRONT FLOOR HEAT INSULATOR NO.1 (a) Remove the 3 nuts and heat insulator No. 1.
1. Remove the 3 nuts and heat insulator No. 1.
REMOVE FLOOR SHIFT CABLE TRANSMISSION CONTROL SELECT
1. Remove the clip and washer, separate the top of the select cable from the transaxle.
2. Remove the clip, separate the select cable from the control cable bracket.

  Fig 1: Removing Clip And Washer And Separate Top Of Select Cable From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 nuts and clamp.

  Fig 2: Removing Nuts And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a screwdriver, release the cable outer spring.
5. Turn the lock, separate the select cable from the shift lever retainer.

  Fig 3: Removing Cable Outer Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Separate the end of the select cable from the shift lever assy.

  Fig 4: Removing End Of Select Cable From Shift Lever Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Remove the 2 bolts and retainer from the floor.
8. Pull out the control cable assy from the floor.

  Fig 5: Removing Control Cable Assy From Floor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Remove the retainer from the grommet.
10. Remove the select cable from the grommet.

  Fig 6: Removing Retainer From Grommet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FLOOR SHIFT CABLE TRANSMISSION CONTROL SELECT
1. Install the select cable to the grommet.
2. Install the retainer to the grommet.
  NOTE: Fit 4 projections of the grommet into 4 holes of the retainer.

  Fig 7: Installing Retainer To Grommet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the control cable assy with the 2 bolts.
  Torque: 5.0 N.m (51 kgf.cm, 44 in..lbf)

  Fig 8: Installing Control Cable Assy With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the end of the select cable to the shift lever assy.

  Fig 9: Connecting End Of Select Cable To Shift Lever Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the select cable to the retainer of shift lever assy, turn the lock.
  NOTE: The projecting part of the lock should face upward when the select cable is installed.
6. Install the cable outer spring to the lock.
  NOTE: Make sure that after installation the cable outer spring is moved to the place shown in the illustration.

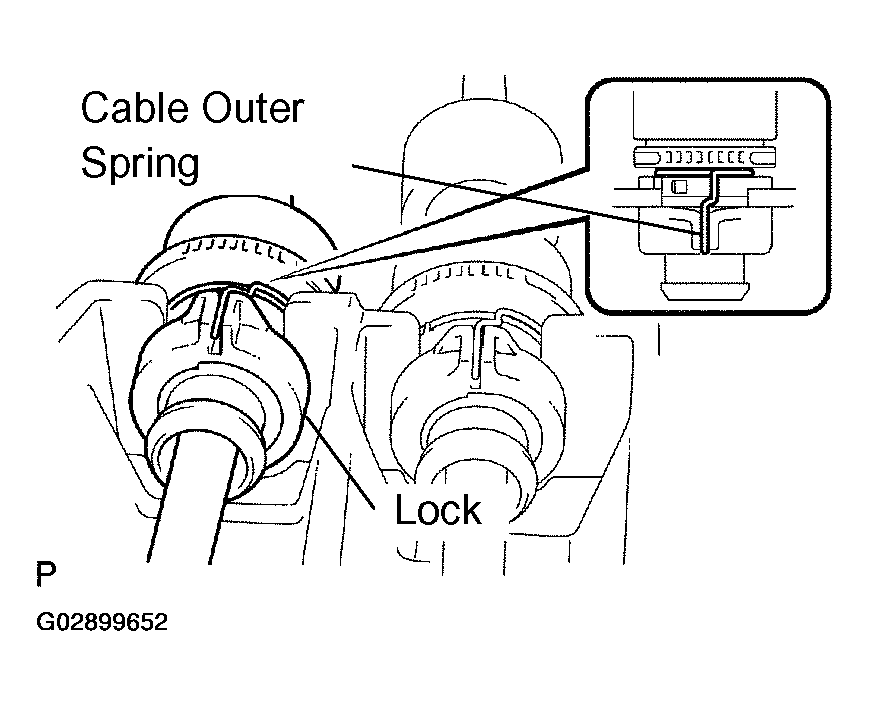

  Fig 10: Installing Cable Outer Spring To Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Install the clamp with the 2 nuts.
  Torque: 5.0 N.m (51 kgf.cm, 44 in..lbf)

  Fig 11: Installing Clamp With Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Connect the select cable to the control cable bracket, install a new clip.
9. Connect the select cable to the transaxle, install the washer and clip.

  Fig 12: Installing Cable To Transaxle, Washer And Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FLOOR HEAT INSULATOR NO.1
1. Install the heat insulator No. 1 with the 3 nuts.
INSTALL EXHAUST PIPE ASSY (See REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY )
CONNECT AIR BAG SENSOR ASSY CENTER
1. Install the airbag sensor assy center with the 3 bolts.
  Torque: 17.5 N.m (178 kgf.cm, 13 ft.lbf)
INSPECT SRS WARNING LIGHT (See SYSTEM OPERATION CHECK )
