Fuel Pump Control Circuit: Wiring Diagram

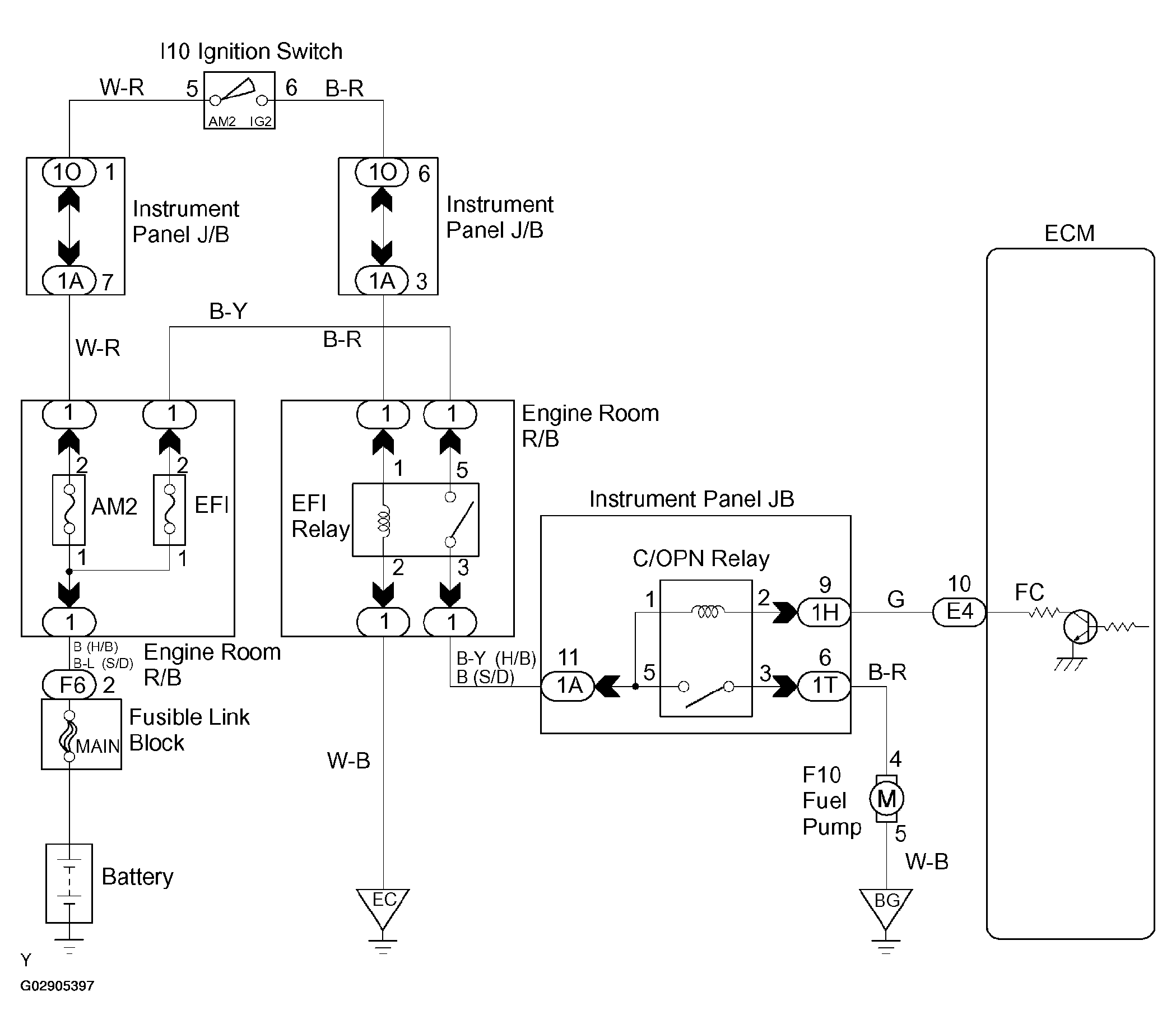

Fig 1: Wiring Diagram
G02905397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
